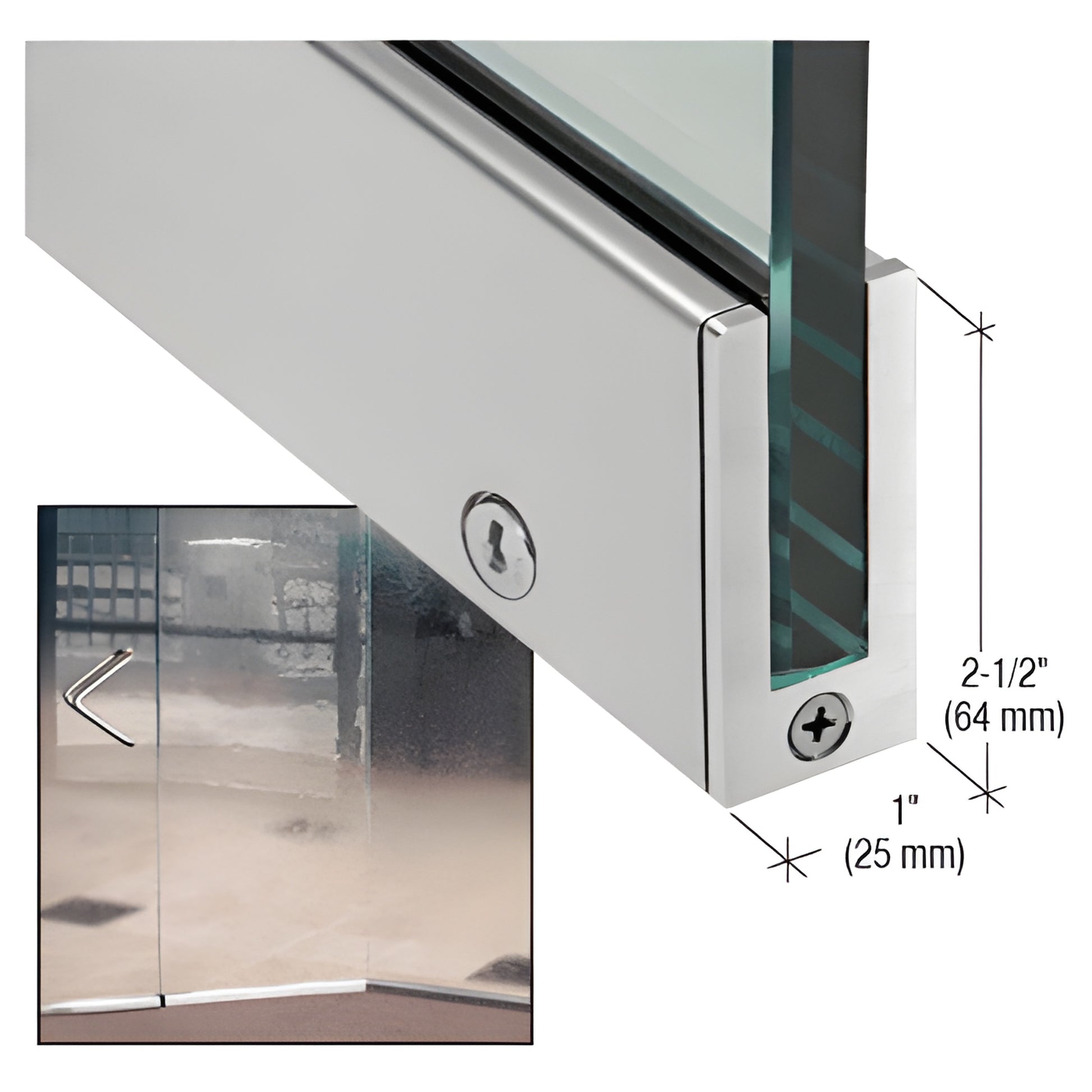

CRL Brushed Stainless 2-1/2" LH Outside Door Rail w/Lock Custom
CRL Brushed Stainless 2-1/2" LH Outside Door Rail w/Lock Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP64BS12CL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Glazing Type
Monolithic Tempered Glass
Height
2-1/2 in. (64 mm)
Includes Lock
7150 Cam Lock
Length
Specify
Maximum Panel Weight
205 lbs. (93 kg)
Maximum Panel Width
42 in. (1067 mm)
Profile
Slender
Width
1 in. (25 mm)
Overview
- For 1/2" (12 mm) monolithic tempered glass
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails — only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails (SKU: SP64BS12CL) are available fabricated to required lengths, with or without locks. Custom finishes and special-order vertical stiles are available for frameless glass doors and other bespoke applications.
NOTE: Not all closers or locking hardware are compatible with these rails. For compatibility details, contact the CRL Technical Sales Department.
Example of handing: Handing is determined by viewing the rail from the exterior. A left hand (LH) rail hinges on the left; the lock unit will be positioned near the right-hand end of the rail when viewed from outside.
Product Warning:
Custom rails are made to your specified size and finish and are non-returnable. Glass fabrication is required for lock installation — see the template. Maximum width for the slender profile door rail system is 42" (1.07 m).
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For specification help, compatible hardware lists, or to place a custom order for SKU SP64BS12CL, contact CRL Sales or request a quote today.
Specifications
CAD Drawings - dwg
