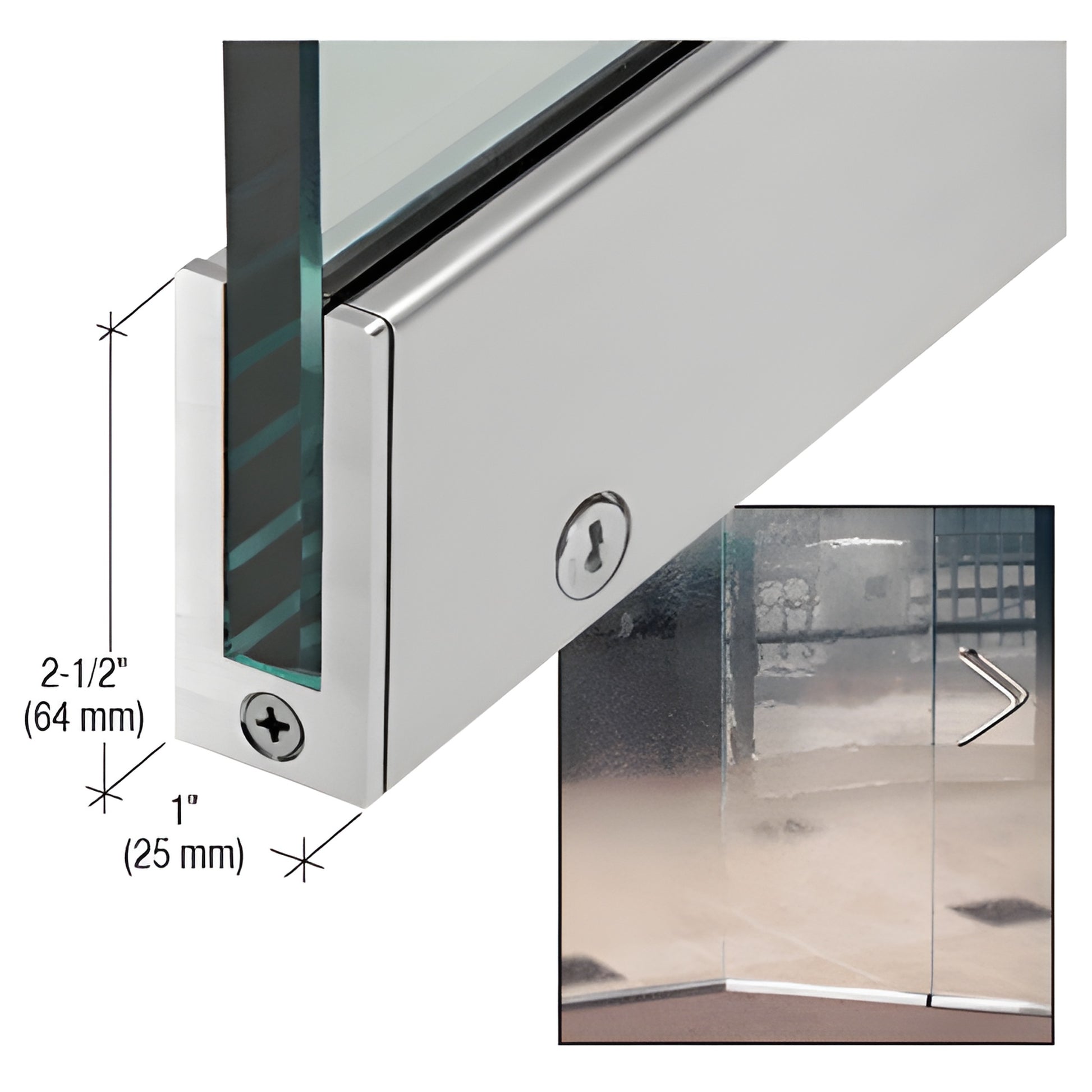

CRL Brushed SS 2.5" Right-Hand Slim Door Rail w/ Lock, Custom
CRL Brushed SS 2.5" Right-Hand Slim Door Rail w/ Lock, Custom
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP64BS12CR
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Glazing Type
Monolithic Tempered Glass
Height
2-1/2 in. (64 mm)
Includes Lock
7150 Cam Lock
Length
Specify
Maximum Panel Weight
205 lbs. (93 kg)
Maximum Panel Width
42 in. (1067 mm)
Profile
Slender
Width
1 in. (25 mm)
Overview
- For 1/2" (12 mm) monolithic tempered glass doors
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails: only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails (SKU: SP64BS12CR) can be fabricated to required lengths with or without locks. Custom finishes and special-order vertical stiles are available. These rails are designed for glass door applications requiring a low-profile, modern stainless-steel rail—ideal for frameless glass storefronts, shower doors, and commercial interior glass doors.
Compatibility: Not all closers or locking hardware are compatible with these slender rails. For compatibility details, contact CRL Technical Sales.
Handing Example: Handing is determined by viewing the rail from the exterior. A left-hand (LH) rail hinges on the left; the lock unit will be positioned near the right-hand end of the rail when viewed from the outside.
Product Warning & Requirements:
- Custom rails are made to your specified size and finish and are not returnable.
- Glass fabrication is required to accommodate a lock—see the template for details.
- Maximum system width: 42" (1.07 m).
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Need help specifying or ordering your slender profile door rails for 1/2" tempered glass? Contact CRL sales or request a quote today.
