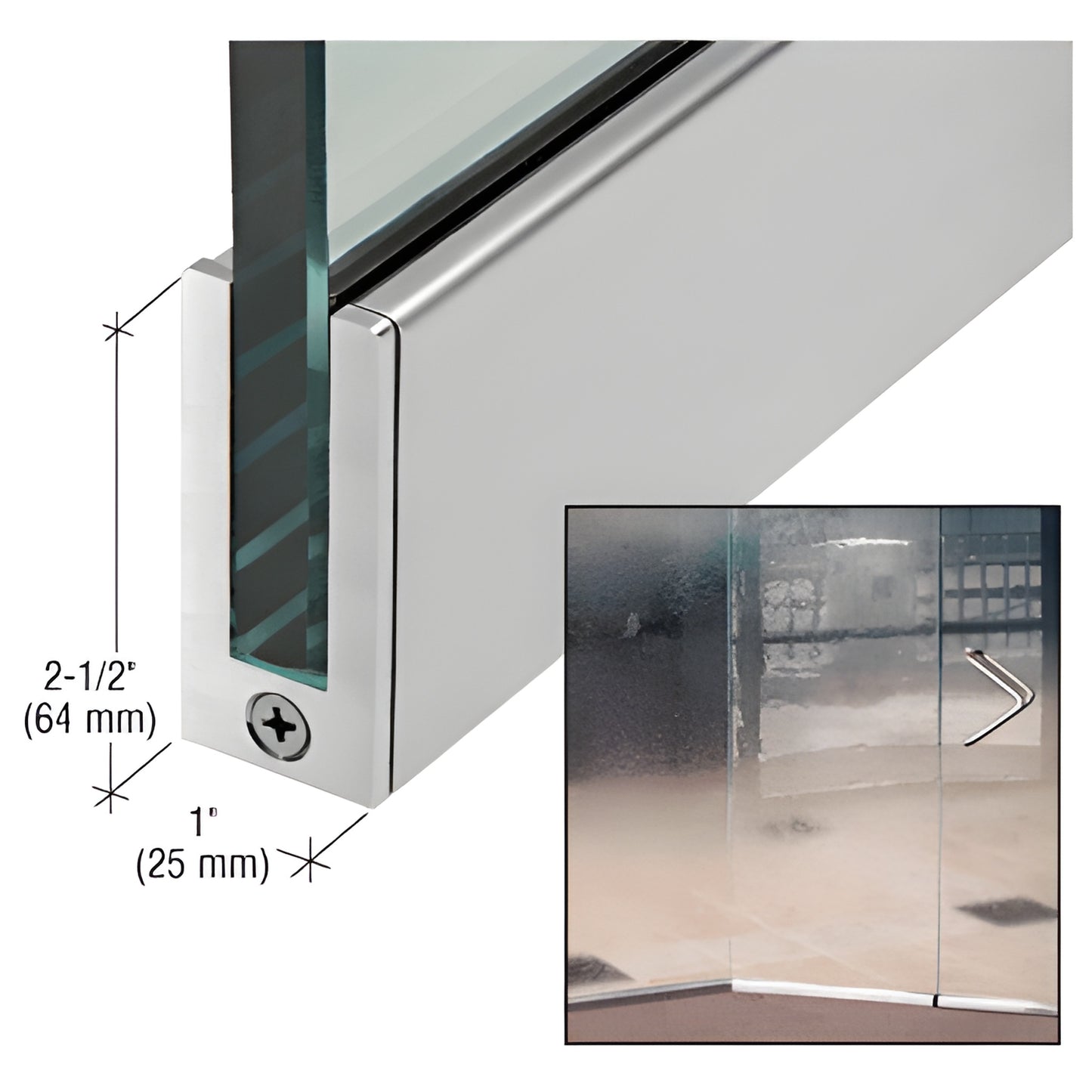

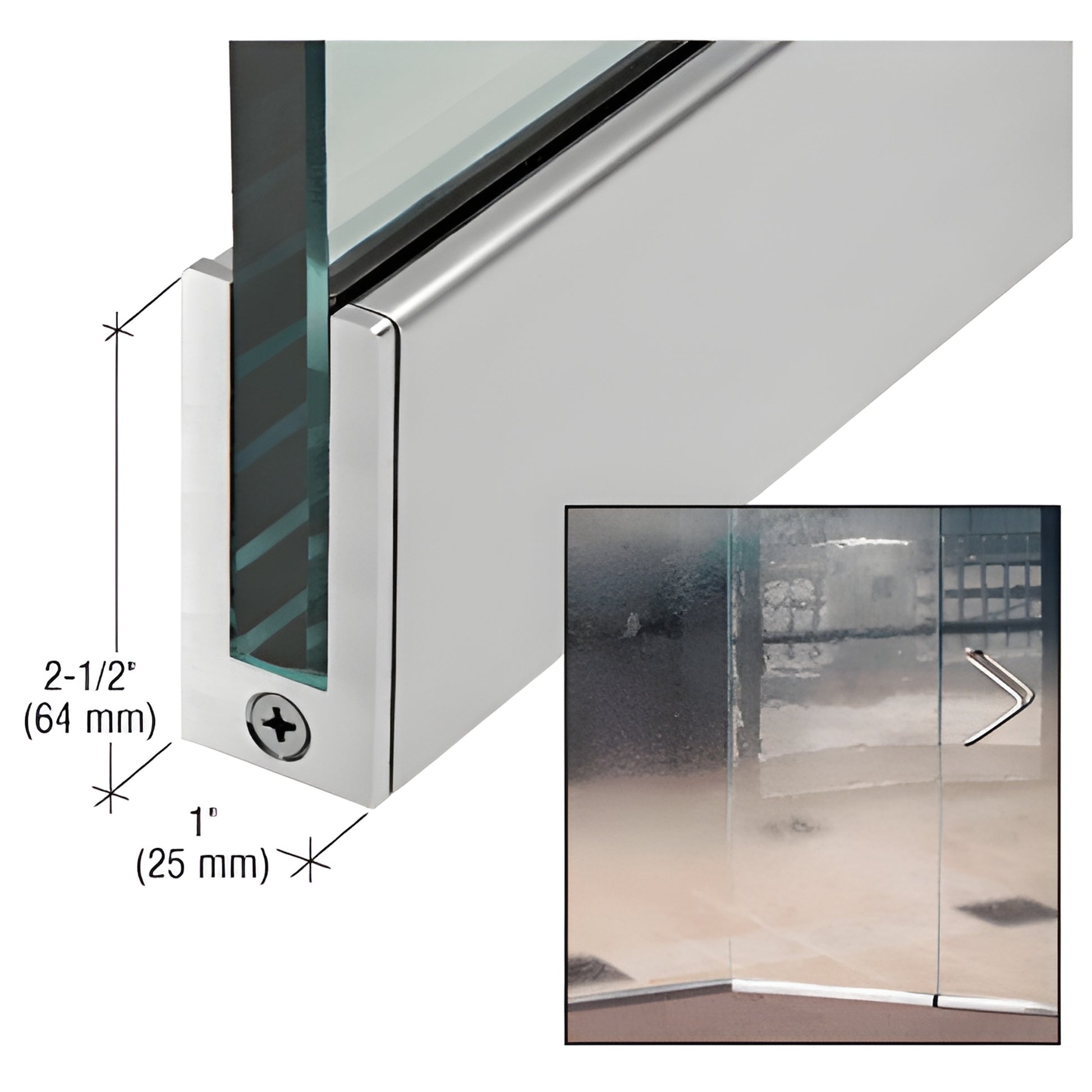

CRL Brushed Stainless 2-1/2 in Slender Door Rail No Lock (Custom)
CRL Brushed Stainless 2-1/2 in Slender Door Rail No Lock (Custom)
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SP64BS12C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
2-1/2 in. (64 mm)
Includes Lock
No
Profile
Slender
Width
2-3/8 in. (60 mm)
Overview
- For 1/2" (12 mm) glass
- Use monolithic tempered glass
- Custom length and finish — made to order
- Available in three heights, with or without a lock
- Dry-glaze slender profile door rails are only 1" (25 mm) wide
- Brushed or polished stainless steel finishes
- Custom 1" (25 mm) slender profile vertical stiles available on special order
All of our CRL Slender Profile Door Rails (SKU: SP64BS12C) can be fabricated with or without locks and are cut to your required length. Custom finishes are available on special order for tailored glass door rail applications.
NOTE: Not all closer or locking hardware is compatible with these slender profile rails. For compatibility details and recommended hardware for 1/2" tempered glass doors, contact the CRL Technical Sales Department.
Product Warning:
Maximum width for the slender profile door rail system is 42" (1.07 m).
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for maintenance guidance.
Want custom lengths, finishes, or help selecting compatible hardware for your 1/2" tempered glass door? Contact CRL Customer Service or Technical Sales to get a quote and place an order.
Specifications
CAD Drawings - dwg
