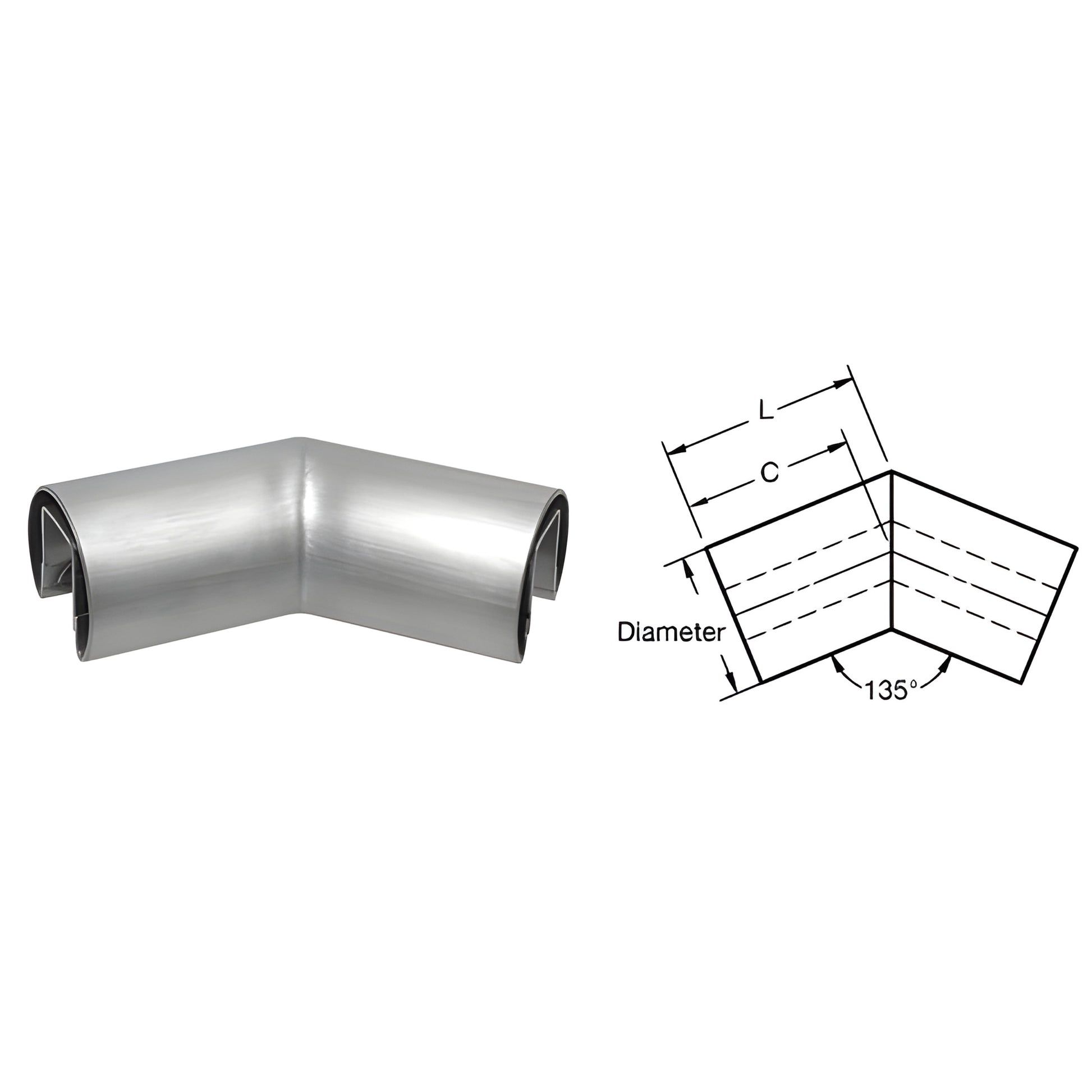

CRL Brushed Stainless 2" 135° Elbow for 1/2"-5/8" Glass Railing

• Welded and finished for a seamless appearance
• Ready-to-install interior slip-fit horizontal corner
• Four architectural finishes available
• Requires two connector sleeves (not included)

Interior slip-fit horizontal corners (SKU: GR20H3BS) accept 1/2" (12 mm) or 5/8" (16 mm) thick glass for hairline joint assemblies with straight lengths of CRL Cap Rail. For a secure, permanent bond, use Cat. No. 32629 Metal Contact Cement. Two connector sleeves are required for each corner.

Each horizontal corner is fabricated, finished, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail, welded and finished to match. Standard stainless alloy is 304; stainless 316 is available on special order. Brass uses alloy 260 as standard. Contact CRL Technical Sales for special orders, alloy options, or a quote.

Please contact CRL Technical Sales for more information or a quote.

NOTE: Except for the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GR15 Series corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.

Stainless Steel Advisory:

Order GR20H3BS horizontal corners for durable, ready-to-install cap rail joints — contact CRL Technical Sales to get started.
