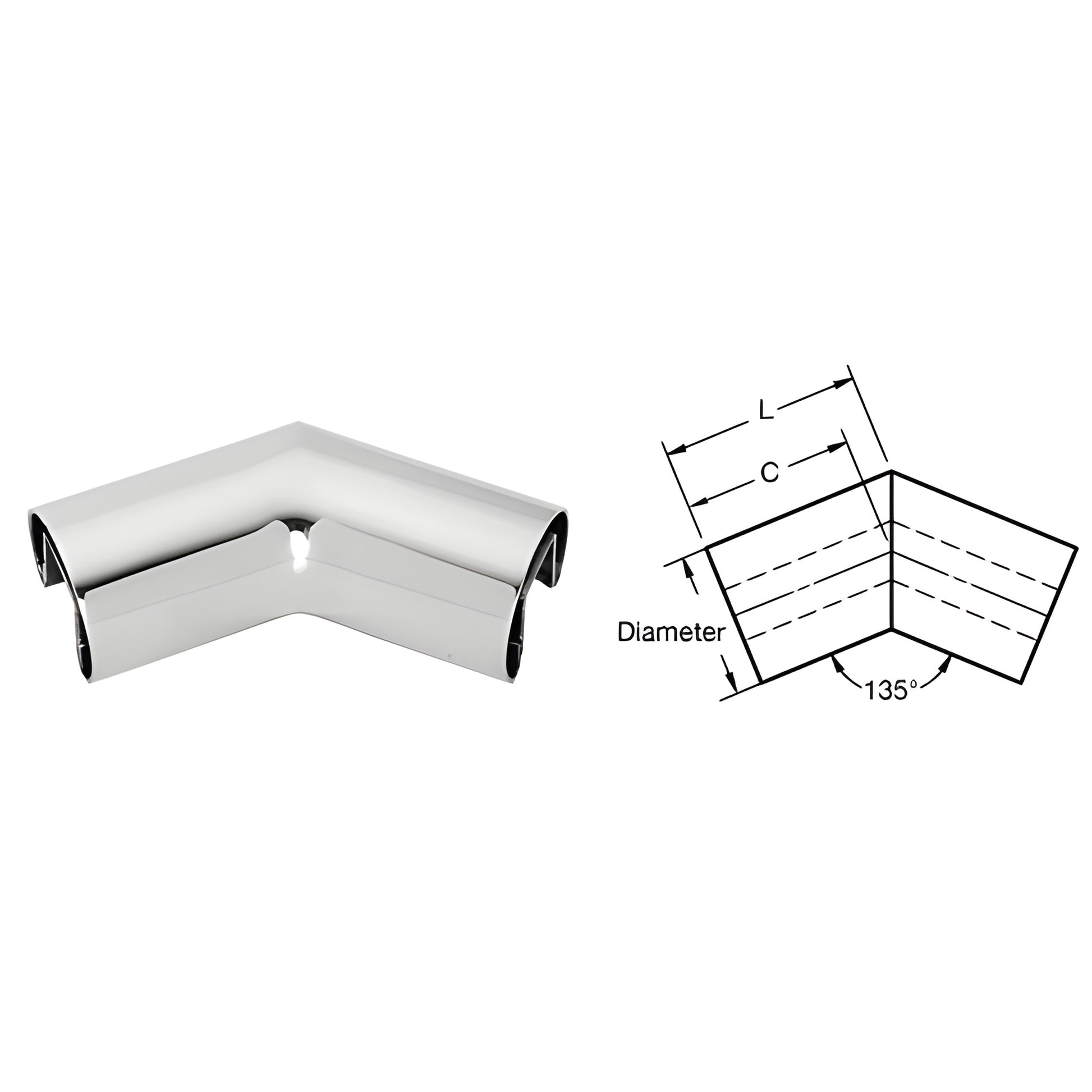

CRL Stainless Steel 2" 135° Corner Fitting for 1/2" & 5/8" Glass Rail

• Welded and Finished
• Ready-to-Install
• Four Architectural Finishes
• Requires Two Connector Sleeves (Not Included)

Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow hairline joint assemblies with straight lengths of CRL Cap Rail. These prefabricated, ready-to-install corners are designed for glass railing and storefront cap rail systems and require Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner. SKU: GR20H3PS.


Each horizontal corner is fabricated, finished, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail, welded and finished to match. Standard stainless alloy is 304; 316 stainless is available by special order. Brass uses alloy 260 as standard. Contact CRL Technical Sales for custom finishes, alloy options, or a quote.

Please contact CRL Technical Sales for more information or a quote.

NOTE: Except for GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.

Stainless Steel Advisory:

Key differentiators: Prefinished, welded corners for hairline glass cap rail joints; fits 1/2" and 5/8" glass; available in four architectural finishes; made from CRL Premium Cap Rail. Order SKU GR20H3PS or contact CRL Technical Sales to get a quote and confirm finish availability.

Contact CRL Technical Sales to order or request a quote.
