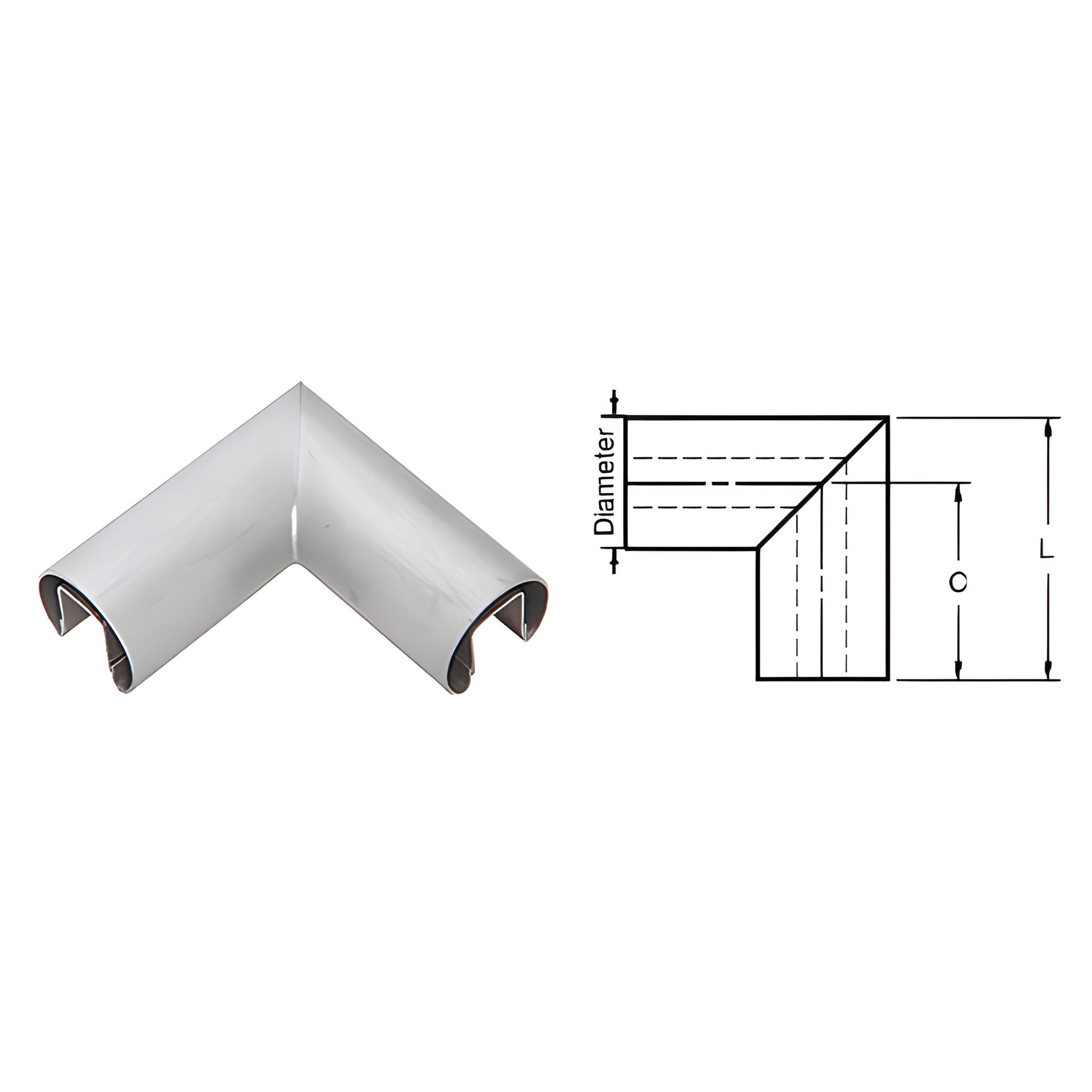

CRL 2" Brushed Stainless 90° Corner for 1/2–5/8" Glass Cap Railing
CRL 2" Brushed Stainless 90° Corner for 1/2–5/8" Glass Cap Railing
Regular price
$408.65 CAD
Regular price
Sale price
$408.65 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GR20HBS
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.08 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Diameter
2 in. (51 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Overview
- Welded, finished, and ready-to-install horizontal corner for glass cap rail
- Available in four architectural finishes
- Requires two connector sleeves (not included)
Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass provide hairline joint assemblies with straight lengths of CRL Cap Rail. For a secure, permanent bond use CRL Cat. No. 32629 Metal Contact Cement. Two connector sleeves are required per corner. SKU: GR20HBS.
Each horizontal corner is fabricated, finished, and individually packed. All stainless and brass corners are made from CRL Premium Cap Rail and are welded and finished to match. Standard stainless alloy is 304; stainless 316 is available by special order. Brass alloy 260 is standard.
Contact CRL Technical Sales for specifications, finish availability, or a quote.
NOTE: Except for GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only.
Product Warning:
When used with 1/2" (12 mm) glass, secure with GR5PV Cap Rail Vinyl and 95CBL Silicone. When used with 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
