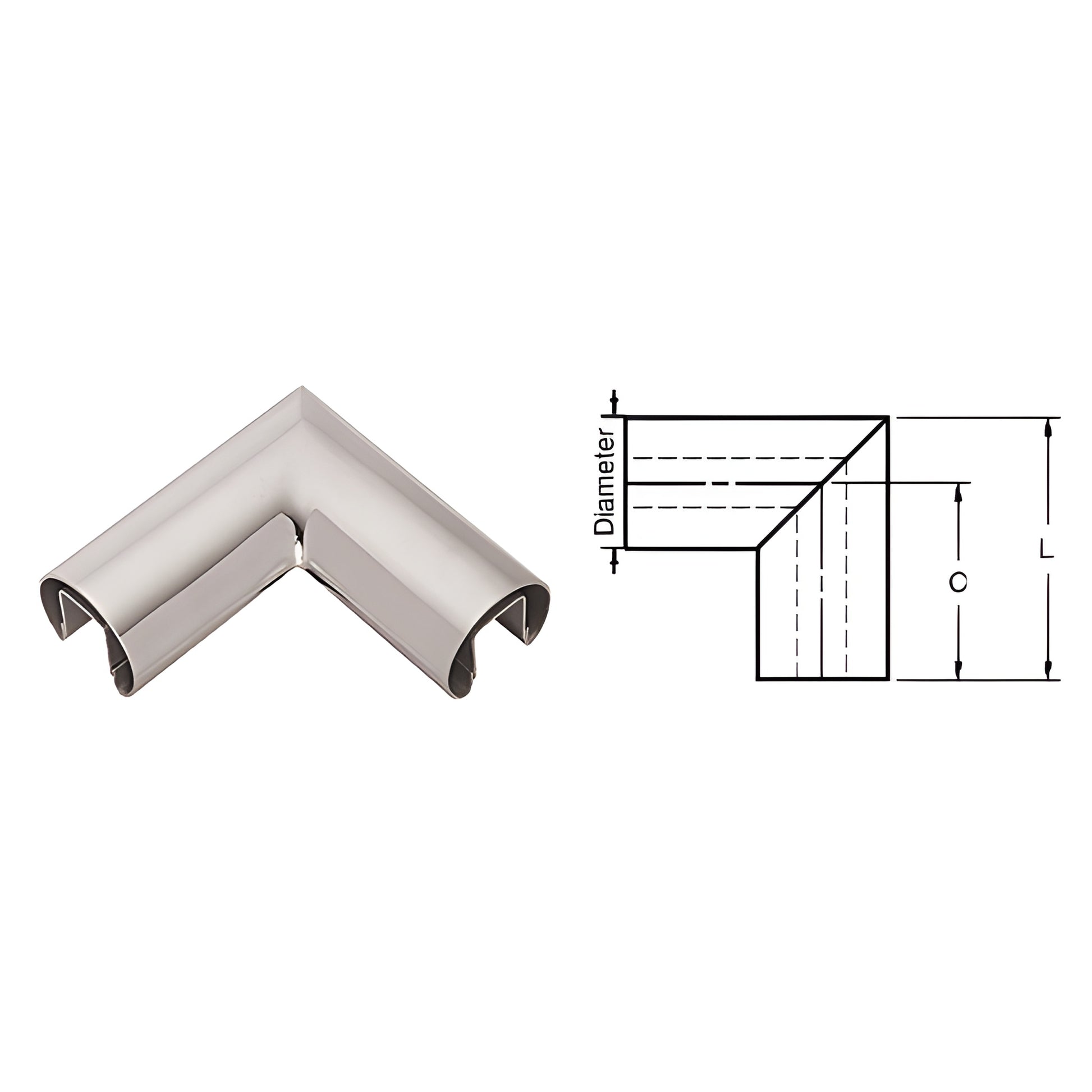

CRL Polished Stainless 2" 90° Corner Fitting for 1/2"-5/8" Glass Cap Rail

• Welded, finished, and ready-to-install interior slip-fit horizontal corners
• Available in four architectural finishes; stainless 304 standard (316 available special order)
• Requires two connector sleeves per corner (not included)

Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) glass provide hairline joint assemblies with straight lengths of CRL Cap Rail. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner. SKU: GR20HPS.

Each horizontal corner is fabricated, finished, and individually packed. All stainless and brass corners are produced from CRL Premium Cap Rail and are welded and finished to match. Standard stainless alloy is 304; stainless 316 and alternate brass alloys are available by special order.

Glass retention guidance: For use with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass (except GR15 Series—see note). For GR15 Series or 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.

Please contact CRL Technical Sales for product quotes, finish options, or ordering connector sleeves.

Product warning: Follow the glass retention guidance above when installing on 1/2" or 5/8" glass to ensure safe, long-term performance.

Stainless Steel Advisory:

Why choose GR20HPS? Precision-welded, finish-matched corners for seamless cap rail installations—ideal for architectural glass railing and panel projects. Contact us to order or get a quote.
