CRL Brushed Stainless 2-Panel Overhead Single-Track Sliding Hardware
CRL Brushed Stainless 2-Panel Overhead Single-Track Sliding Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0TS2BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single Track 2 Panel Bi-Part
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Width
72 in. (1829 mm)
Series
OT Overhead Track Slider
Overview
- Four-roller carriage assembly for smooth, silent overhead track sliding door operation
- Flush bottom surface for a clean, low-profile threshold
- Available in multiple configurations and architectural stainless steel finishes

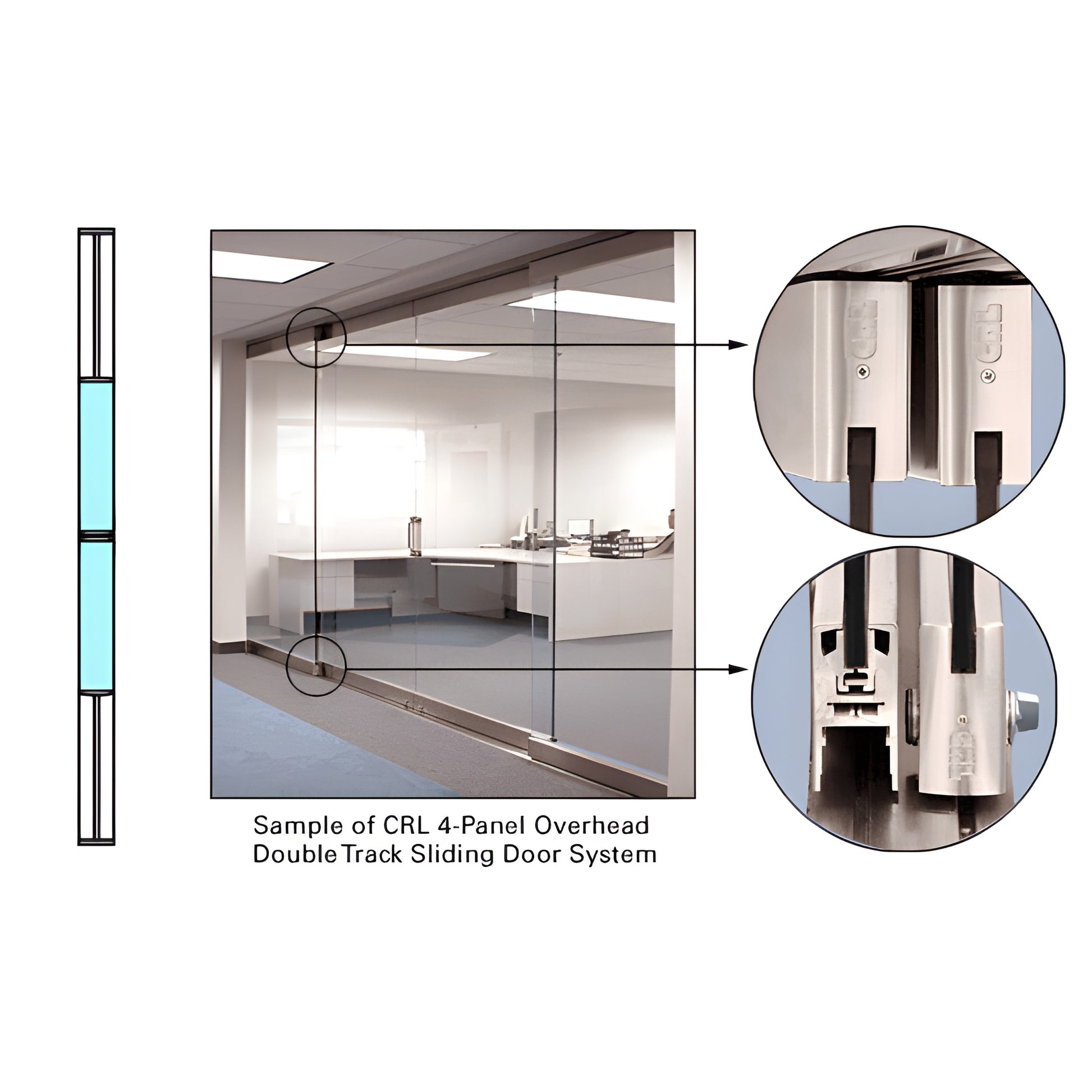

CRL Overhead Track Sliding Door Systems (SKU: 0TS2BS) are offered in four standard configurations. Each sliding panel is supported by two Cat. No. 0TCA carriage assemblies (four-roller units). Maximum panel weight: 225 lbs (102 kg). Maximum panel width: 72" (1.83 m). Minimum panel width: 25" (635 mm). These overhead track sliding door systems are ideal for commercial and residential glass doors requiring a flush bottom surface and quiet operation.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales Department for additional information and custom finish options.
Stainless Steel Advisory:
Stainless steel offers corrosion resistance but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care instructions.
Need help specifying your overhead track sliding door system or placing a custom order? Contact CRL Technical Sales today.
