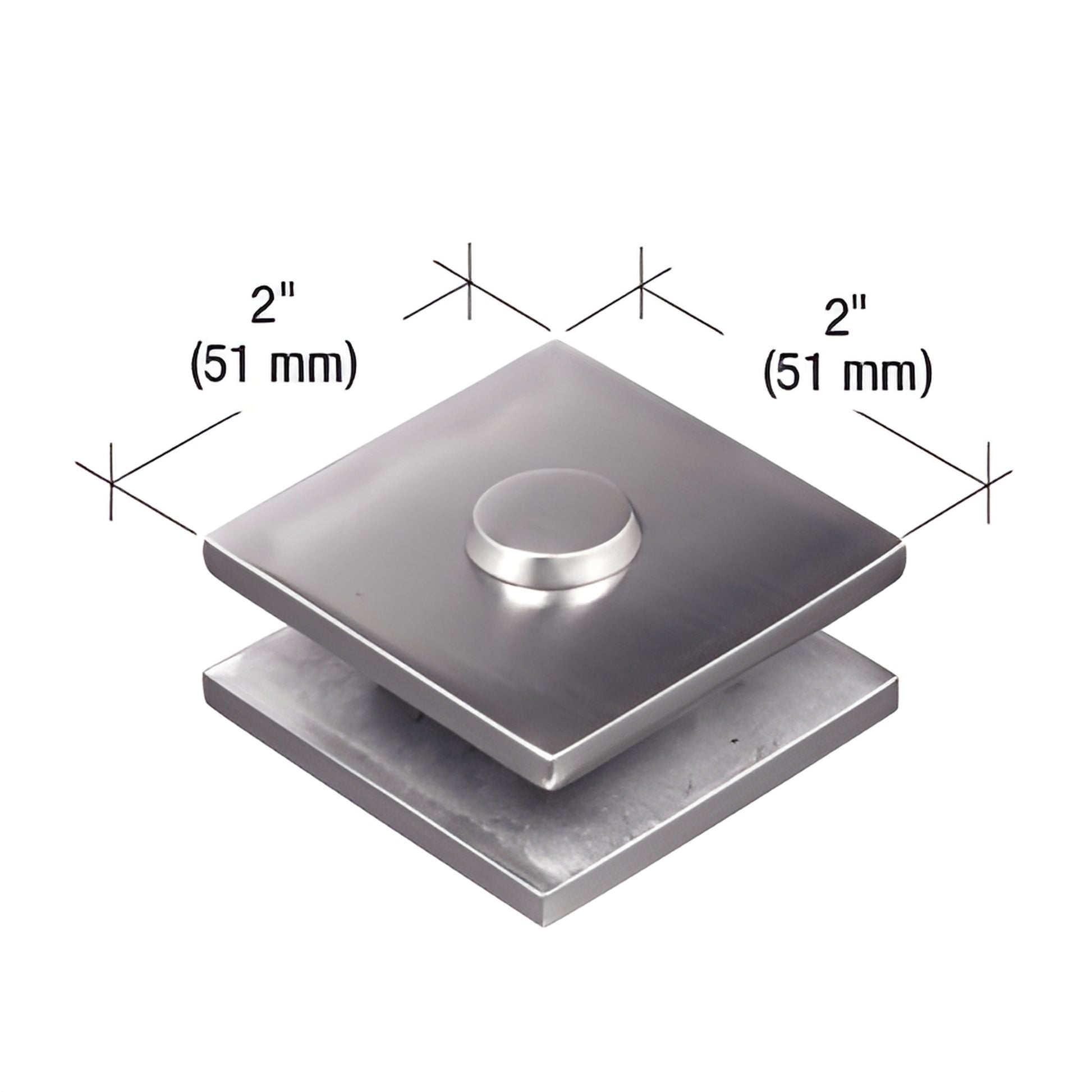

CRL Brushed Stainless Steel 2x2 Square Storefront Glass Clamp
CRL Brushed Stainless Steel 2x2 Square Storefront Glass Clamp
Regular price
$49.74 CAD
Regular price
Sale price
$49.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# MFC11
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
2 in. (51 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
304 Stainless Steel
Mounting Application
Interior Only
Profile
Square
Overview
- Commonly used in malls for joining vertical interior lites of tempered glass
- For 3/8" to 1/2" (10 to 12 mm) thick tempered glass
- Available in Polished Stainless, Polished Brass, and Brushed Stainless
- Use with monolithic tempered glass
CRL 2" x 2" (51 x 51 mm) 180° Square Mall Front Clamp — SKU: MFC11 attaches with a single beveled nut (included). Designed as an interior glass wall connector and mall front clamp for tempered glass, it joins vertical panels to increase rigidity and reduce flexing under pressure. Suggested minimum gap between tempered glass panels: 7/32" (5.6 mm). These clamps also serve as subtle floating indicators to improve panel visibility in dimly lit areas.
Includes P612** replacement screws.
Clamps are manufactured from type 304 stainless steel and come in polished brass, polished stainless, or brushed stainless finishes. They are intended for interior applications only. Although suitable for 1/2" (12.7 mm) glass, this clamp can be used on 3/8" (10 mm) glass by filing the threaded shank to size. Suggested minimum gap: 7/32" (5.6 mm).
Product Warning:
NOTE: Clamp is made of type 304 stainless steel and is intended for interior applications only.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order MFC11 today to secure a durable, finished mall front clamp for interior tempered glass installations.
