CRL Polished Stainless Steel 2" x 2" Square Glass Clamp

• Commonly used in malls for joining vertical interior lites of tempered glass
• For 3/8" to 1/2" (10 to 12 mm) thick tempered glass
• Available in Polished Stainless, Polished Brass, and Brushed Stainless finishes
• Designed for monolithic tempered glass; reduces panel flex and functions as a floating pedestrian indicator

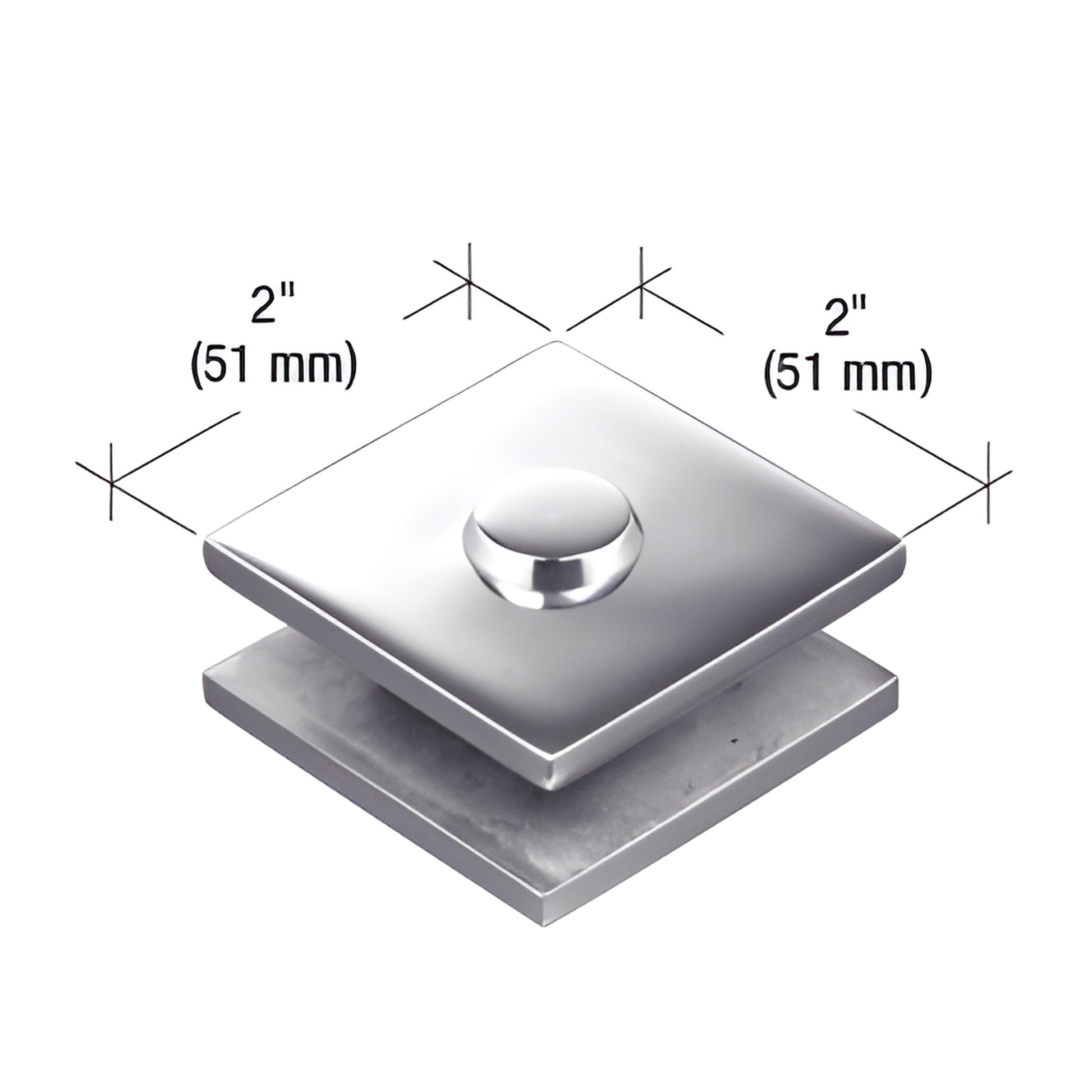

CRL 2" x 2" (51 x 51 mm) 180º Square Mall Front Clamp (SKU: MFC10) fastens with a single beveled nut (included). Suggested minimum gap between tempered glass panels is 7/32" (5.6 mm). These mall front clamps join vertical glass wall panels to increase rigidity and minimize flex when pressure is applied. They also improve visibility of glass panels in dim lighting as floating indicators.

P612** replacement screws

All CRL mall front clamps are offered in polished brass, polished stainless, or brushed stainless finishes and are sized for 1/2" (12.7 mm) thick glass. To fit 3/8" (10 mm) glass, file the threaded shank to the desired size. Suggested minimum gap for this clamp is 7/32" (5.6 mm).

Stainless Steel Advisory:

Order the MFC10 180º square mall front clamp today to secure vertical tempered glass panels with a clean, durable finish.
