Product Details
- Three Sizes in Two Popular Finishes for 3/8" to 3/4" (10 to 19 mm) Glass
- Designer Left and Right Hand Models Available
- 1-1/4" (32 mm) Diameter Heavy Wall 304 Alloy Stainless Steel Tubing
- Custom Finishes and Sizes Available

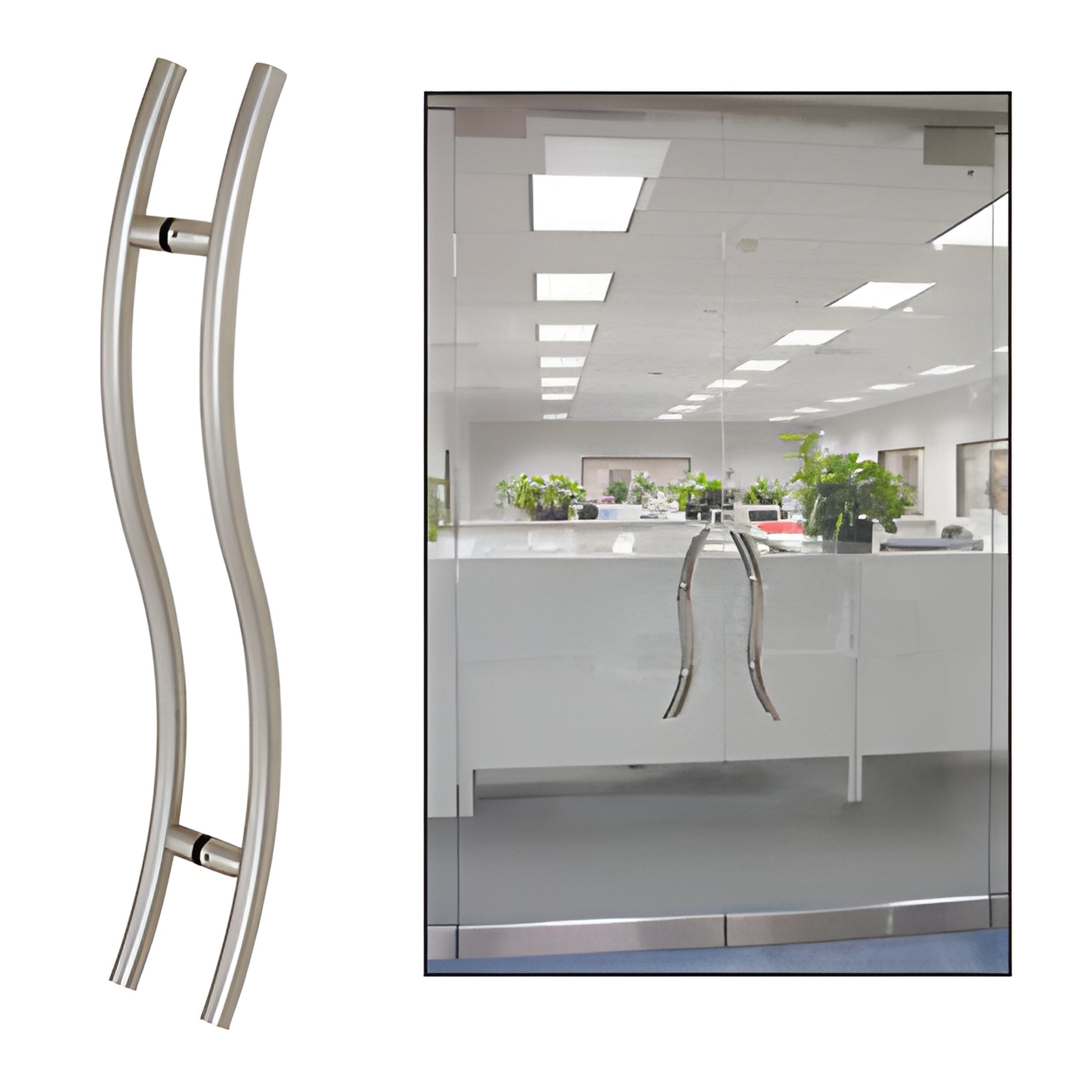

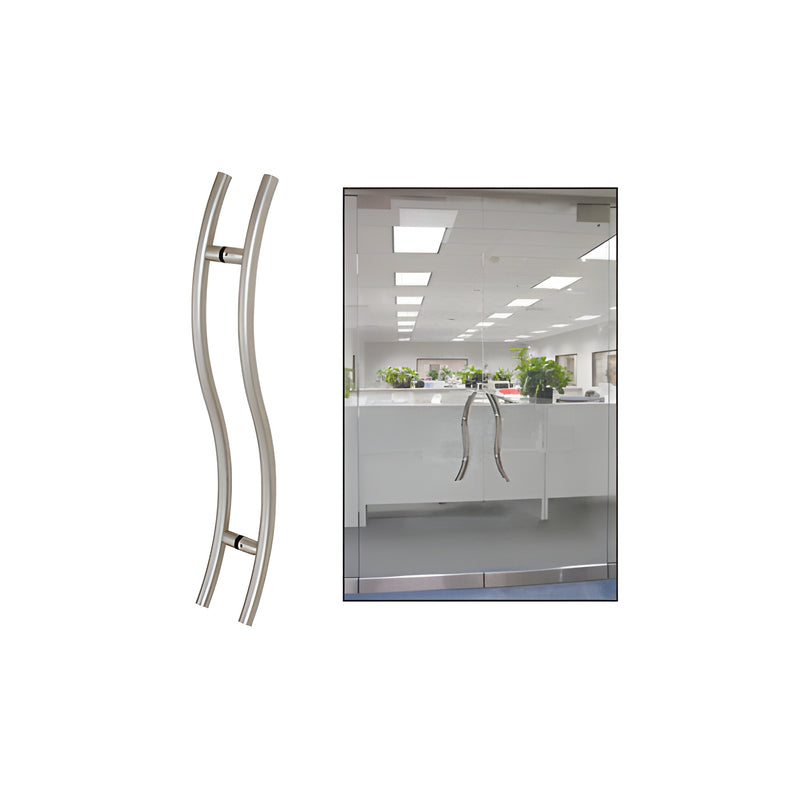

CRL "S" Style Ladder Pull Handles are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Stock sizes range from 24" to 48" (610 mm to 1.22 m) overall height. Standard finishes are polished stainless and brushed stainless. The Pulls are handed left and right to ensure the exposed set-screws are always on the interior side of the door. Handing is determined from the exterior side looking in.
Custom sizes and finishes are available to meet architectural specifications. For additional information or to begin the custom design process, contact our Technical Sales Department.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1-1/4" (32 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
Product Warning:
This handle is "handed" and the opposite handed pull will be needed for pairs of doors. For single sided ladder pulls, please contact our Technical Sales Department.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
