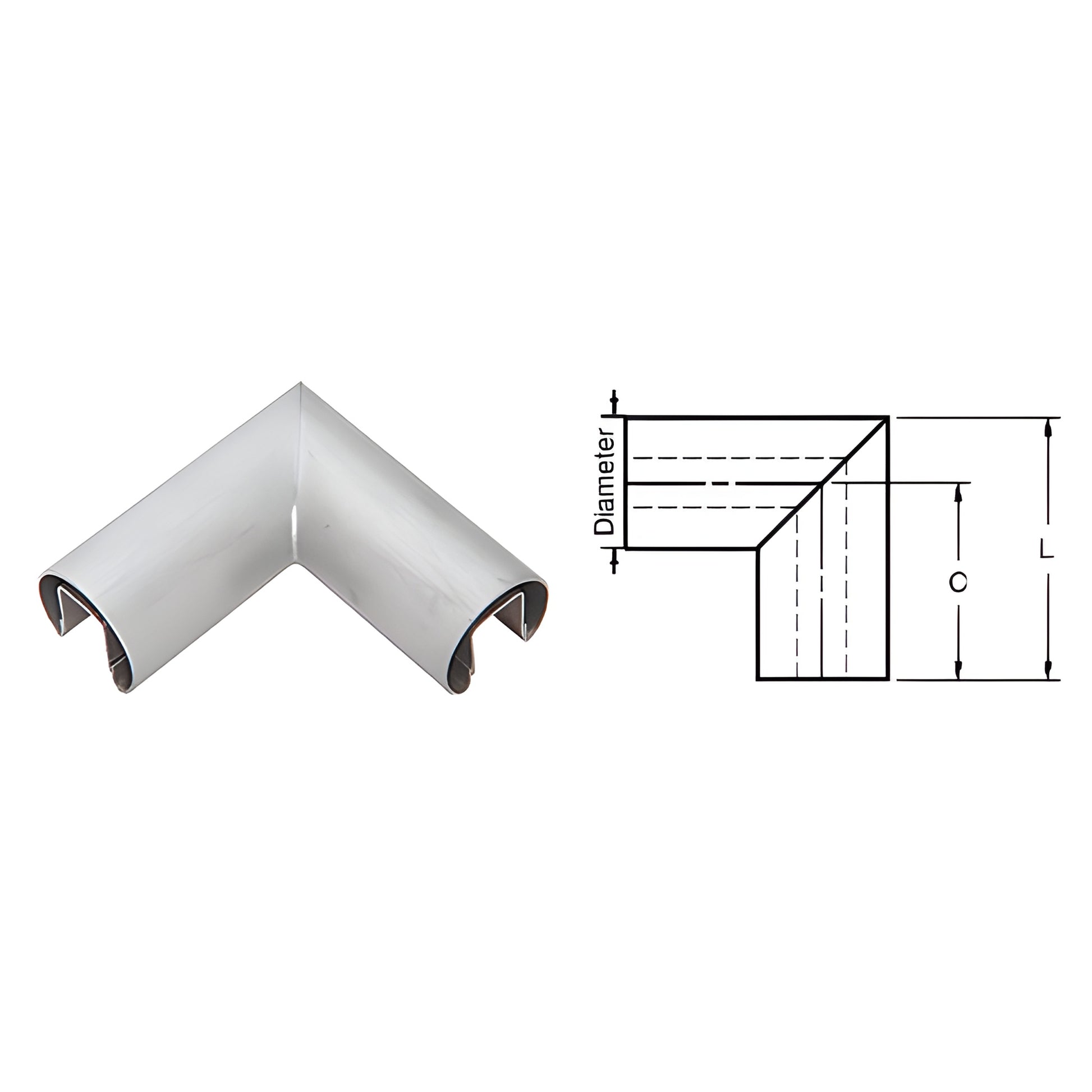

CRL Brushed Stainless 3 in 90° Corner for 1/2–5/8 in Glass Railing

• Welded, finished, and ready-to-install glass cap rail corners
• Available in four architectural finishes
• Requires two connector sleeves per corner (sold separately)

SKU: GR30HBS

Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass enable hairline joint assemblies with straight lengths of CRL Cap Rail. These corners are designed for interior glass railing and storefront applications that require a clean, continuous cap rail appearance. Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required for each corner.

Each horizontal corner is fabricated, finished, and individually packed. Stainless and brass corners are produced from CRL Premium Cap Rail and welded and finished to match. Standard stainless alloy is 304; stainless 316 is available by special order. Brass alloy 260 is standard.

For installation guidance contact CRL Technical Sales for specs, finish options, or a quote.

NOTE: Except for GR15 Series Cap Rail Corners: when used with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only.

Product Warning:

For 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone. For 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.

Stainless Steel Advisory:

Optimize your project with CRL premium horizontal corners—contact CRL Technical Sales to order or request a quote.
