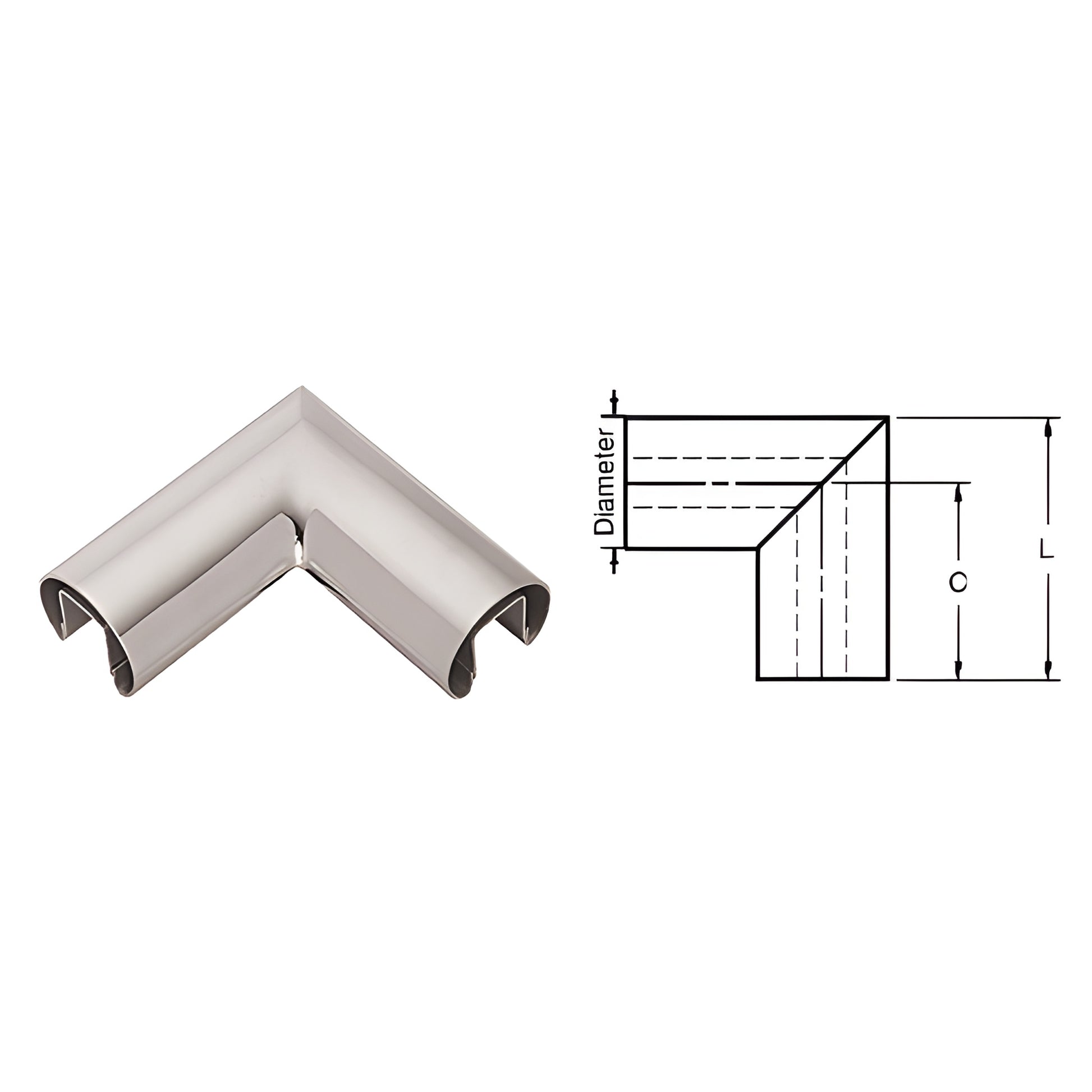

CRL 3" SS 90° Horizontal Corner for 1/2"-5/8" Glass Railing

• SKU: GR30HPS
• Welded, finished, and ready-to-install
• Interior slip-fit horizontal corners for 1/2" (12 mm) or 5/8" (16 mm) glass
• Four architectural finishes; stainless (304 standard, 316 available) and brass (alloy 260)
• Requires two connector sleeves (not included) and Cat. No. 32629 Metal Contact Cement for a permanent bond

GR30HPS interior slip-fit horizontal corners accept 1/2" (12 mm) or 5/8" (16 mm) glass for hairline joint assemblies with straight lengths of CRL Cap Rail. Each corner is fabricated from CRL Premium Cap Rail, welded, finished to match, and individually packed—delivering consistent fit and finish for architectural glass railing projects.

Standard stainless alloy is 304; stainless 316 is available by special order. Brass corners use alloy 260. Two connector sleeves are required per corner (sold separately).

Installation Notes & Adhesives: Use CRL Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. For 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass (except when using GR15 Series Cap Rail Corners). For GR15 Series or 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only.

Product Warning: Follow the adhesive and securing recommendations above for the corresponding glass thickness to ensure safe, code-compliant installation.

Stainless Steel Advisory:

For pricing, lead times, or technical assistance with GR30HPS, please contact CRL Technical Sales or request a quote today.
