CRL 30 in Brushed Stainless Ladder Door Pull - Back-to-Back
CRL 30 in Brushed Stainless Ladder Door Pull - Back-to-Back
Regular price
$545.14 CAD
Regular price
Sale price
$545.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 30LPBS
Shipping Weight: 9.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.64 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
30 in. (762 mm)
Style Washers
No
Overview
- Eleven sizes: 24" to 84" (610 to 2134 mm) overall height
- Brushed or polished 304 grade stainless steel finish
- Custom lengths, designs, and finishes available on special order
- Durable 1-1/4" (32 mm) diameter stainless steel tubing

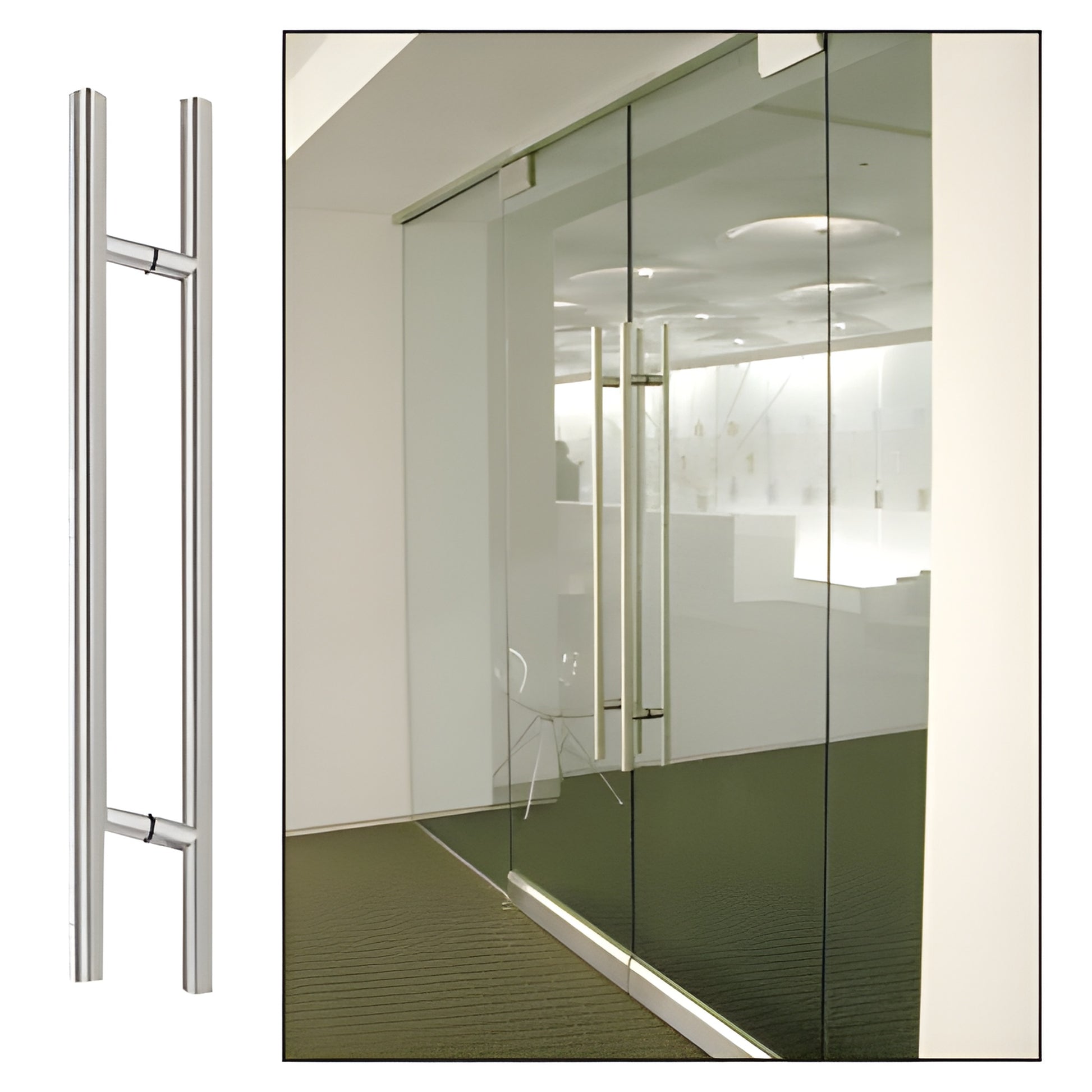

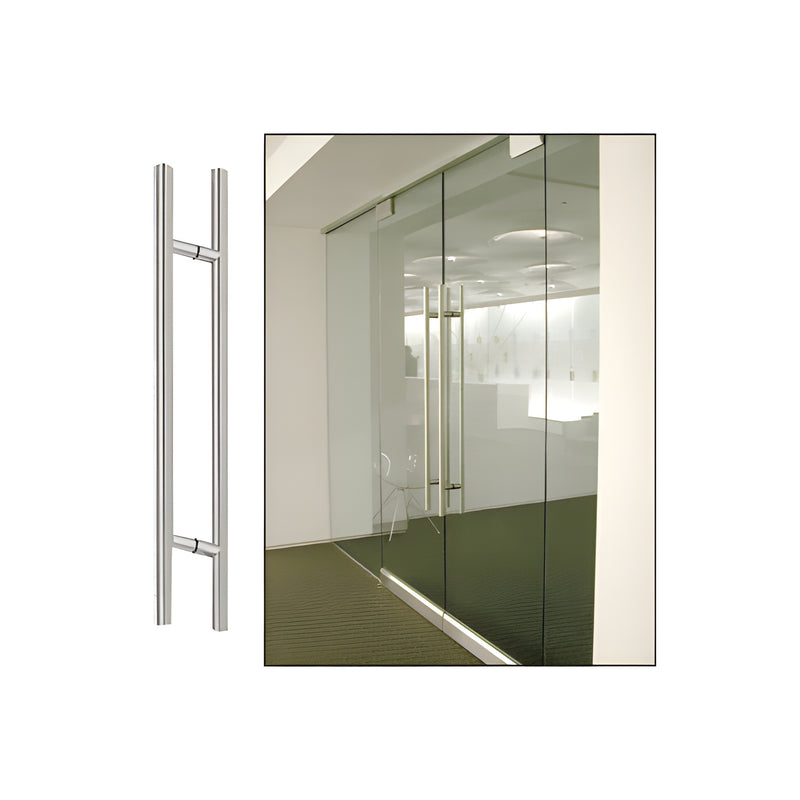

CRL Straight Style Ladder Pulls are designed for commercial and residential glass and wood doors. Each standard Ladder Pull (SKU: 30LPBS) ships with two mid-posts and mounting fasteners for back-to-back installation on 3/8" to 3/4" (10 to 19 mm) tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls can include additional mid-posts for extra support; maximum mid-post spacing is 72" (1.83 m). These stainless steel ladder handles are ideal as commercial glass door pulls or high-traffic entry handles.
SPECIFICATIONS:
3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes
Product Warning:
For single-sided ladder pulls contact the CRL Technical Sales Department.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Highlight: durable 304 stainless ladder pull for tempered glass doors—ideal for commercial entryways and architectural glass projects. Order or request a custom quote today.
