• 30LPPS polished stainless steel ladder pull, 1-1/4" dia, 30" overall, back-to-back mount for 3/8"-3/4" glass doors
1 1

CRL

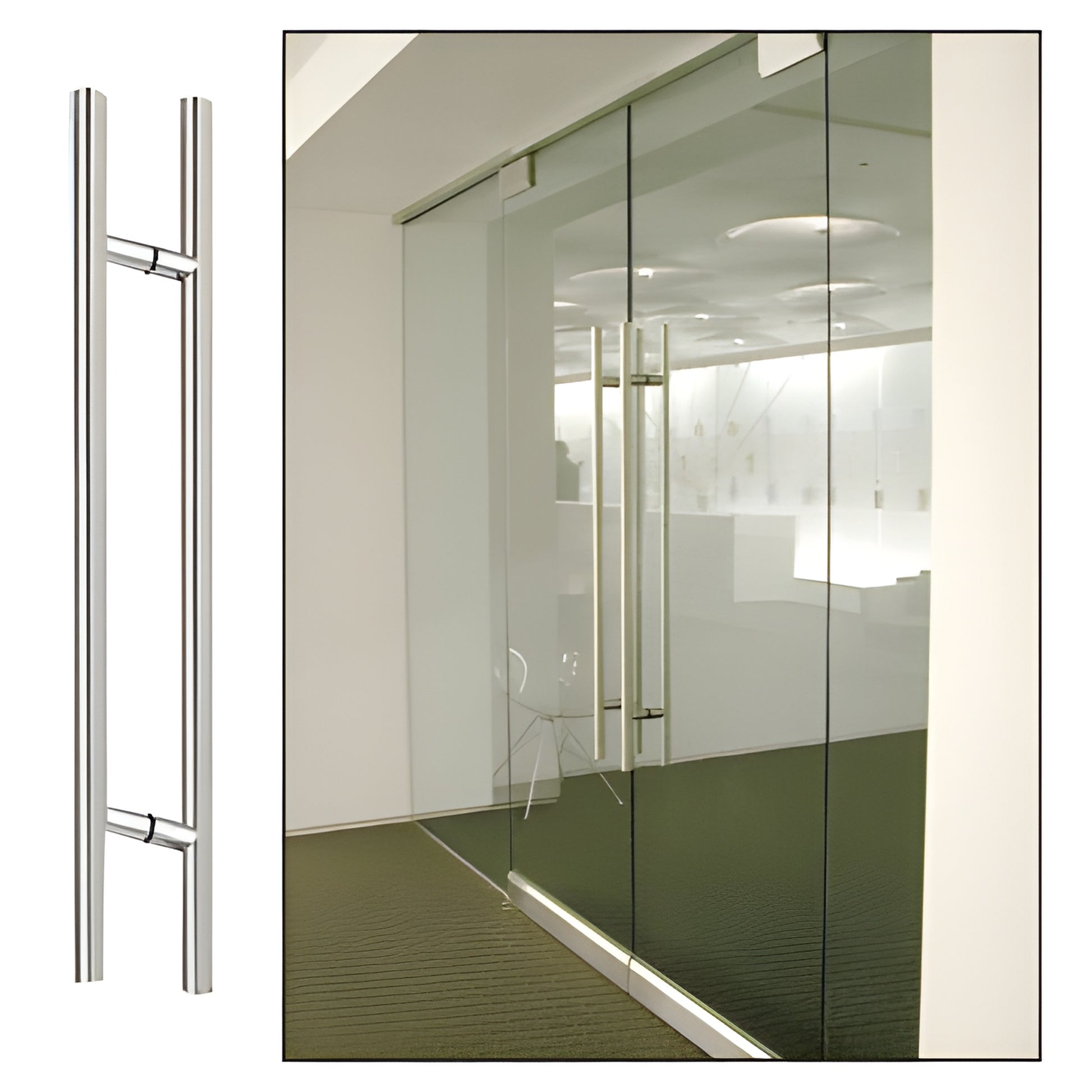

CRL 30 in Polished Stainless Ladder-Style Back-to-Back Door Pull

CRL 30 in Polished Stainless Ladder-Style Back-to-Back Door Pull

$625.62 CAD
$625.62 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 30LPPS
Shipping Weight: 9.171 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
30 in. (762 mm)
Style Washers
No

Overview

  • Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m)
  • Finish options: Brushed or Polished Stainless Steel
  • Custom lengths, designs, and finishes available on special order
  • Constructed from 304 grade stainless steel
CRL Straight Style Ladder Pulls (SKU: 30LPPS) are supplied with two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls can be ordered with additional mid-posts for increased support; maximum mid-post spacing is 72" (1.83 m). These commercial door ladder pulls are ideal for tempered glass door pull applications and heavy‑use storefronts.

SPECIFICATIONS:
Suitable for 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors.

CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing.

GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes.

Product Warning:
For single-sided ladder pulls, please contact the CRL Technical Sales Department.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.

Order the 30LPPS ladder pull for durable commercial door hardware — contact CRL for custom sizes and pricing.
