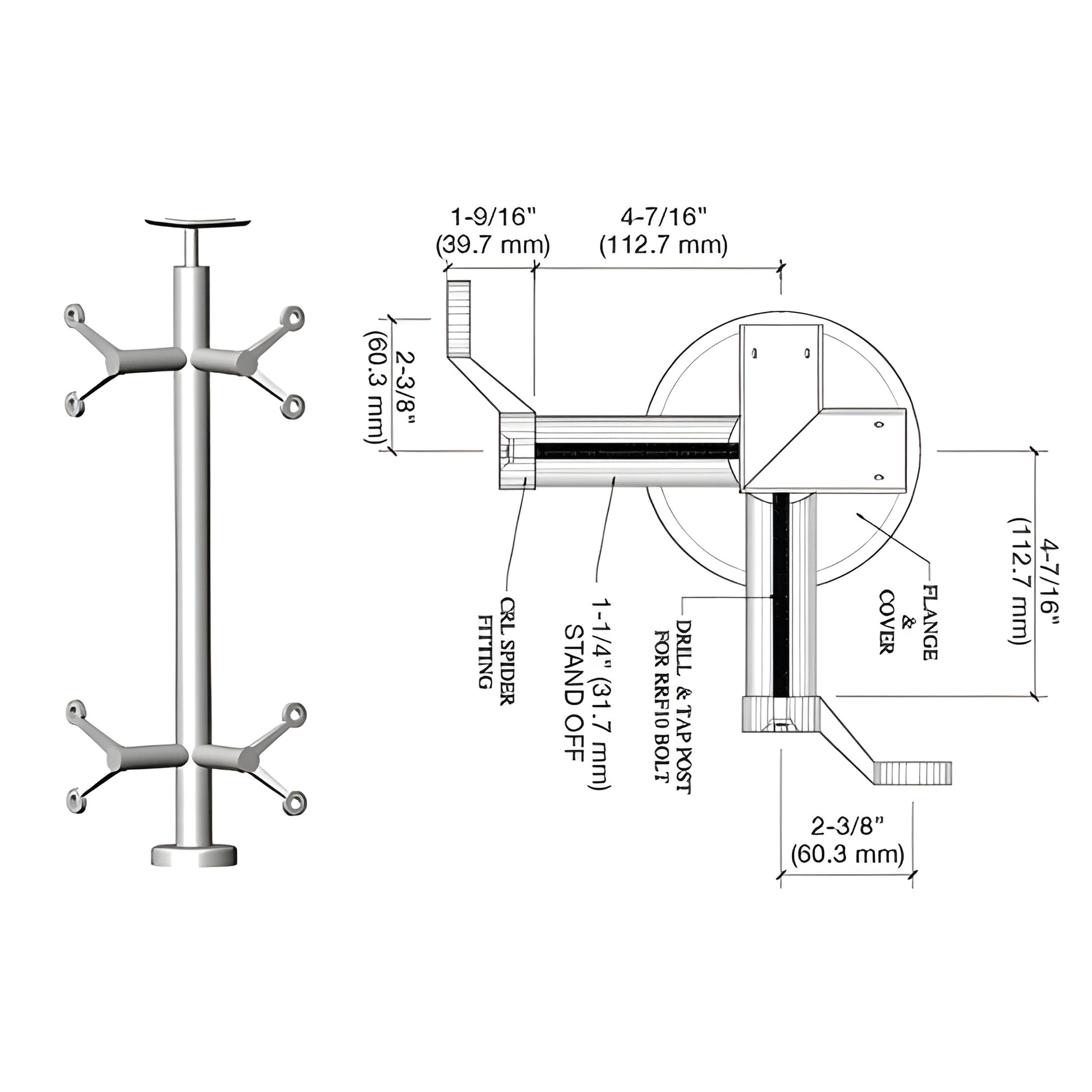

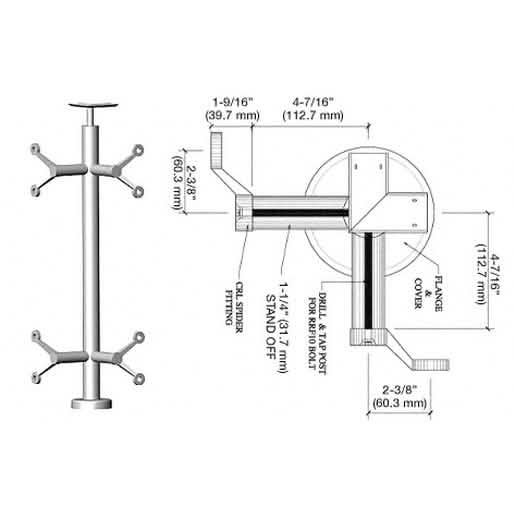

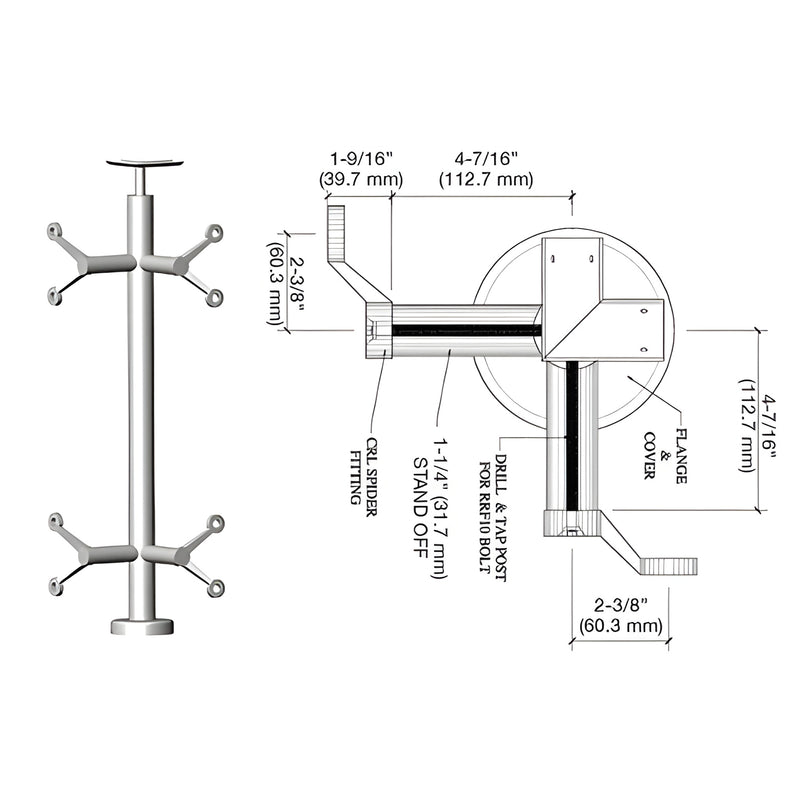

CRL P6 Brushed Stainless 36 in Spider 90° Corner Glass Railing Kit
Item# P636LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels — compatible with glass and panel infill systems
- Glass attachments sold separately
- Two standard stainless finishes; custom powder coat finishes available
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available on special order
CRL P6 Spider Post Railing Kits (SKU P636LBS) are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are engineered for guardrail or handrail applications. These spider post railing kits support 1-1/4" (32 mm) or 1-1/2" (38 mm) diameter horizontal tubing and include a base plate, welded top saddle, and factory-mounted fixed glass spider fittings — ideal for stainless steel glass railing systems and commercial glass balustrades. For top rail fasteners, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs, contact CRL Customer Service before placing your order. Product images shown are of the actual product or close representation; colors may vary with monitor settings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for full guidance.
For pricing, lead times, or to order the P636LBS spider post railing kit, contact CRL Customer Service or your local distributor today.
