CRL 36 in Brushed Stainless Square Glass Clamp 135° Railing Kit
Item# PS36ABS
Shipping Weight: 13.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Cover Included
Yes
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- 1.9" (48 mm) Diameter Posts
- Square or Round Z-Series Glass Clamps
- Ready-to-install stainless steel glass clamp post kits for commercial and residential applications
- Designed to accept 1/2" (12 mm) tempered glass panels
- Standard post heights: 36" (914 mm) and 42" (1067 mm)
- Custom post heights available
- Two standard stainless finishes; custom powder coat finishes available

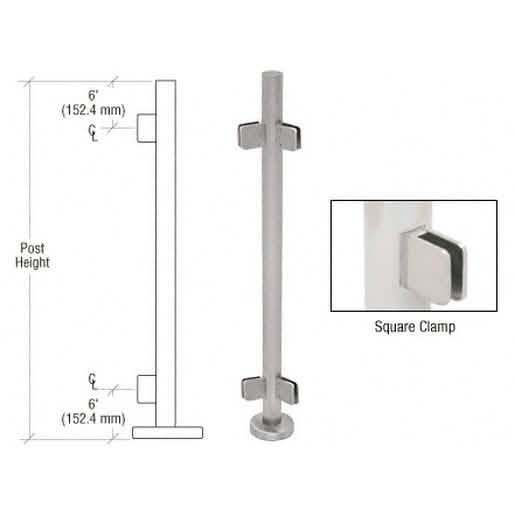

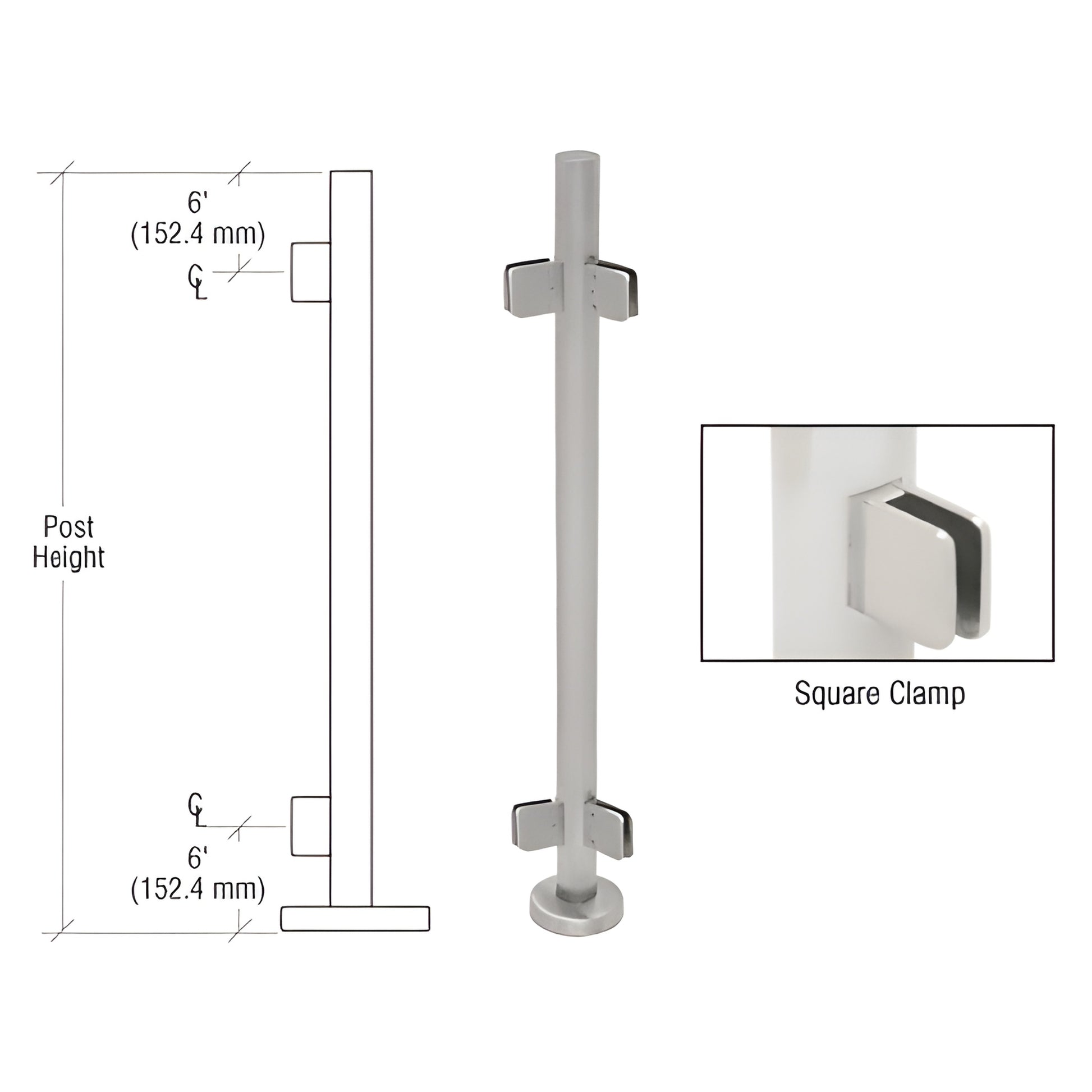

CRL's Glass Clamp Round Post Kits (SKU: PS36ABS) are manufactured from Schedule 40 1.9" (48 mm) diameter stainless steel tubing. Kits ship complete with a base plate, base plate cover canopy, welded top cap, and factory-attached Z-Series glass clamps—providing a ready-to-install solution for tempered glass balustrades, glass railing infill, and frameless glass panel installations.
Key differentiators:
- Factory-attached Z-Series clamps for faster installation
- Engineered to accept 1/2" tempered glass for secure, modern glass balustrades
- Options for standard or custom heights and finishes to match architectural projects
NOTE: CRL's Glass Clamp Post Kits are not designed for guard rail or hand rail applications.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please request this information from CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
For pricing, lead times, or to order SKU: PS36ABS, contact CRL Customer Service or your local distributor.
