CRL 4-Panel Brushed Stainless Overhead Double-Track Sliding Door Kit
CRL 4-Panel Brushed Stainless Overhead Double-Track Sliding Door Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0TS24BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Double Track 4 Panel Bi-Part Bi-Pass
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Maximum Panel Width
72 in. (1829 mm)
Series
OT Overhead Track Slider
Overview
- Four-roller carriage for quiet, smooth door operation
- Flush bottom surface for seamless floor transitions
- Available in several configurations and architectural finishes

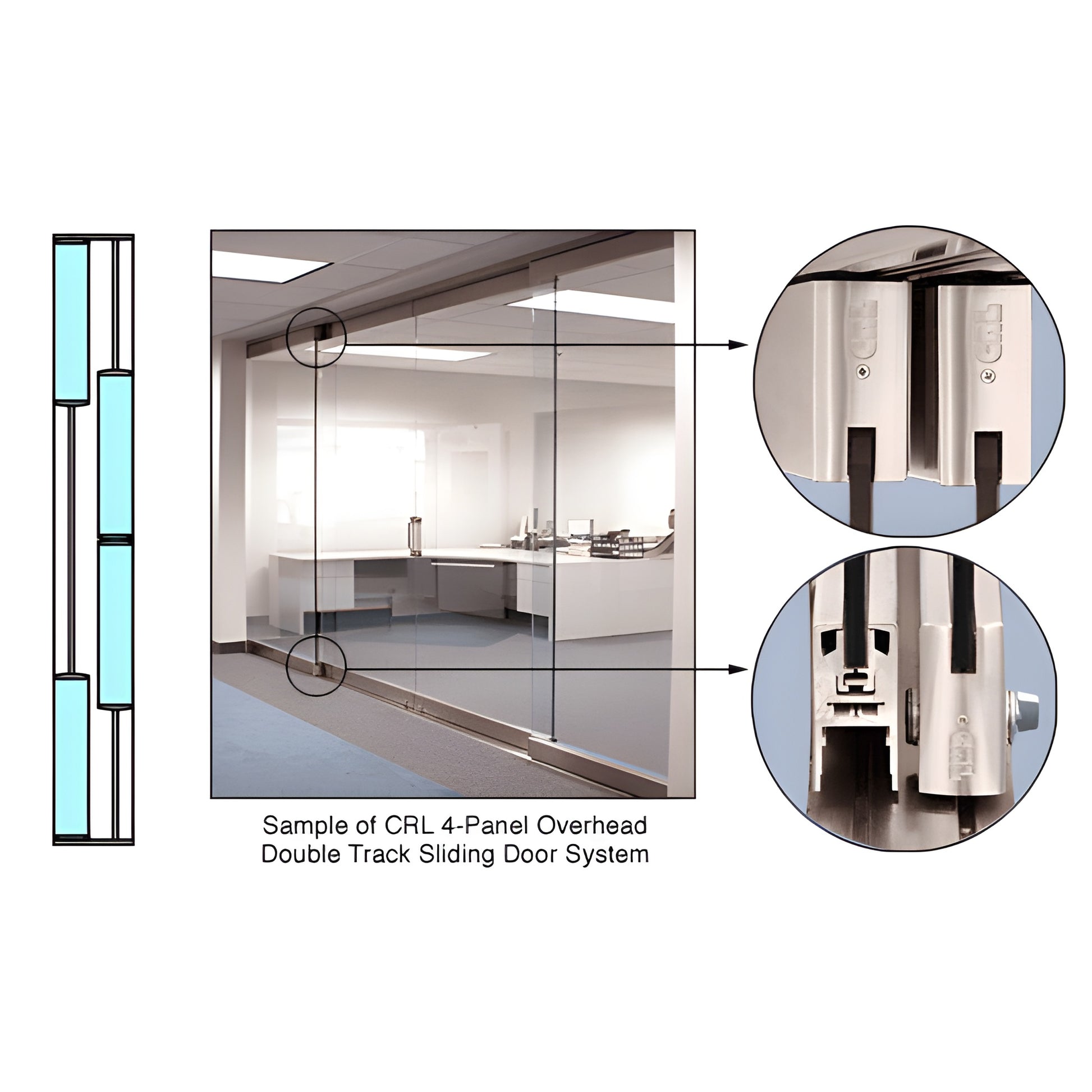

CRL Overhead Track Sliding Door Systems (SKU: 0TS24BS) are offered in four standard configurations. Each sliding panel is supported by two Cat. No. 0TCA carriage assemblies (four-roller units). Maximum panel weight: 225 lbs (102 kg). Maximum panel width: 72" (1.83 m). Minimum panel width: 25" (635 mm). These overhead track sliding door systems are engineered for silent performance and a clean, flush floor appearance, making them ideal for commercial and architectural interior applications.
NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact CRL Technical Sales Department for lead times, finish options, and configuration guidance.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Order SKU 0TS24BS or contact CRL for custom configurations and finishes.
