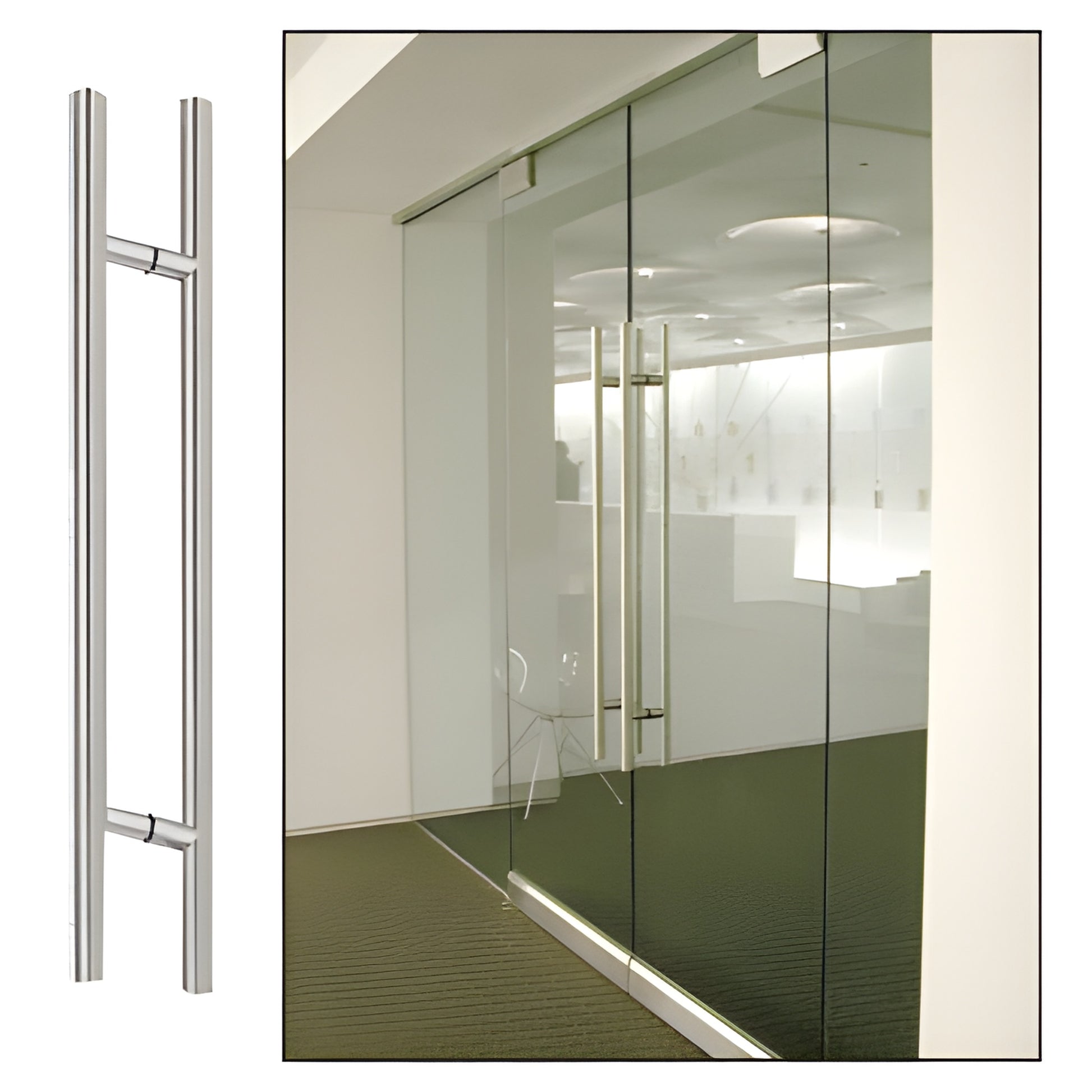

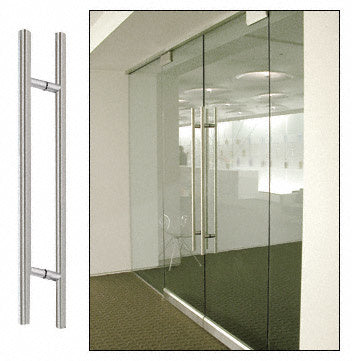

• CRL 42LPBS 42 in. brushed stainless steel straight ladder pull, 1-1/4" dia, back-to-back mounting for glass doors.
1 1

CRL

CRL 42 in Brushed Stainless Ladder-Style Back-to-Back Door Pull

CRL 42 in Brushed Stainless Ladder-Style Back-to-Back Door Pull

$630.80 CAD
$630.80 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 42LPBS
Shipping Weight: 12.346 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
30 in. (762 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
42 in. (1067 mm)
Style Washers
No

Overview

  • Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m)
  • Available in brushed or polished stainless steel finish
  • Custom lengths, designs, and finishes available on special order
  • Made from 304 grade stainless steel for commercial durability
CRL Straight Style Ladder Pulls (SKU: 42LPBS) come with two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls can be ordered with additional mid-posts for added support. Maximum spacing between mid-posts: 72" (1.83 m). SPECIFICATIONS:

Suitable for 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors.

CONSTRUCTION:

1-1/4" (32 mm) diameter 304 grade stainless steel tubing — heavy-duty commercial door pull for glass doors and exterior entrances.

GLASS FABRICATION:

Requires two 5/8" (16 mm) diameter holes.

INSTALLATION NOTES:
  • Supplied with two mid-posts for back-to-back glass mounting; additional mid-posts available for long spans.
  • Designed for tempered glass doors and standard 1-3/4" door thickness for wood/aluminum applications.
Product Warning:

For single-sided ladder pulls, contact our Technical Sales Department for options and compatibility.

Most shipping weights are approximate. If exact weight is required to determine shipping costs, request this before ordering by contacting CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more information.

Why choose this ladder pull? Durable 304 stainless steel construction, multiple size options up to 84", and custom ordering make this an ideal commercial-grade stainless steel ladder pull for tempered glass doors and high-traffic entrances.

Ready to order or need a custom size? Contact CRL Customer Service to place your order or get a quote.
