• Polished stainless steel 42 in ladder pull, 1-1/4 in dia, back-to-back mount for glass doors - SKU 42LPPS
1 1

CRL

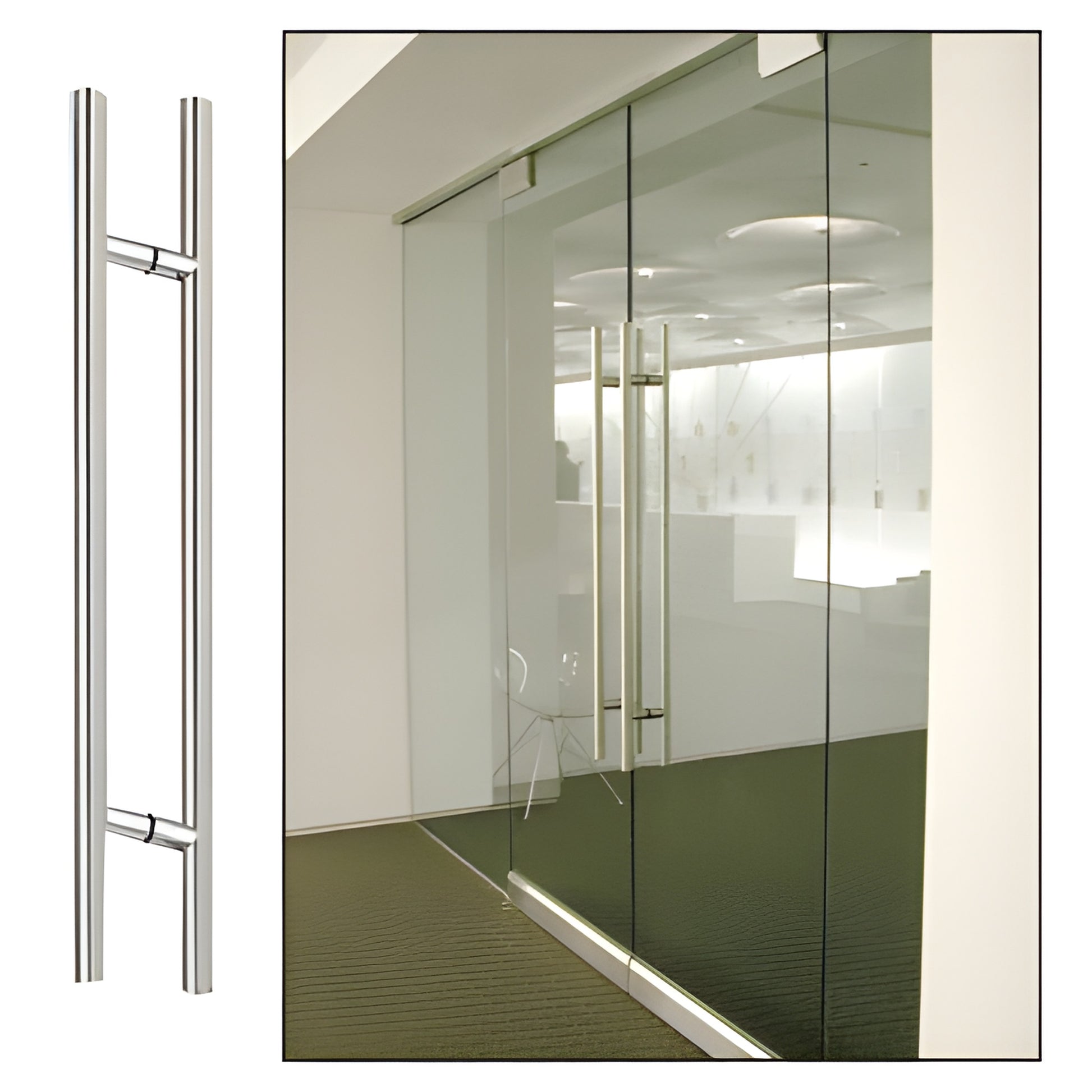

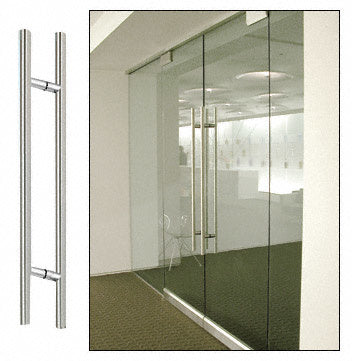

CRL 42-inch Polished Stainless Ladder-Style Back-to-Back Door Pull

CRL 42-inch Polished Stainless Ladder-Style Back-to-Back Door Pull

$691.82 CAD
$691.82 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 42LPPS
Shipping Weight: 12.346 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
30 in. (762 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
42 in. (1067 mm)
Style Washers
No

Overview

  • Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m)
  • Brushed or polished stainless steel finishes
  • Custom lengths, designs, and finishes available on special order
  • Made from 304 grade stainless steel for commercial-grade durability

CRL Straight Style Ladder Pulls include two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls can be ordered with additional mid-posts for extra support; maximum mid-post spacing is 72" (1.83 m). These heavy-duty stainless steel door pulls are ideal for commercial entrances, storefront tempered glass doors, and architectural glass projects.

SPECIFICATIONS:
Fits 3/8" to 3/4" (10 to 19 mm) thick tempered glass or 1-3/4" (44 mm) thick aluminum or wood doors.

CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing.

GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes in tempered glass.

Product Warning:
For single-sided ladder pulls, contact CRL Technical Sales Department.

Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs, request it prior to ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.

Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.


SKU: 42LPPS

Why choose these ladder pulls? Eleven size options, 304 stainless construction, back-to-back mounting for tempered glass, and customizable configurations make these ladder
