CRL P6 42" Brushed Stainless 135° Spider Glass Railing Kit
CRL P6 42" Brushed Stainless 135° Spider Glass Railing Kit
Regular price
$2,615.35 CAD
Regular price
Sale price
$2,615.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P642ABS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels — compatible with glass and panel railing systems
- Glass attachment fittings sold separately (P-Series fittings required)
- Two standard stainless finishes; custom powder-coat finishes available for exterior or architectural color matching
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available on special order

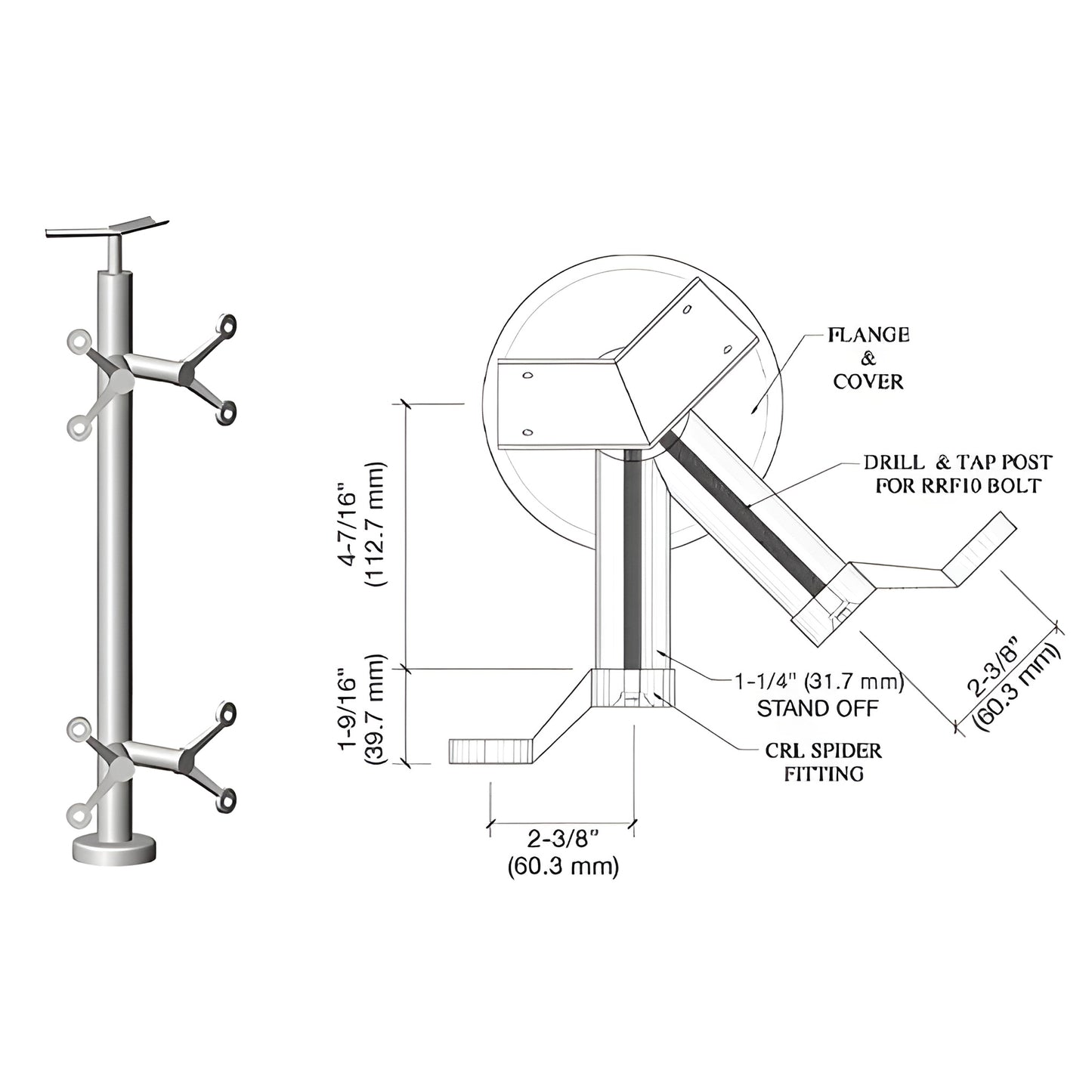

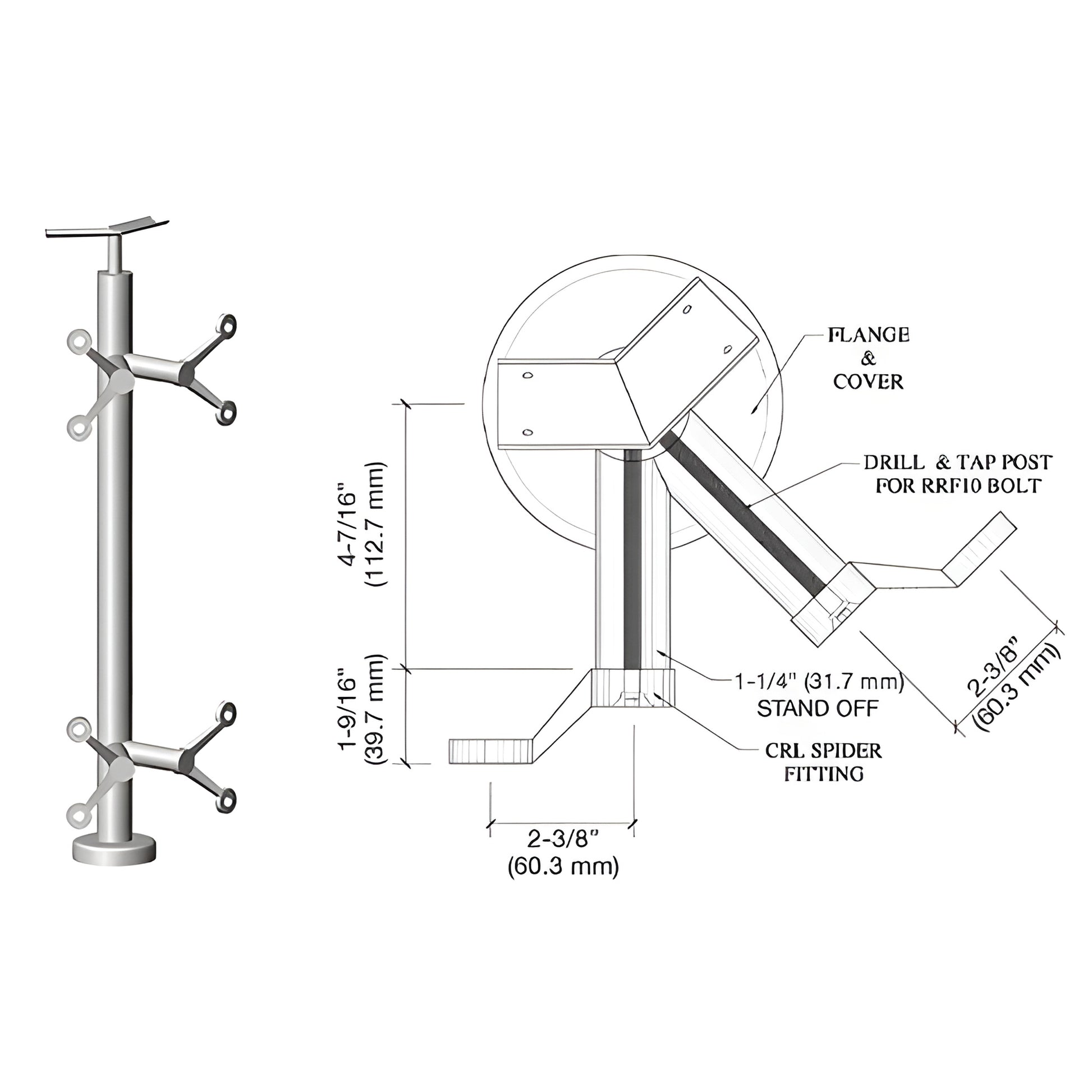

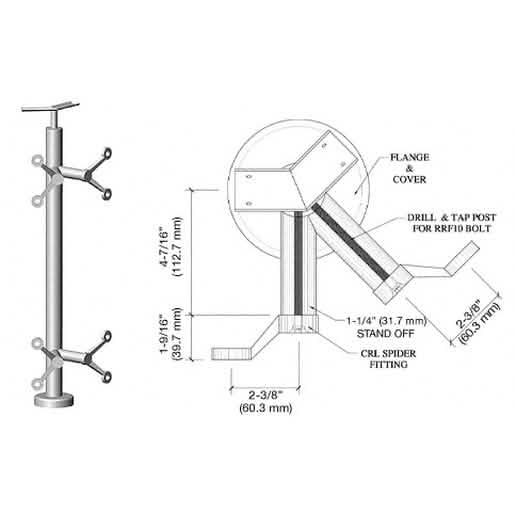

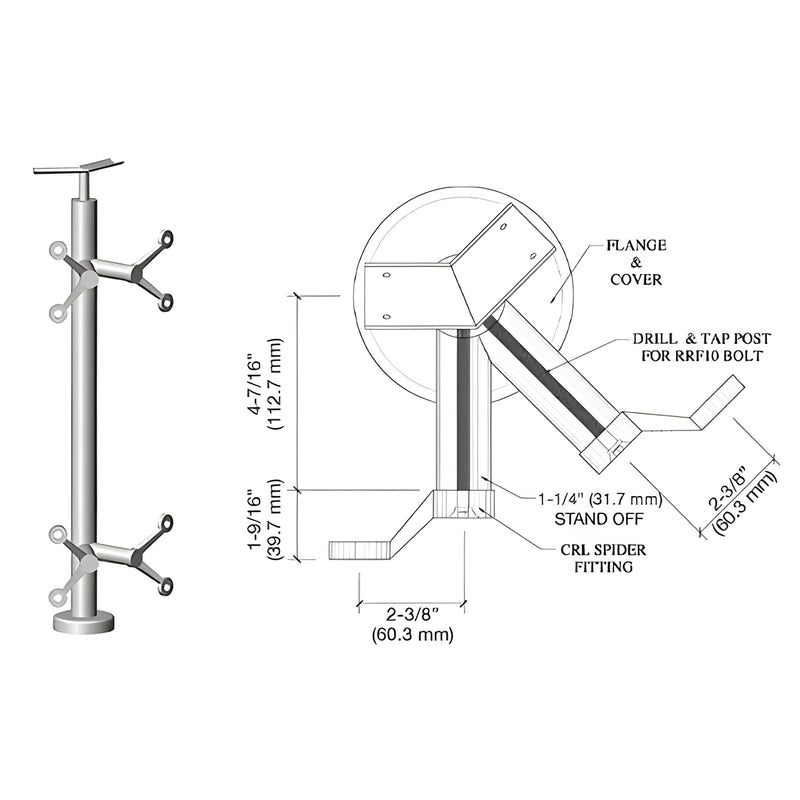

CRL P6 Spider Post Railing Kits (SKU P642ABS) are fabricated from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and engineered for guardrail and handrail applications. These spider post kits support 1-1/4" (32 mm) or 1-1/2" (38 mm) horizontal tubing and include a base plate, welded top saddle, and factory-mounted fixed glass spider fittings—ideal for stainless steel glass railing systems and architectural balustrades. For top-rail attachment screws specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel, 50/pack).
Product Warning:
All P-Series post kits are sold without separate glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order or request a quote for SKU P642ABS today to get stainless steel spider post railing kits with custom finish options.
