CRL Brushed Stainless 42" 180° Spider Center Post Glass Railing Kit
CRL Brushed Stainless 42" 180° Spider Center Post Glass Railing Kit
Regular price
$1,358.97 CAD
Regular price
Sale price
$1,358.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P642CBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachments sold separately
- Two standard stainless finishes; custom powder paint finishes available
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available on special order

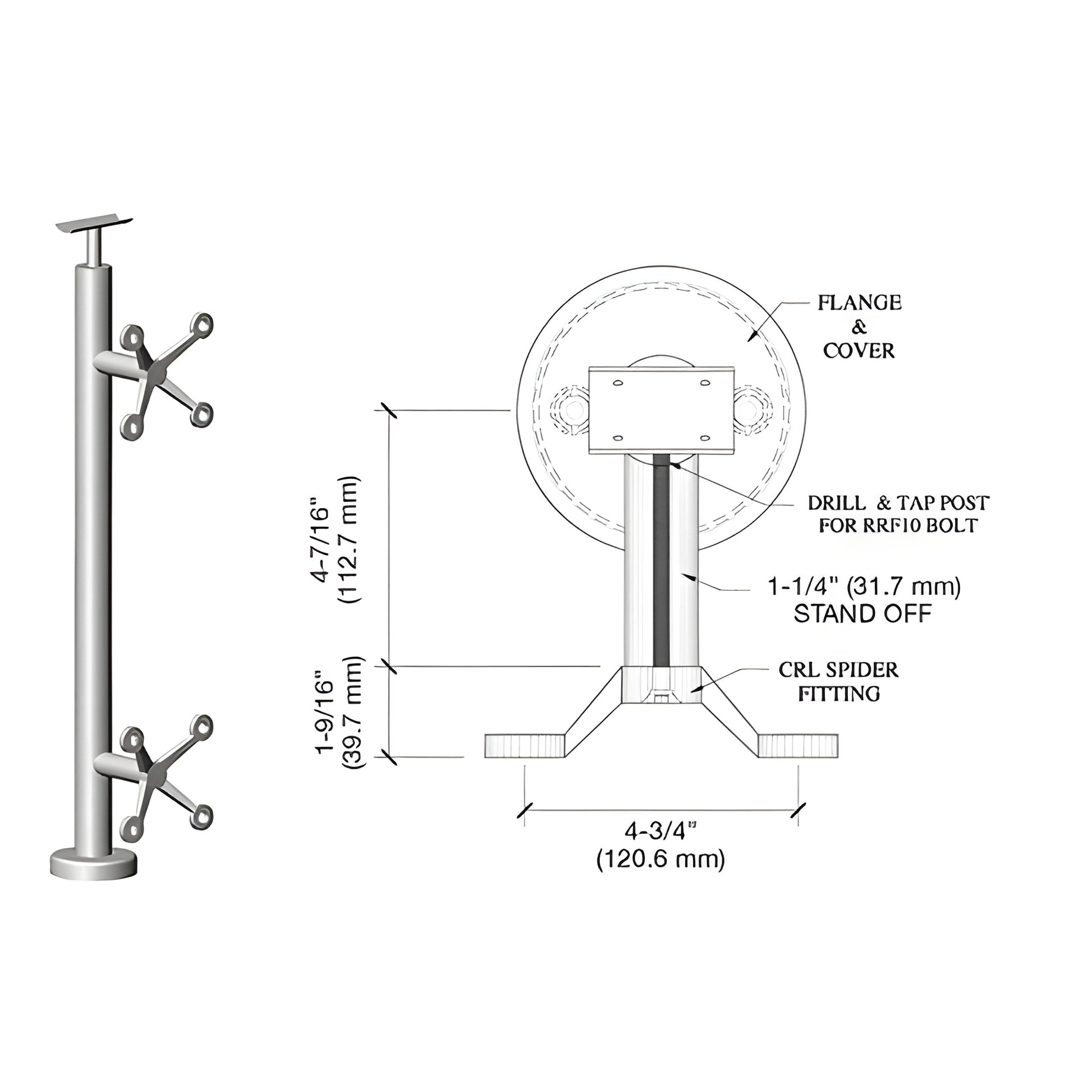

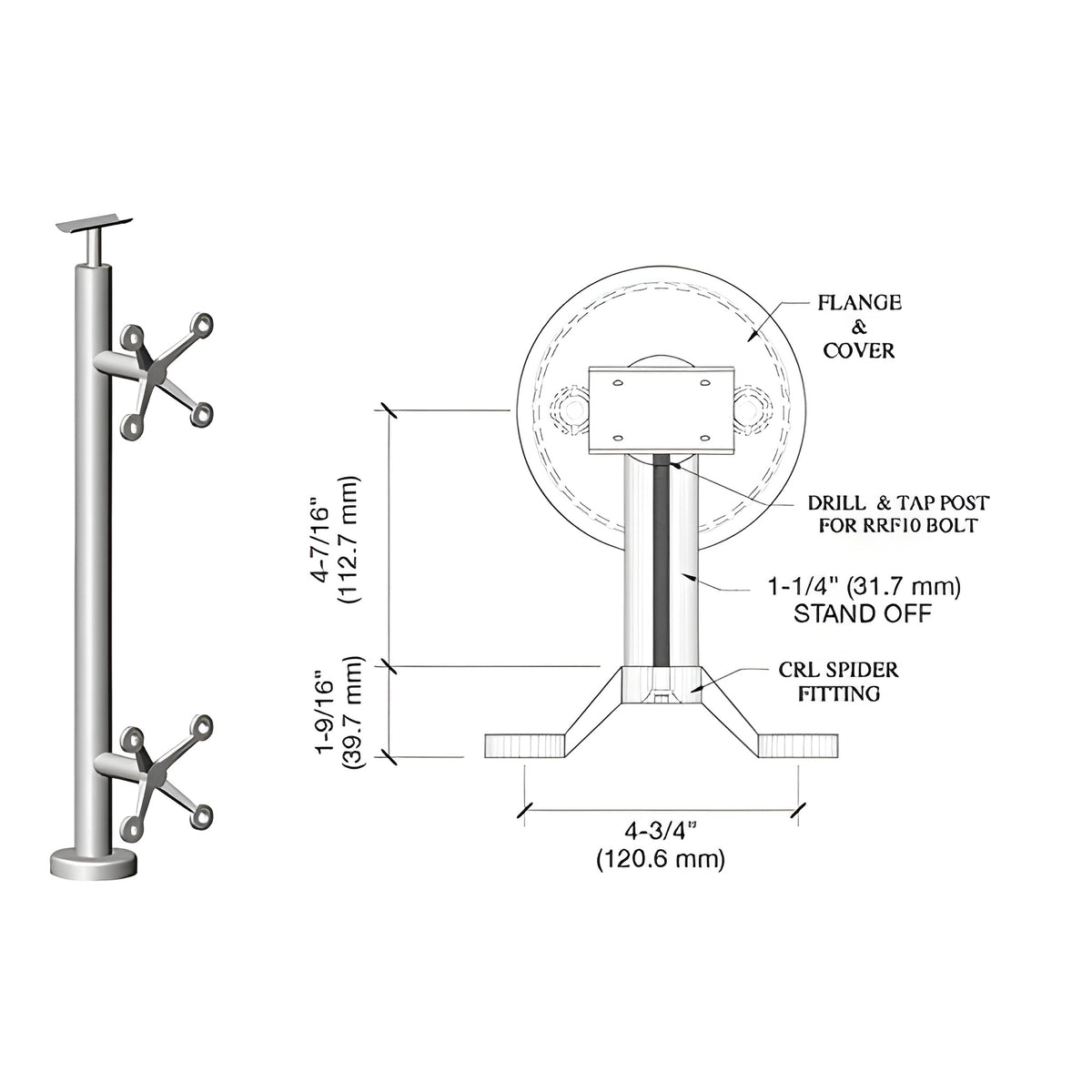

CRL P6 Spider Post Railing Kits (SKU: P642CBS) are manufactured from Schedule 40 1.9" (48 mm) diameter stainless steel tubing. Designed for guard rail and handrail applications, these kits support 1-1/4" (32 mm) or 1-1/2" (38 mm) horizontal tubing and include a base plate, welded top saddle, and factory-mounted fixed glass spider fittings—making them an ideal stainless steel spider post railing kit for commercial and residential glass balustrades. For top rail attachment screws, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Need a custom finish or height? Contact us to configure your P6 Spider Post Railing Kit (P642CBS) today.
