CRL P6 42" Polished Stainless 180° Spider Center-Post Glass Railing Kit
Item# P642CPS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Polished Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachments sold separately
- Two standard stainless finishes; custom powder paint finishes available
- Standard post heights: 36" (914 mm) and 42" (1.07 m)
- Custom post heights available on special order

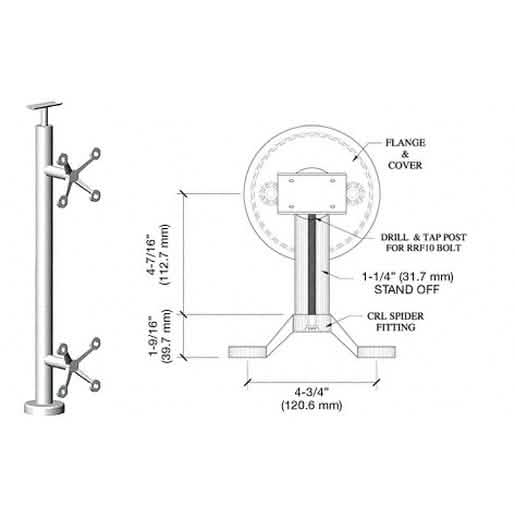

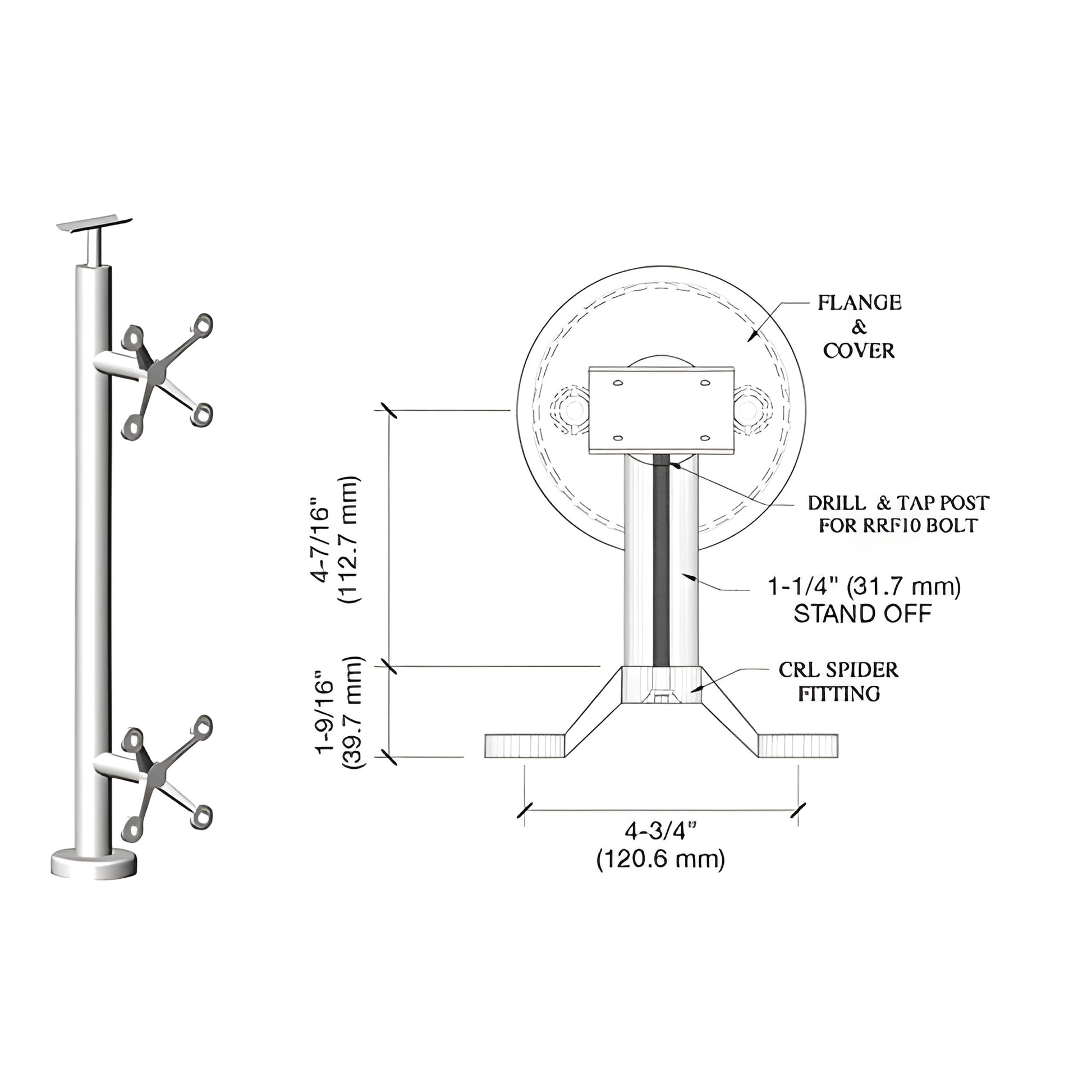

CRL P6 Spider Post Railing Kits (SKU: P642CPS) are manufactured from Schedule 40, 1.9" (48 mm) diameter stainless steel tubing and are engineered for guard rail and handrail applications. These stainless steel spider post railing kits support 1-1/4" (32 mm) or 1-1/2" (38 mm) diameter horizontal tubing and include a base plate, welded top saddle, and factory-mounted fixed glass spider fittings. For top rail fasteners, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Most shipping weights are approximate and have not been verified. If an exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Order the CRL P6 Spider Post Railing Kit (P642CPS) or contact CRL for custom finishes and post heights.
