CRL 42" P6 Brushed Stainless Spider 90° Corner Glass Railing Kit
Item# P642LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Base Plate Diameter
4-3/4 in. (121 mm)
Base Plate Mounting Holes
2
Base Plate Thickness
3/8 in. (10 mm)
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Mounting Hole Diameter
9/16 in. (14 mm)
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachments sold separately (purchase glass spider fittings separately)
- Two standard stainless finishes; custom powder paint finishes available
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available on special order

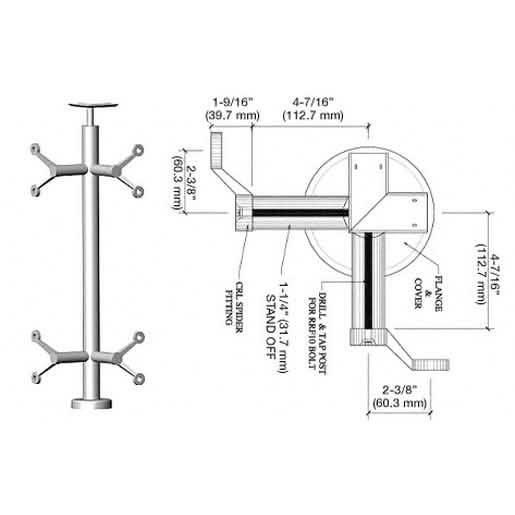

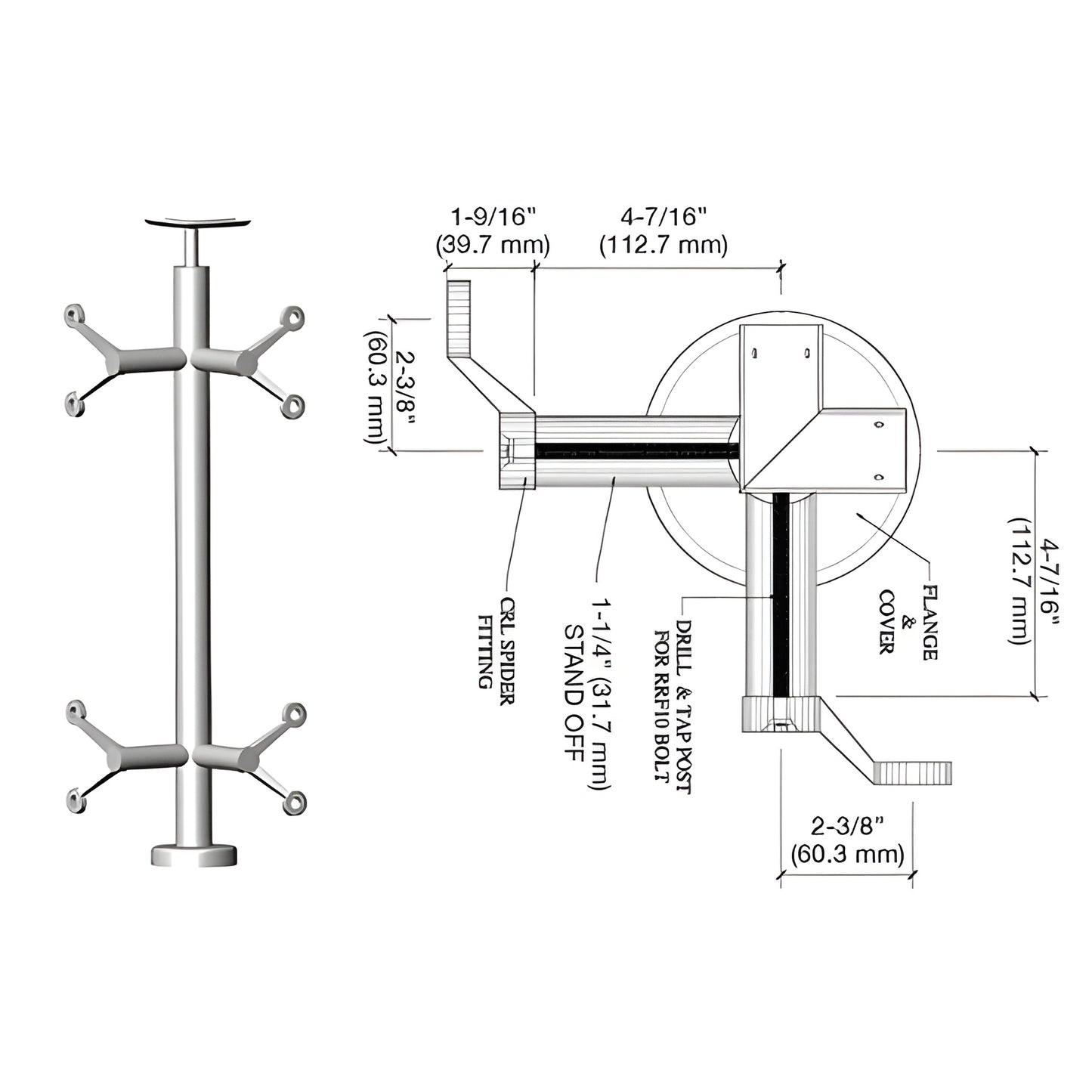

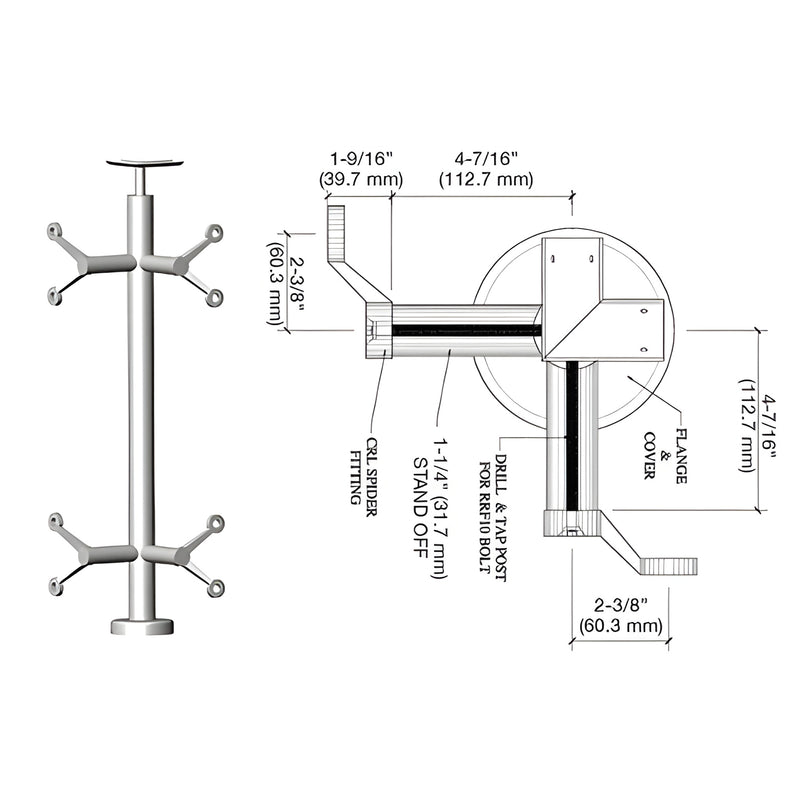

CRL P6 Spider Post Railing Kits (SKU: P642LBS) are manufactured from Schedule 40 1.9" (48 mm) diameter stainless steel tubing and are engineered for guardrail and handrail applications. These kits support 1-1/4" (32 mm) or 1-1/2" (38 mm) diameter horizontal tubing and come complete with a base plate, welded top saddle, and factory-mounted fixed glass spider fittings—ideal for stainless steel glass railing projects and commercial-grade balcony systems. For top rail attachment screws specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Most shipping weights are approximate and have not been verified. If exact shipping weight is required to determine shipping costs prior to order placement, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key features: Schedule 40 1.9" stainless tubing, factory-mounted fixed glass spider fittings, custom finish and height options—perfect for stainless steel spider post railing and glass balustrade installations. Order SKU P642LBS or contact CRL for a quote and lead times.
