CRL Brushed Stainless 42" P8 Series 180º Center Post Fixed Fitting Railing Kit
Item # P8F42CBS
$2,370.18
CAD
Overview
| SKU | P8F42CBS |
|---|---|
| Sold As | 1 Each |
| Base Plate Length | 5 in. (127 mm) |
| Base Plate Mounting Holes | 4 |
| Base Plate Thickness | 3/8 in. (10 mm) |
| Finish/Color | Brushed Stainless Steel |
| Material | Stainless Steel |
| Mounting Hole Diameter | 9/16 in. (14 mm) |
Description
- For Use With 1/2" (12 mm) to 1" (25 mm) Thick Panels
- Glass Attachment Fittings Sold Separately
- Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
- Custom Post Heights Also Available
- Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

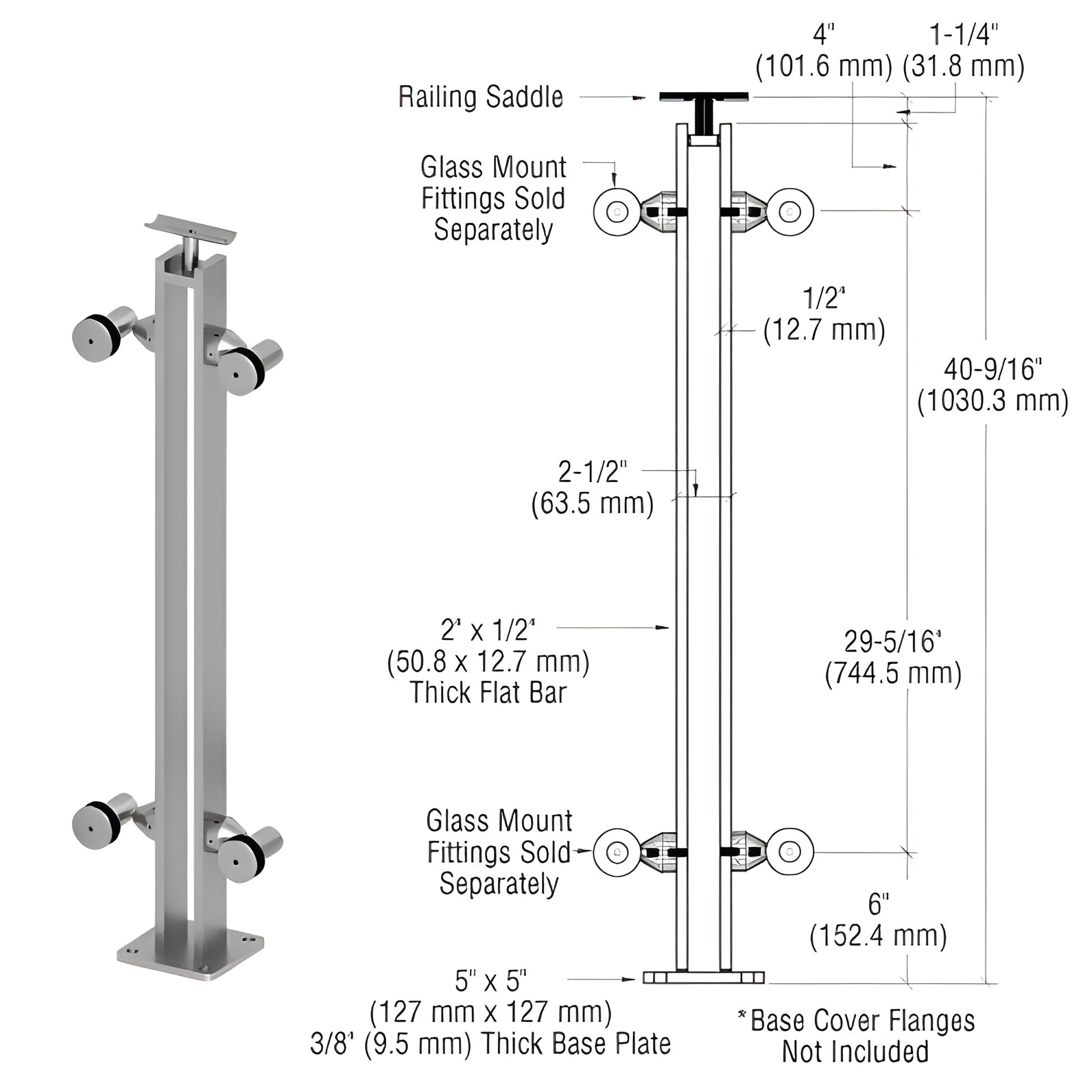

These innovative Post Railing Kits can be used for guard rail or hand rail applications. CRL's Surface Mounted Post Railing Kits are manufactured from 1/2" x 2" (12.7 x 50.8 mm) Stainless Steel Flat Bars. Saddles support 1-1/4" or 1-1/2" (31.8 or 38 mm) Schedule 40 Hand Rail Tubing. Kits are supplied complete with a Base Plate and Welded Top Saddle. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws come 50 per pack.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
