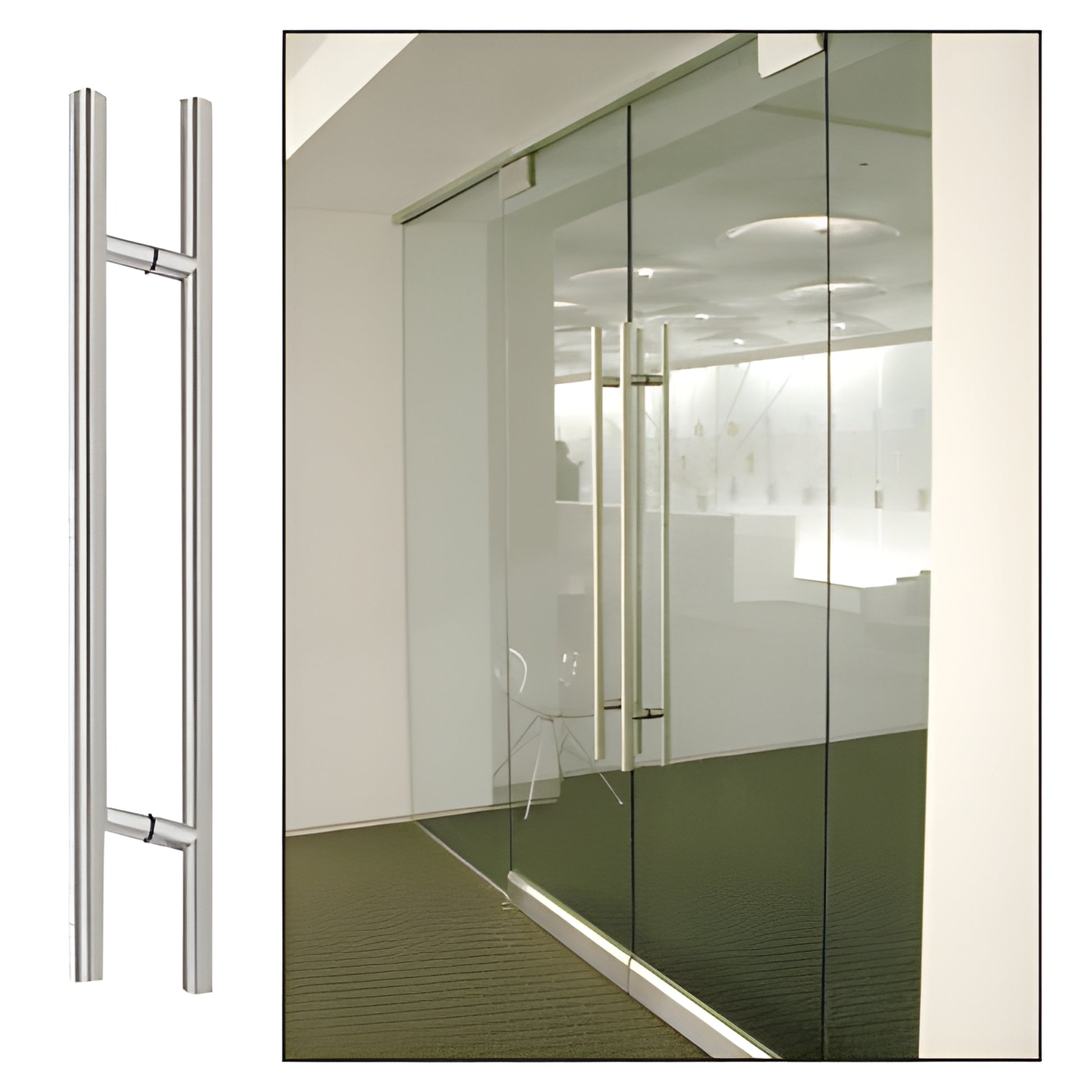

CRL 48 in Brushed Stainless Ladder-Style Back-to-Back Glass Door Pull
Item# 48LPBS
Shipping Weight: 14.65 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.65 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
36 in. (914 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
48 in. (1219 mm)
Style Washers
No
- Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m)
- Finish options: Brushed or Polished Stainless Steel
- Custom lengths, designs, and finishes available on special order
- Made of 304 grade stainless steel (SKU: 48LPBS)
CRL Straight Style Ladder Pulls include two mid-posts and mounting fasteners for secure back-to-back installation on tempered glass doors 3/8" to 3/4" (10 to 19 mm) thick, or on 1-3/4" (44 mm) thick wood or aluminum doors. For larger spans, order Custom Ladder Pulls with additional mid-posts (maximum mid-post spacing: 72" / 1.83 m) to improve support for commercial glass door applications.
SPECIFICATIONS:
Compatible with 3/8" to 3/4" (10 to 19 mm) thick tempered glass or 1-3/4" (44 mm) thick aluminum or wood doors.
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing — durable, corrosion-resistant commercial door hardware.
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes for tempered glass door pull installation.
NOTE:
Click here to view our single-sided ladder pulls in all available sizes and finishes.
Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs before ordering, please contact CRL Customer Service. Product images are a representation; actual colors may vary with monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
For commercial glass door ladder pulls in 304 stainless steel with custom options and reliable back-to-back mounting, request a quote or contact CRL Customer Service to order SKU 48LPBS today.
