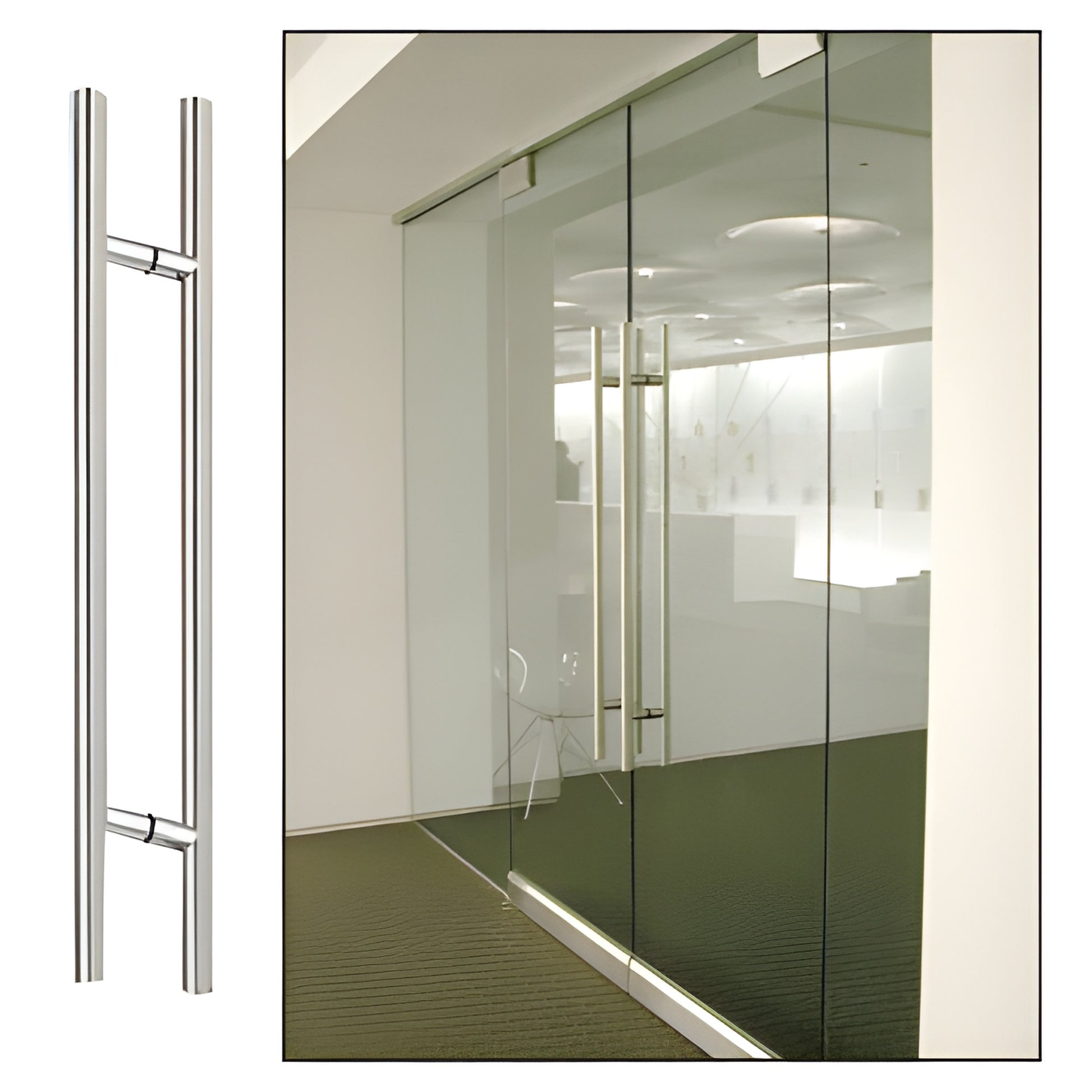

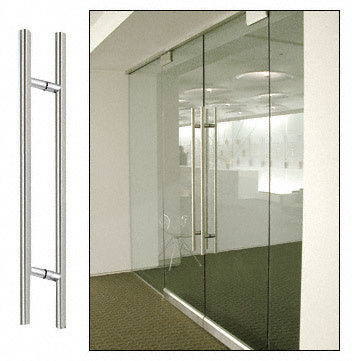

CRL 48" Polished Stainless Ladder-Style Back-to-Back Door Pull
CRL 48" Polished Stainless Ladder-Style Back-to-Back Door Pull
Regular price
$726.86 CAD
Regular price
Sale price
$726.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 48LPPS
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
36 in. (914 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
48 in. (1219 mm)
Style Washers
No
Overview
- Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m)
- Brushed or polished 304 stainless steel finish
- Custom lengths, designs, and finishes available on special order
CRL Straight Style Ladder Pulls — heavy-duty ladder pull handles designed for commercial and residential glass or wood doors. Each straight-style pull includes two mid-posts and mounting fasteners for back-to-back installation on 3/8" to 3/4" (10–19 mm) tempered glass or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum mid-post spacing is 72" (1.83 m). Ideal as a stainless steel ladder pull handle for glass doors and tempered glass door pulls.
SPECIFICATIONS:
Suitable for 3/8" to 3/4" (10–19 mm) tempered glass or 1-3/4" (44 mm) thick aluminum or wood doors.
CONSTRUCTION:
1-1/4" (32 mm) diameter, 304 grade stainless steel tubing.
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes in glass.
NOTE:
Click here to view single-sided ladder pulls in all available sizes and finishes.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: 48LPPS
Need help specifying the right ladder pull for glass doors or commercial entryways? Contact us to order or request custom options.
