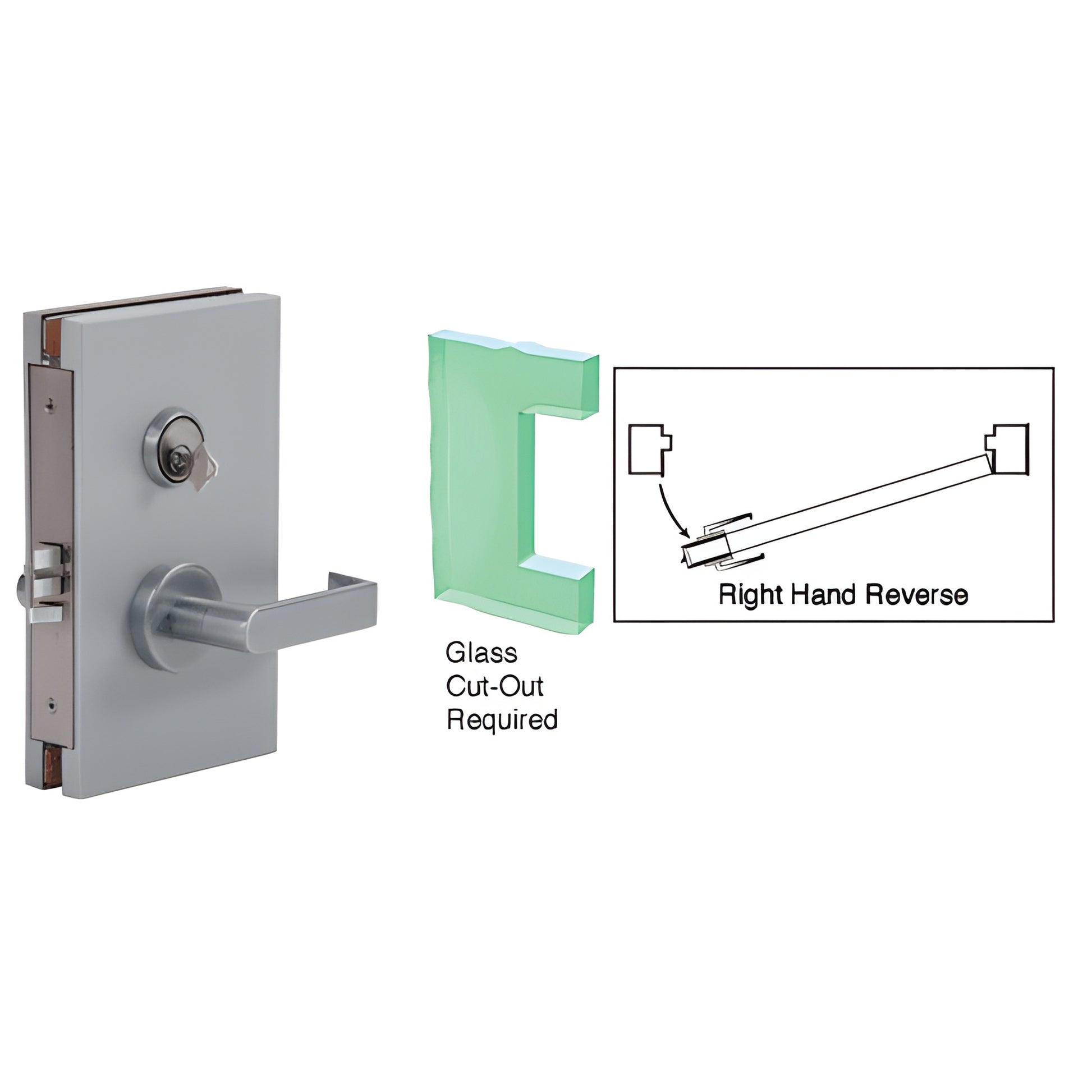

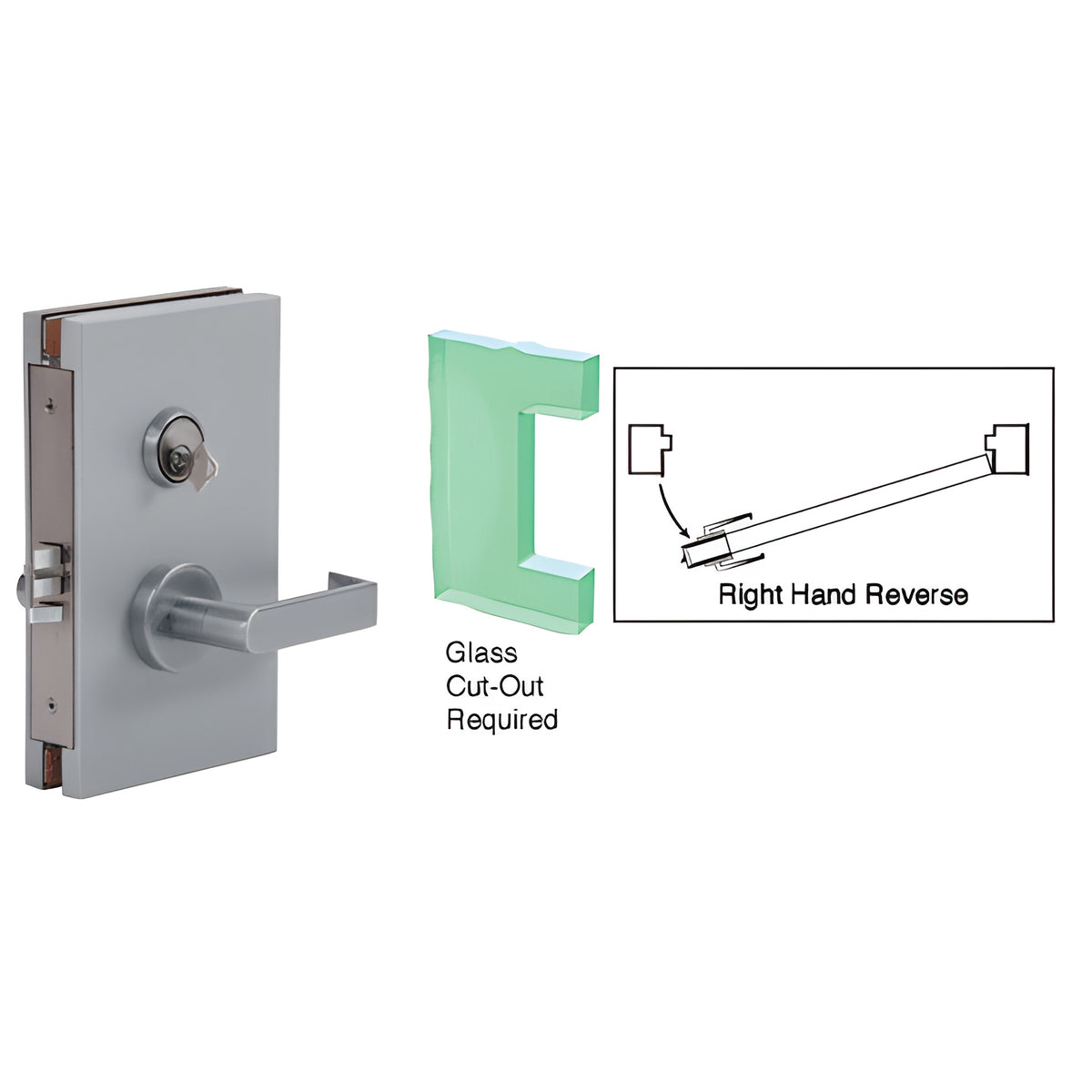

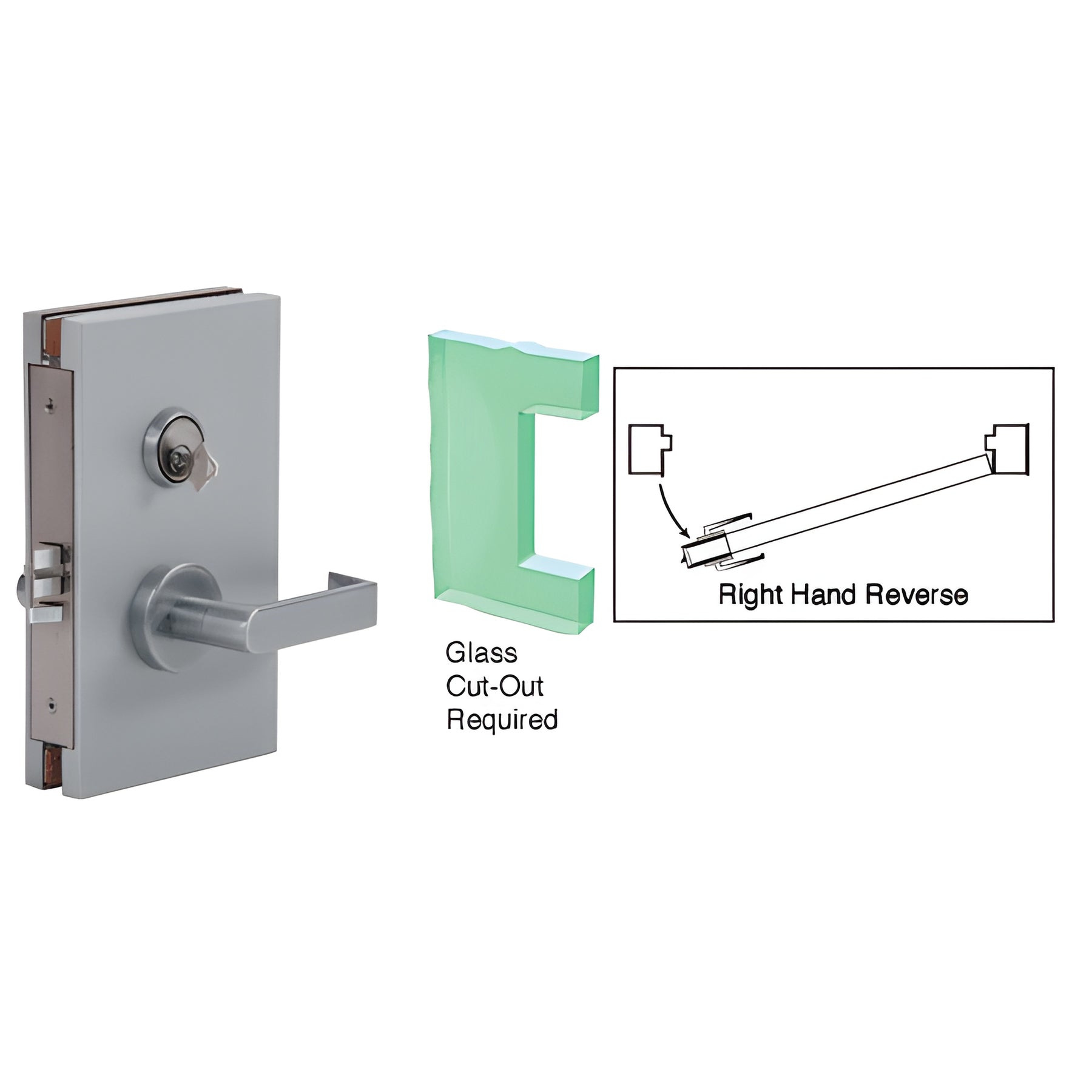

CRL Brushed Stainless 6x10 RHR Center Door Lock Deadlatch Classroom

• Five lock functions: Office, Entrance, Passage, Storeroom, Classroom
• Fits 1/2" (12 mm) tempered glass; custom units for other glass thicknesses on special order
• Ships in under a week
• Available in five finishes
• Hassle-free installation—no cement or silicone required
• Jamb-mount strike plates available on special order
• Designed for monolithic tempered glass doors

CRL 6" x 10" Center Locks with Deadlatch (SKU: DL611RMBS) offer versatile lock functions and reliable security for heavy glass doors. Engineered for 1/2" (12 mm) tempered glass, these glass door center locks provide a simple glass cut-out installation with no messy cement or silicone. Available left- and right-handed and in five attractive finishes, they are an ideal choice when you need a durable, attractive center lock for commercial glass doors.

Office Lock Function: Latchbolt operated by lever on either side (outside lever can be locked by rocker in faceplate) or by key outside. Auxiliary latchbolt deadlocks the main latchbolt to resist jimmying. Inside lever always retracts for egress.

Entrance Lock: Latchbolt operated by lever on either side (except when deadbolt is projected). Deadbolt operated by key outside and thumbturn inside. Inside lever retracts both latchbolt and deadbolt for secure egress.

Passage Lock: Latchbolt operated by lever on either side. Inside lever always retracts to allow exiting.

Storeroom Lock: Latchbolt operated by inside lever and by key outside; outside lever is fixed. Auxiliary latchbolt deadlocks the main latchbolt. Commonly used with electric strikes.

Classroom Lock: Latchbolt operated by lever either side except when outside lever is locked by key. Key operates latch and unlocks outside lever; inside lever always permits egress.

Stainless Steel Advisory:

For a heavy glass door center lock engineered for 1/2" tempered glass with multiple functions and quick shipping, choose SKU DL611RMBS. Contact us to order or request custom glass thickness options.
