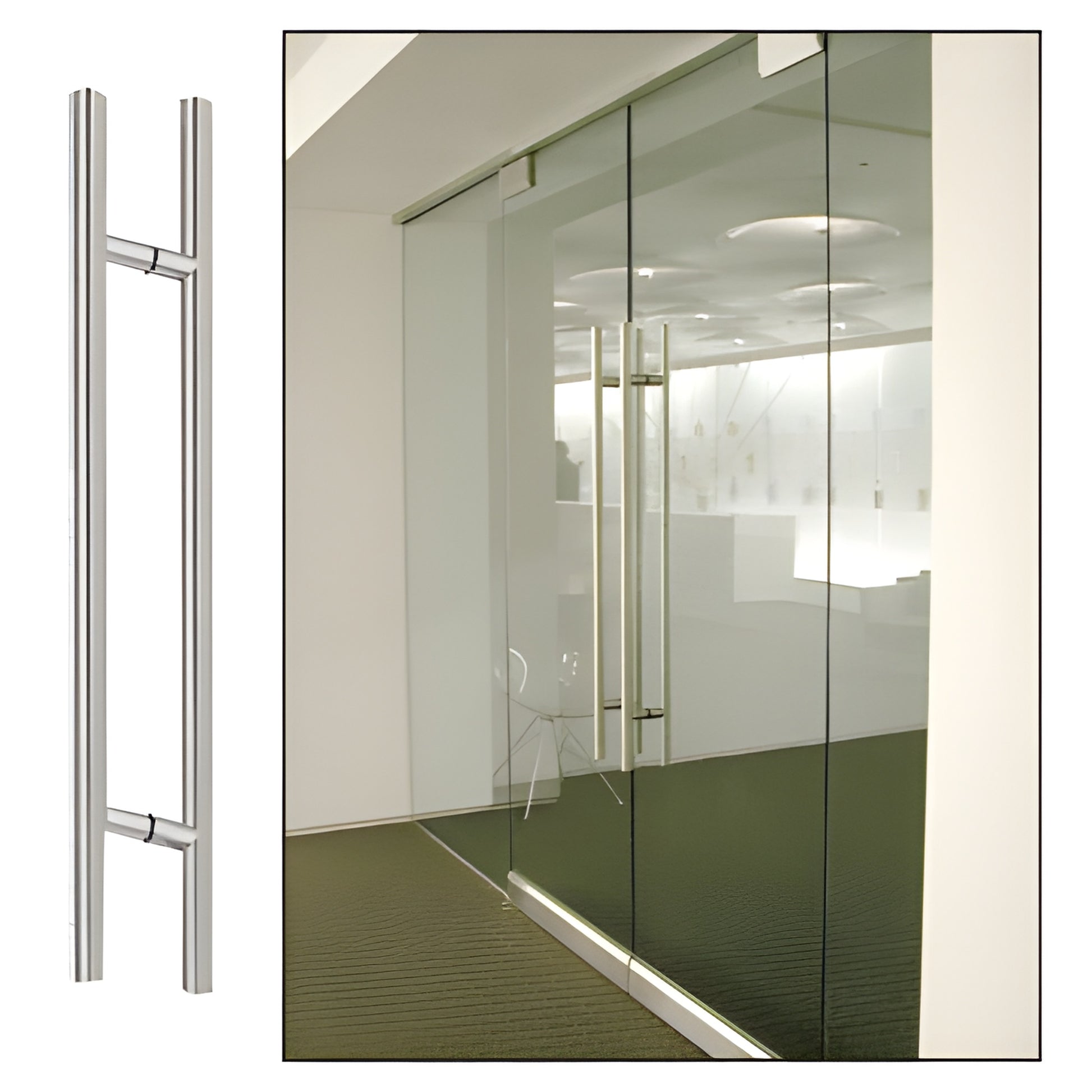

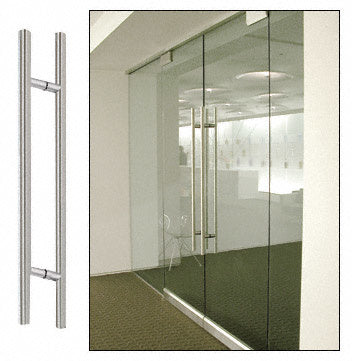

CRL 66" Brushed Stainless Extra-Long Ladder Back-to-Back Door Pull
CRL 66" Brushed Stainless Extra-Long Ladder Back-to-Back Door Pull
Regular price
$876.12 CAD
Regular price
Sale price
$876.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 66LPBS
Shipping Weight: 17.857 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.857 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
54 in. (1372 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
66 in. (1676 mm)
Style Washers
No
Overview
- Eleven sizes: 24" to 84" overall height (610 mm to 2.13 m)
- Available in brushed or polished stainless steel finishes
- Custom lengths, designs, and finishes available by special order
- Made of 304 grade stainless steel
CRL Straight Style Ladder Pulls include two mid-posts and mounting fasteners for back-to-back installation on 3/8" to 3/4" (10 to 19 mm) tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Custom ladder pulls (SKU 66LPBS) can be ordered with additional mid-posts for extra support; maximum mid-post spacing is 72" (1.83 m). These commercial glass door handles are ideal for storefronts, office entrances, and high-traffic doors where durable, ADA-friendly ladder pull handles are required.
SPECIFICATIONS:
Compatible with 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors.
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing.
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes.
NOTE:
Click here to view single-sided ladder pulls in all available sizes and finishes.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.
Need a custom size or finish for your commercial glass door handle? Contact CRL Customer Service or order SKU 66LPBS today.
