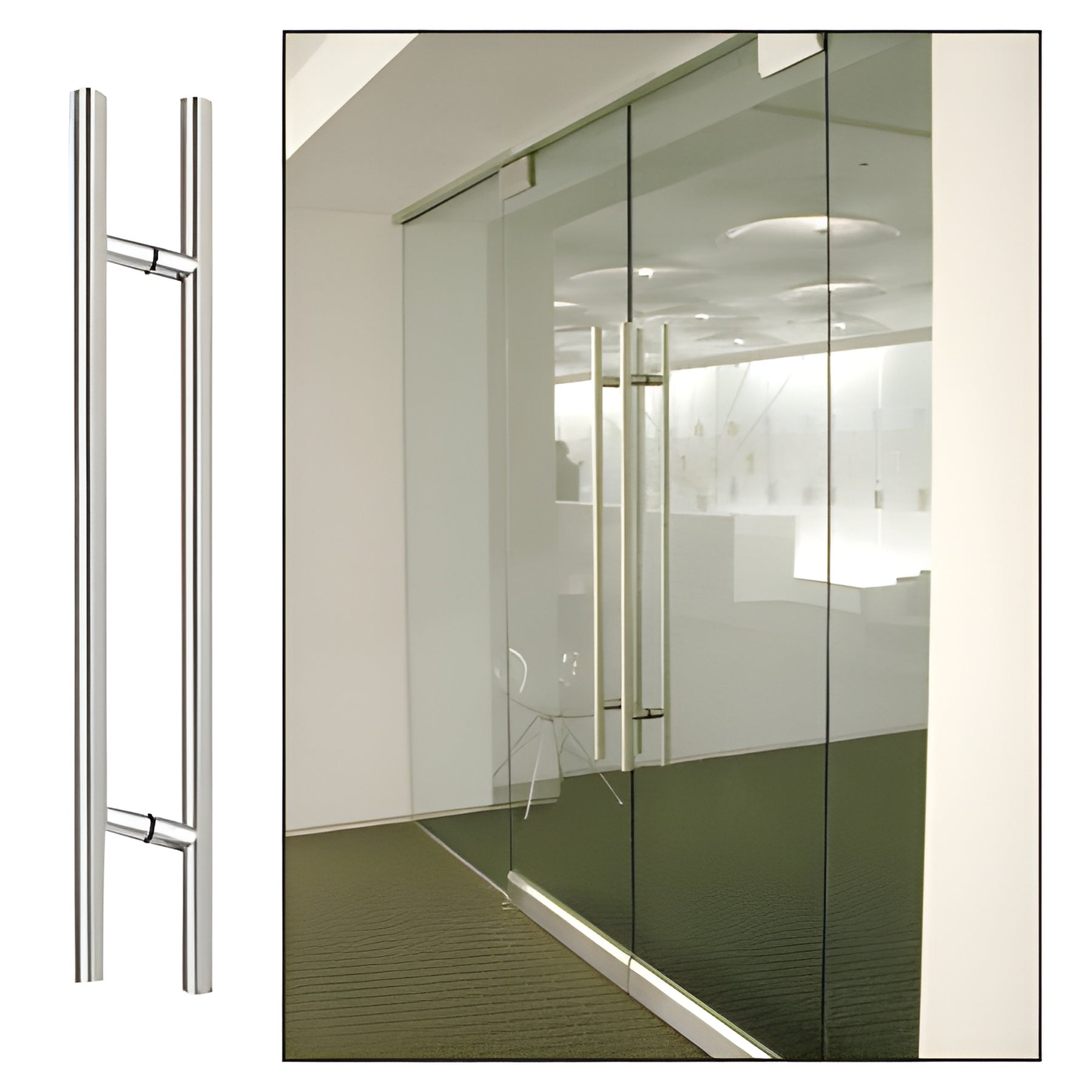

CRL 66" Polished Stainless Ladder-Style Back-to-Back Glass Door Pull
CRL 66" Polished Stainless Ladder-Style Back-to-Back Glass Door Pull
Regular price
$942.33 CAD
Regular price
Sale price
$942.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 66LPPS
Shipping Weight: 17.857 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.857 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
54 in. (1372 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
66 in. (1676 mm)
Style Washers
No
Overview
- Eleven sizes: 24" to 84" (610 to 2134 mm) overall height
- Brushed or polished stainless steel finishes
- Custom lengths, designs, and finishes available on special order
- Made of 304 grade stainless steel
CRL Straight Style Ladder Pulls (SKU: 66LPPS) come with two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) tempered glass, or on 1-3/4" (44 mm) wood or aluminum doors. Built for commercial and residential applications, these stainless steel ladder pulls provide durable, architectural-grade door hardware. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum mid-post spacing is 72" (1.83 m).
SPECIFICATIONS:
Compatible with 3/8" to 3/4" (10 to 19 mm) thick tempered glass, or 1-3/4" (44 mm) thick aluminum or wood doors.
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing.
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes.
NOTE:
Click here to view our single-sided ladder pulls in all available sizes and finishes.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
For custom stainless steel ladder pulls, tempered glass door pulls, or to order SKU 66LPPS, contact CRL Customer Service or place your order online today.
