CRL Brushed Stainless Curved Bottom Door Patch with 1NT301 Insert

• 2-11/16" (68 mm) Pivot Setback
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

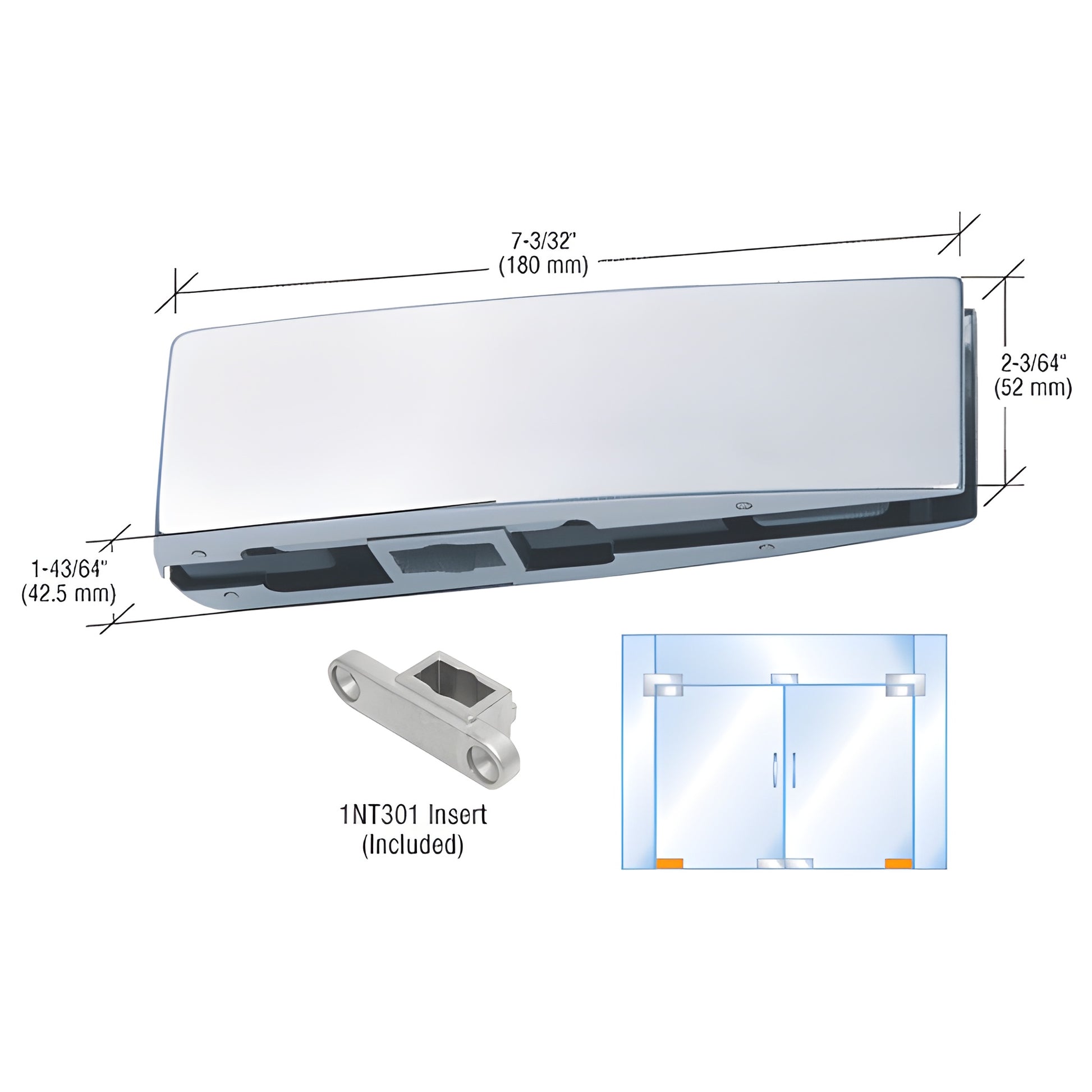

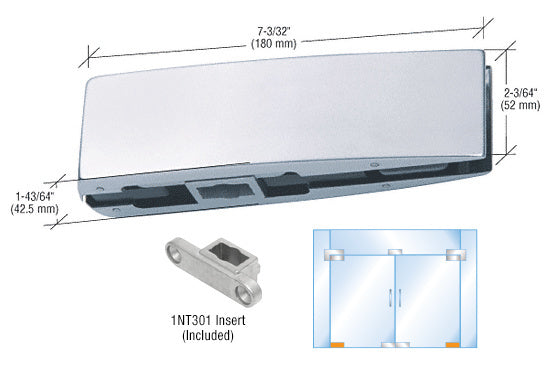

The CRL Curved Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free-Swing Pivots. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.


The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

IMPORTANT NOTE: Bottom Pivots or Floor Closer must be set to 2-11/16" (68 mm) setback to work with this patch fitting.


Product Warning:

These fittings are not for use with Laminated Glass.

Stainless Steel Advisory:
