- 2-11/16" (68 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The

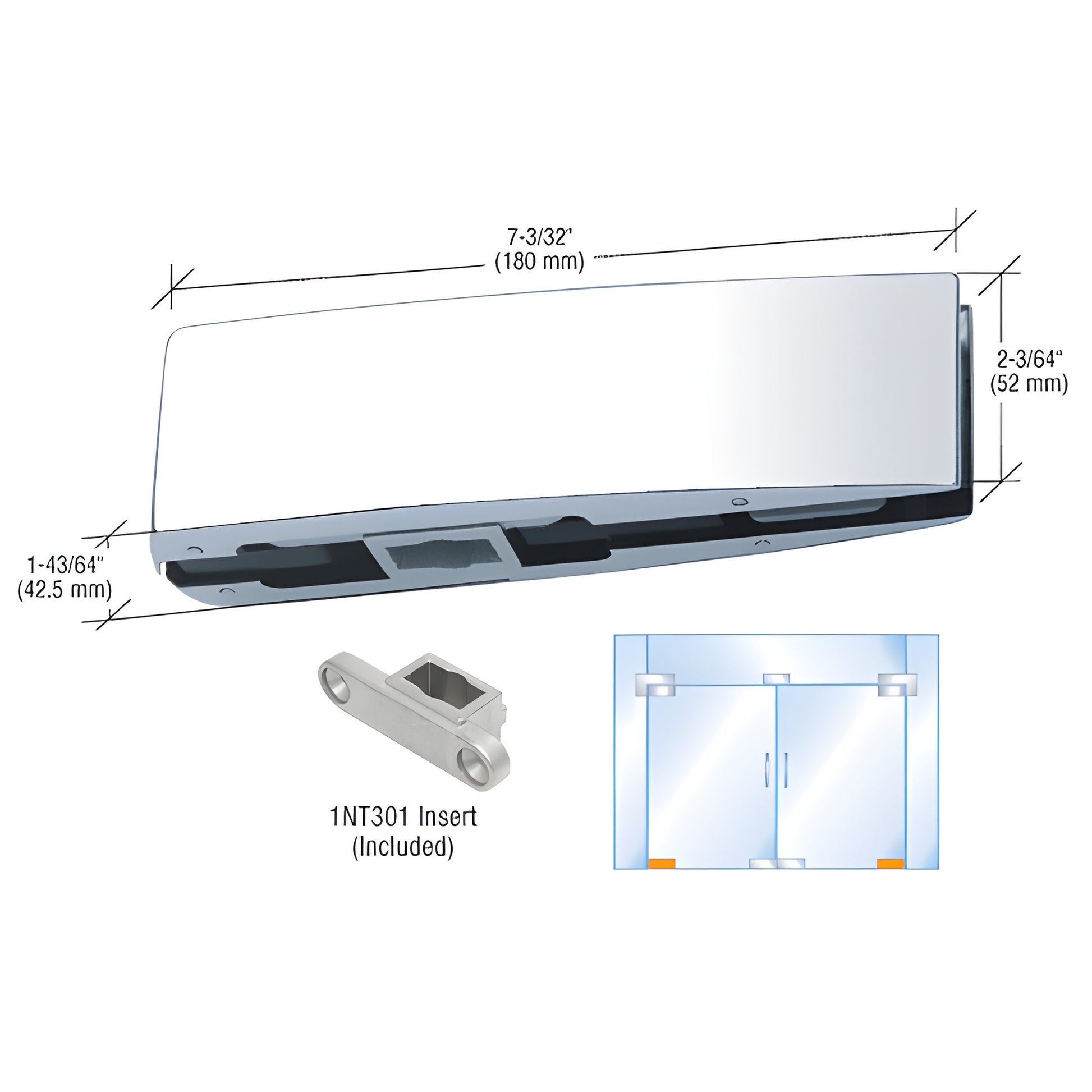

CRL Curved Bottom Door Patch Fitting
includes the Catalog Number
1NT301
Insert for use with tapered style spindle Floor Closers or Free-Swing Pivots. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH
Template and Instructions
IMPORTANT NOTE
Bottom Pivots or Floor Closer must be set to 2-11/16" (68 mm) setback to work with this patch fitting.
Product Warning
These fittings are not for use with Laminated Glass.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
