CRL Polished Stainless Curved Top Glass Door Patch Fitting 1NT304
CRL Polished Stainless Curved Top Glass Door Patch Fitting 1NT304
Regular price
$118.50 CAD
Regular price
Sale price
$118.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CPF20BPS
Shipping Weight: 1.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Insert Type
1NT304
Pivot Setback
2-11/16
Series
Curved
Type
Top
With Insert
Yes
Overview
- 2-11/16" (68 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass

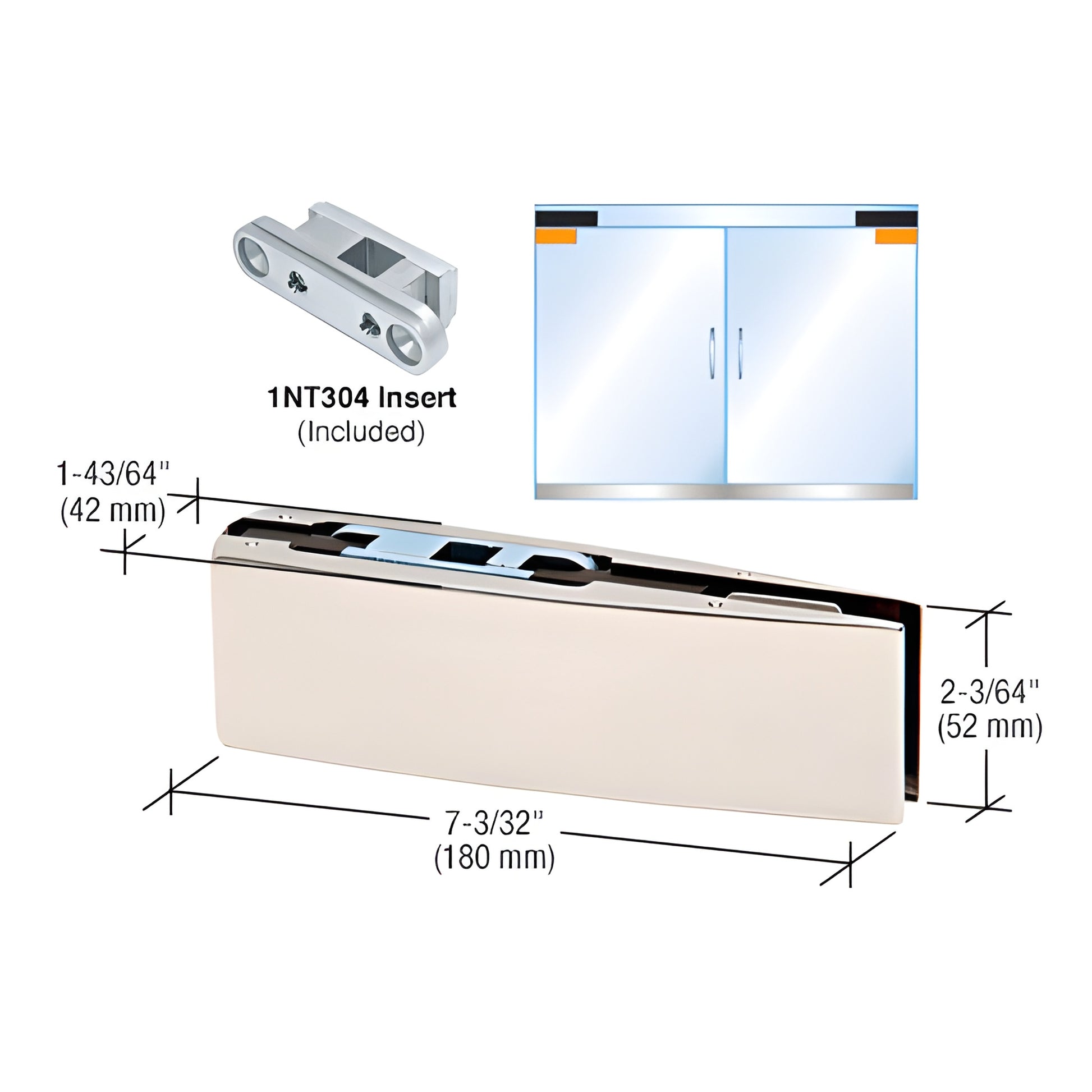

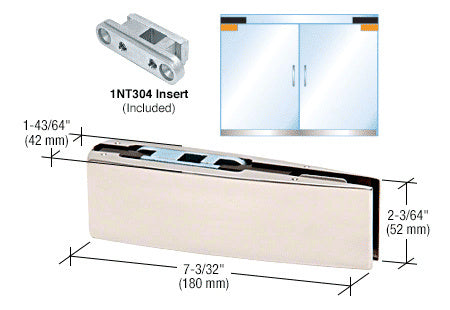

The CRL Curved Top Door Patch Fitting (SKU: CPF20BPS) includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that accept a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Supplied gaskets enable installation on either 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass. Ideal for frameless glass doors requiring a curved top patch fitting and precise pivot setback.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch.
COMES WITH:
Template and instructions.
IMPORTANT NOTE:
The door closer must be adjusted back 1/16" (1.6 mm) to achieve the 2-11/16" (68 mm) pivot setback for use with this patch fitting.
Product Warning:
These fittings are not for use with laminated glass.
The following guidelines apply when specifying frameless glass doors with this hardware:
MAXIMUM HEIGHT: 102" (2591 mm)
MAXIMUM WEIGHT: 194 lbs (88 kg)
MAXIMUM WIDTH: 42" (1092 mm)
If the door exceeds any of these limits, use full door rails.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For help with specification, ordering, or installation guidance for the CPF20BPS curved top door patch fitting, contact CRL or add this item to your cart now.
