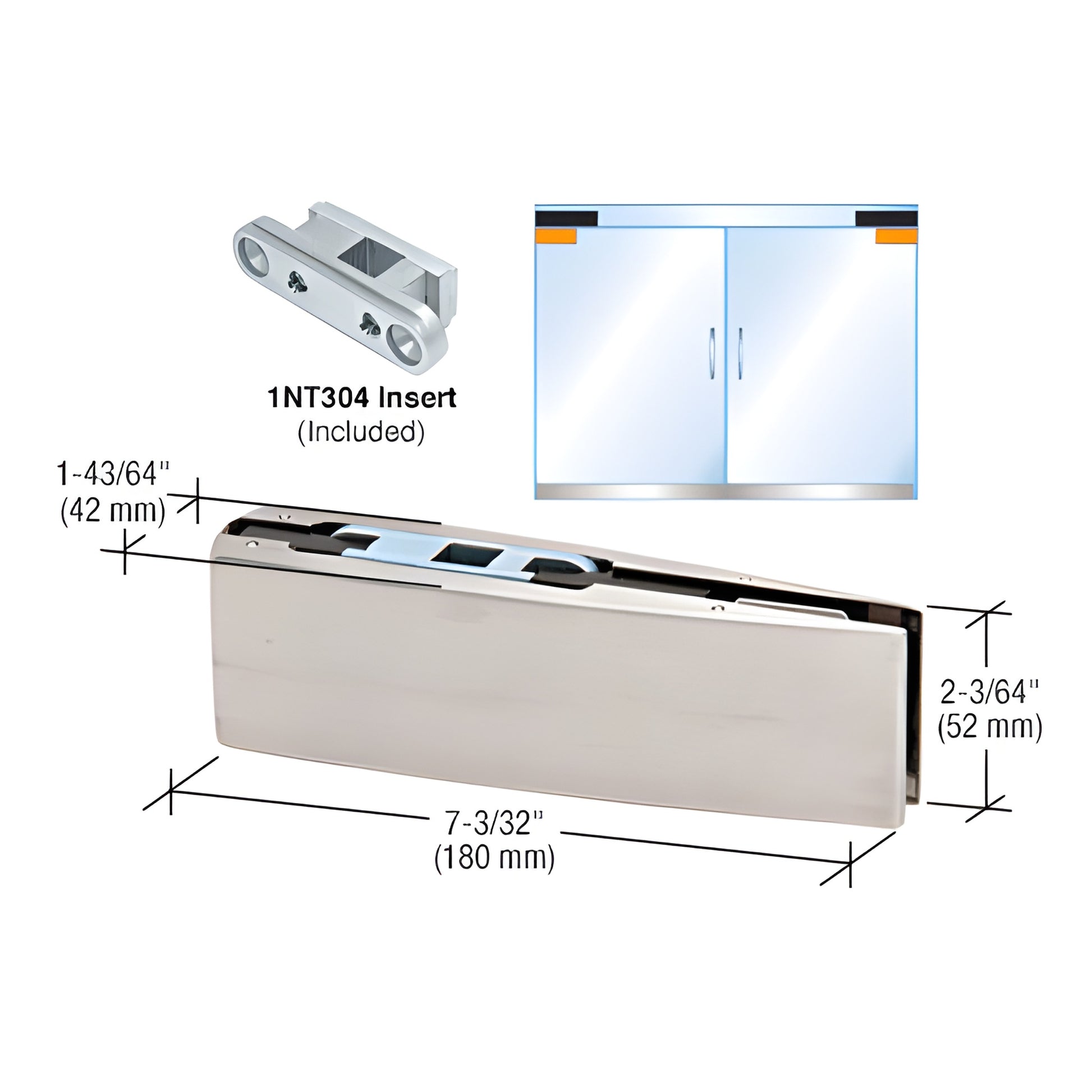

CRL Brushed Stainless Curved-Top Glass Door Patch Fitting with 1NT304
Item# CPF20BBS
Shipping Weight: 11.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.84 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Insert Type
1NT304
Pivot Setback
2-11/16
Series
Curved
Type
Top
With Insert
Yes
- 2-11/16" (68 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The CRL Curved Top Door Patch Fitting (SKU: CPF20BBS) is designed for frameless glass doors and pairs with the 1NT304 insert for use with our Overhead Concealed Door Closers that accept a 9/16" (14 mm) square, 3/4" (19 mm) long spindle. Gaskets are included so the patch fitting fits either 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass—ideal for commercial and residential glass door applications where a curved-top patch is required.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch
COMES WITH:
Template and instructions
IMPORTANT NOTE: Adjust the door closer back 1/16" (1.6 mm) to obtain the 2-11/16" (68 mm) pivot setback required for this patch fitting.
Product Warning:
Not for use with laminated glass.
Follow these guidelines when specifying a door with this hardware:
MAXIMUM HEIGHT: 102" (2591 mm)
MAXIMUM WEIGHT: 194 LBS (88 kg)
MAXIMUM WIDTH: 42" (1092 mm)
If the door exceeds any of these limits, use full door rails.
Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are of the actual product or a close representation; colors may vary depending on your monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Looking for a curved-top patch fitting for frameless tempered glass doors? Order the CPF20BBS or contact CRL for glass fabrication guidance and installation support.
CAD Drawings - dwg
