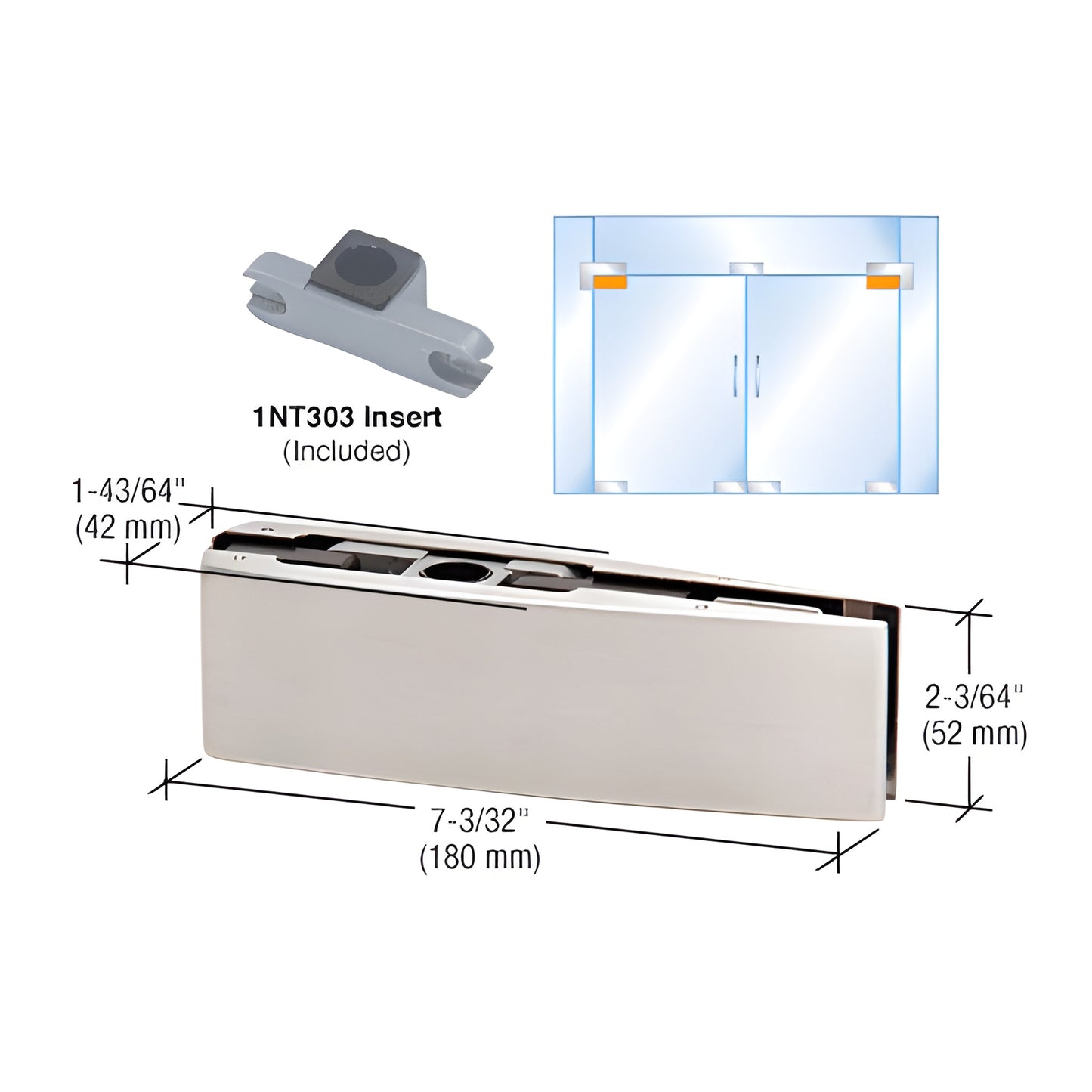

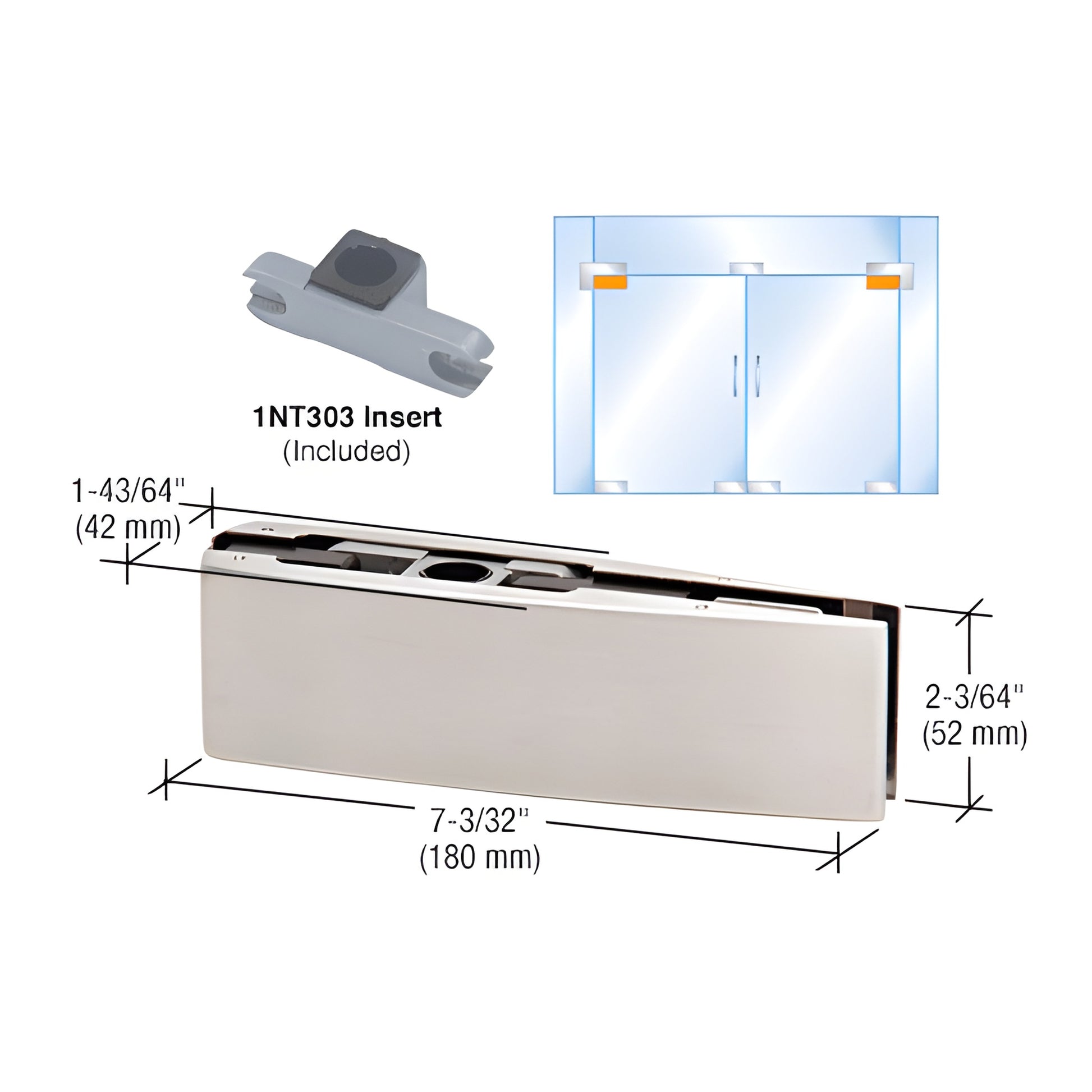

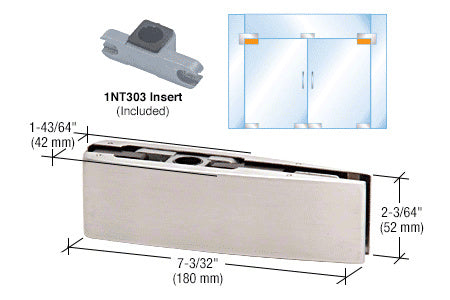

CRL Brushed Stainless Curved Top Glass Door Patch Fitting w/1NT303
Item# CPF20ABS
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in.3/8 in.,1/2 in. (10 mm,12 mm)
Insert Type
1NT303
Pivot Setback
2-11/16
Series
Curved
Type
Top
With Insert
Yes
- 2-11/16" (68 mm) pivot setback
- For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Designed for curved top glass door applications
The CRL Curved Top Door Patch Fitting (SKU: CPF20ABS) includes the 1NT303 insert for use with the CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) diameter pivots. Supplied gaskets allow secure installation with either 3/8" or 1/2" (10 or 12 mm) glass. Ideal for curved top glass door hardware and architectural glass door systems.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch.
COMES WITH:
Template and instructions.
Product Warning:
These fittings are not for use with laminated glass.
Use the following guidelines when fabricating a door with this patch fitting:
MAXIMUM HEIGHT: 102" (2591 mm)
MAXIMUM WEIGHT: 194 lbs (88 kg)
MAXIMUM WIDTH: 42" (1092 mm)
If the door exceeds any of these limitations, full door rails should be used.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; colors may vary with monitor settings.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for more details.
For curved top glass door hardware that fits 3/8" or 1/2" monolithic tempered glass and pairs with common 15 mm pivots, choose the CRL Curved Top Door Patch Fitting (CPF20ABS). Contact CRL or order now to complete your glass door assembly.
