CRL Brushed Stainless Patch Kit for Transom & 2 Sidelites - No Lock
CRL Brushed Stainless Patch Kit for Transom & 2 Sidelites - No Lock
Regular price
$571.10 CAD
Regular price
Sale price
$571.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE5BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- 'All-Glass' look for frameless installations
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (EUR205 patch lock optional)
CRL PHE5 European Door Kits (SKU: PHE5BS) include the hardware needed to install a free-swinging pivot door with fixed transom and two sidelites (glass and any additional supports for the fixed transom and sidelites are not included). Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for frameless tempered glass doors and commercial interior glass partitions where a clean, all-glass aesthetic is desired.

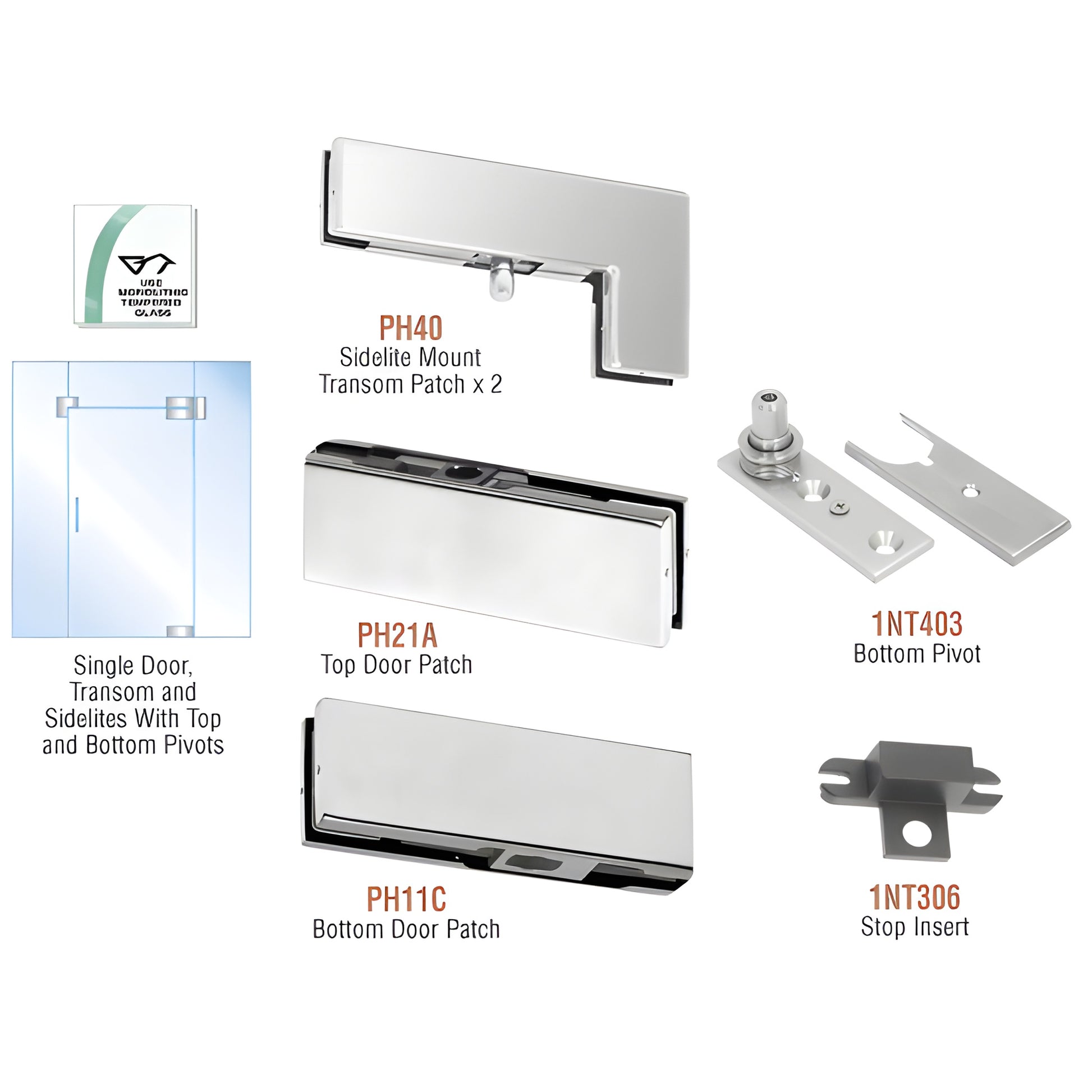

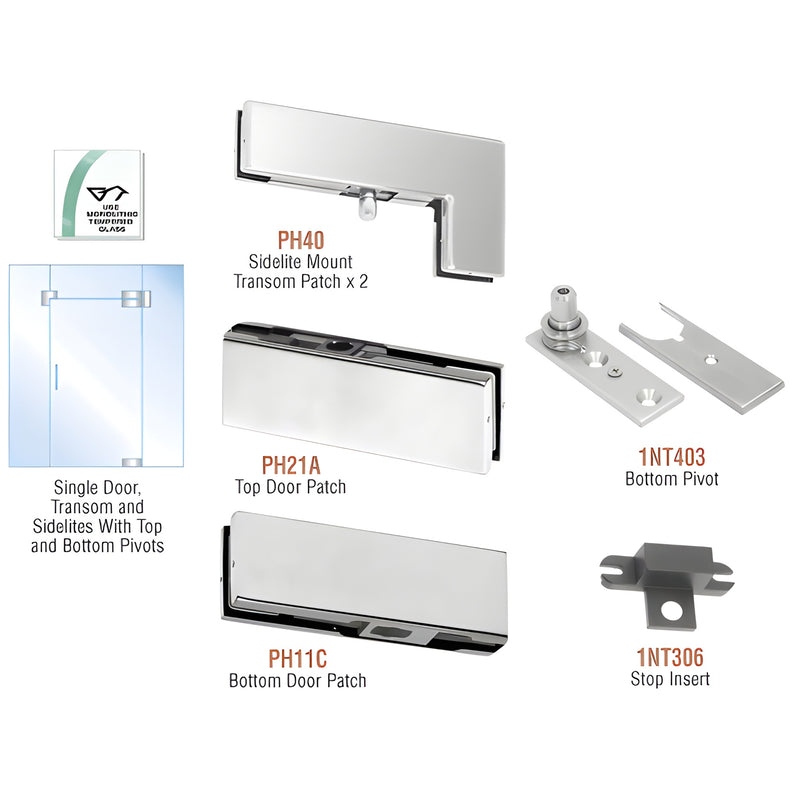

Kit Contains:
- 2 - PH40 Sidelite Mount Transom Patches
- 1 - PH21A Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT306 Stop Insert
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the CRL PHE5 European Door Kit (PHE5BS) for a premium all-glass pivot door solution—contact your CRL representative or add to cart to get started.
