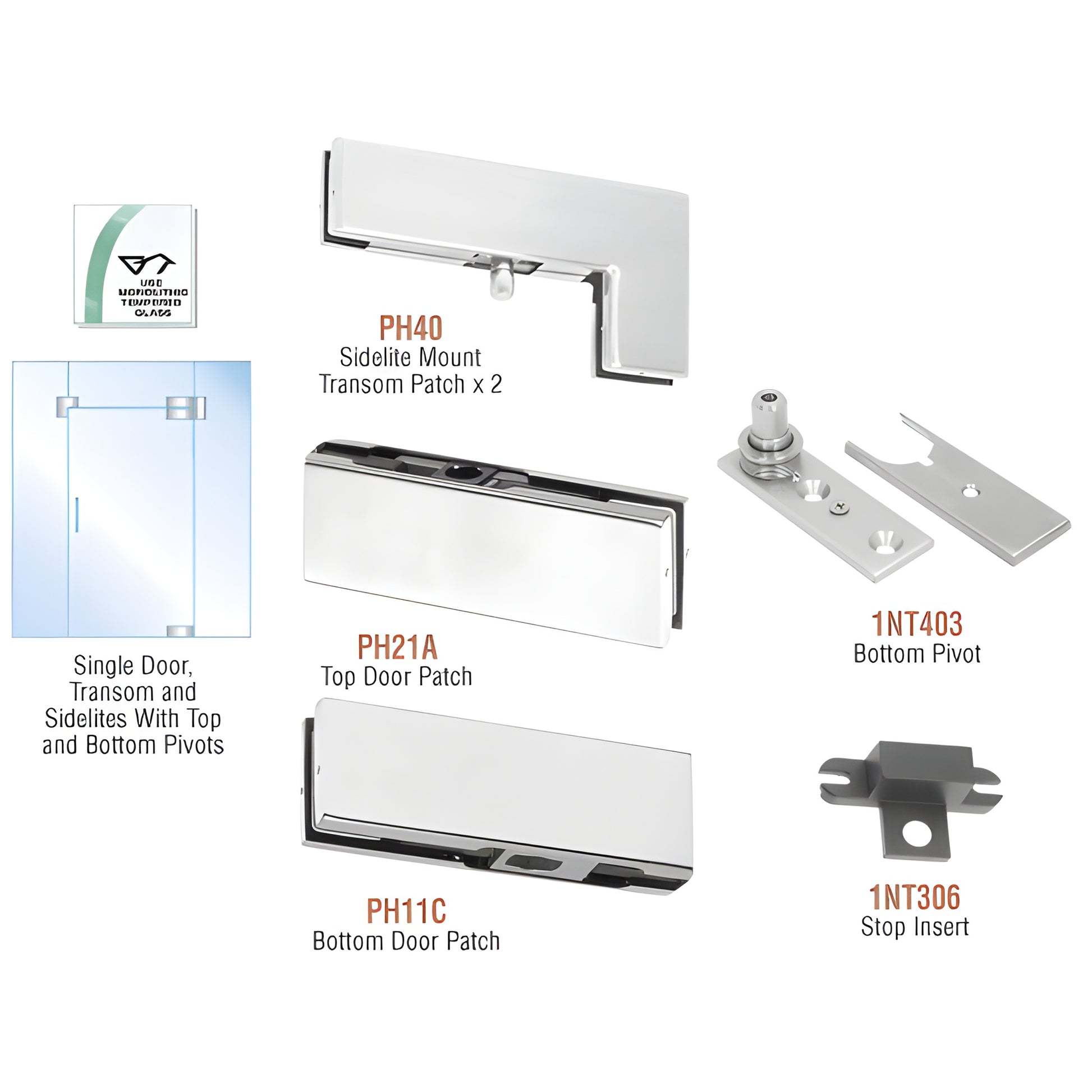

• CRL PHE5A frameless tempered glass door pivot kit, satin anodized patches and pivots for 3/8-1/2 glass
1 1

CRL

CRL Satin Anodized Patch Door Kit for Transom & 2 Sidelites, No Lock

CRL Satin Anodized Patch Door Kit for Transom & 2 Sidelites, No Lock

$563.95 CAD
$563.95 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE5A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • 'All-Glass' look for seamless storefronts
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (optional EUR205 patch lock)

CRL PHE5 European Door Kits (SKU: PHE5A) include all hardware needed to assemble a free-swinging frameless door with fixed transom and two sidelites, excluding glass and any extra supports for the fixed transom and sidelites. Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for frameless tempered glass door installations and commercial storefronts requiring European-style door hardware.

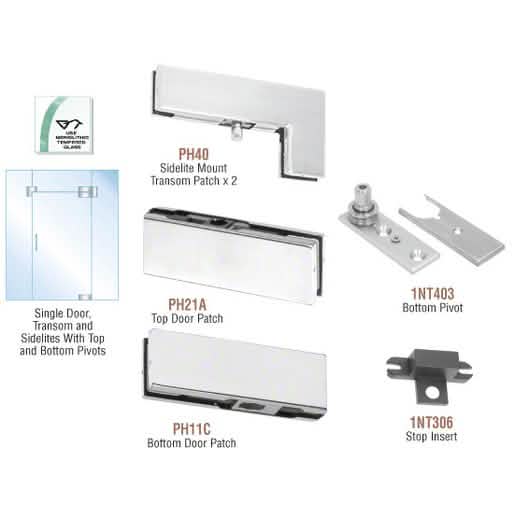

Kit Contains:
  • 2 - PH40 Sidelite Mount Transom Patches
  • 1 - PH21A Top Door Patch
  • 1 - PH11C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)

Kits with lock include one EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate. If exact weight is required to determine shipping costs for your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Shop the CRL PHE5A frameless tempered glass door pivot kit now or contact CRL Customer Service for technical assistance and ordering.
