CRL Brushed Stainless European Patch Door Kit for Glass - No Lock
CRL Brushed Stainless European Patch Door Kit for Glass - No Lock
Regular price
$256.99 CAD
Regular price
Sale price
$256.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE1BS
Shipping Weight: 3.245 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.245 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE1 European Patch Door Kits (SKU: PHE1BS) include all patch hardware required to assemble one single free-swinging tempered glass door (glass sold separately). Pivot setback is 2-9/16" (65 mm). Compatible with floor closers that use tapered spindles (floor closers ordered separately). These European patch kits are ideal for frameless commercial glass doors and storefront glass applications.

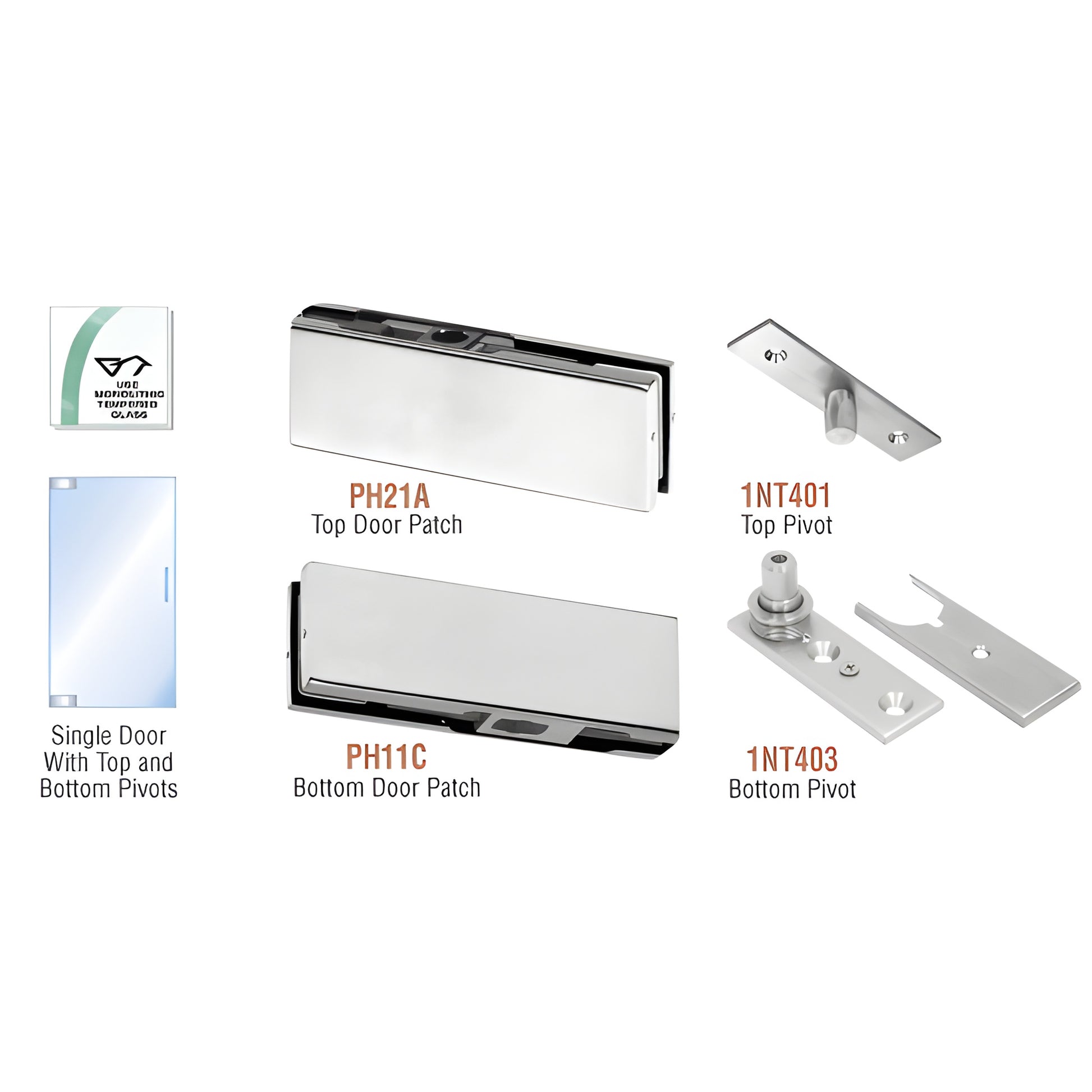

Kit Contains:
- 1 - PH21A Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT401 Top Pivot
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits ordered with a lock include one Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are available separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL PHE1 European patch door kit (PHE1BS) today to equip a frameless tempered glass door with durable pivot and patch hardware.
