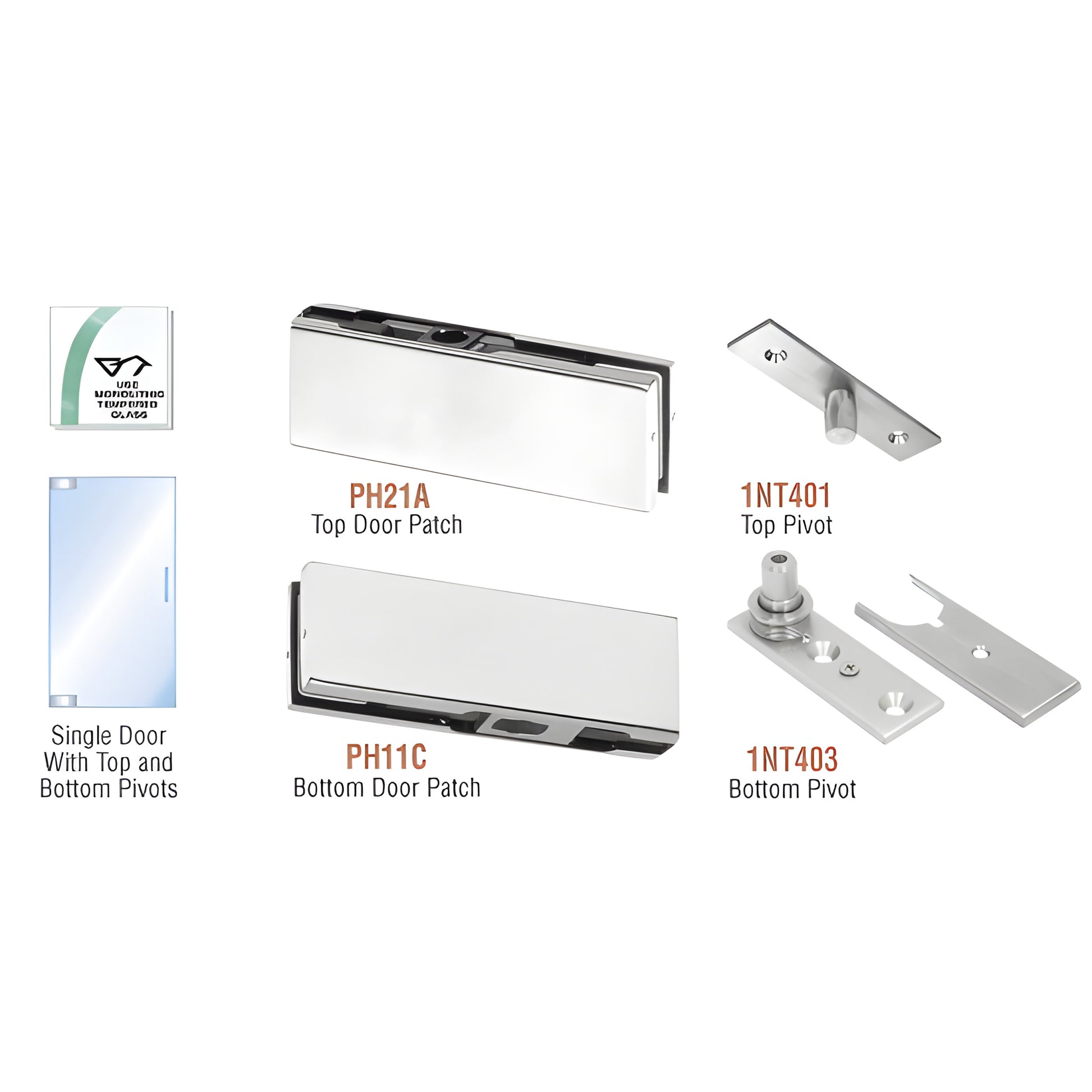

• PHE1A satin anodized European patch door kit - top/bottom patches (PH21A/PH11C) and pivots (1NT401/1NT403) for 3/8-1/2" glass
1 1

CRL

CRL Satin Anodized European Patch Kit for Frameless Doors - No Lock

CRL Satin Anodized European Patch Kit for Frameless Doors - No Lock

$255.56 CAD
$255.56 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE1A
Shipping Weight: 3.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks
CRL PHE1A European Patch Door Kit — complete patch door hardware kit for single free-swinging tempered glass doors. Includes top and bottom patch fittings, pivots, and gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. Pivot setback: 2-9/16" (65 mm). Compatible with floor closers that use tapered spindles (floor closers ordered separately). Ideal for frameless glass door installations and commercial interior glass doors.

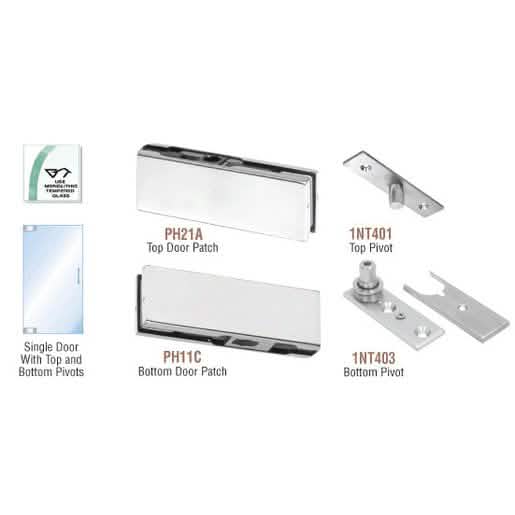

Kit Contains:
  • 1 - PH21A Top Door Patch
  • 1 - PH11C Bottom Door Patch
  • 1 - 1NT401 Top Pivot
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with lock include one Cat. No. EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.

Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.

SKU: PHE1A

Ready to order a PHE1A European patch door kit for 3/8" or 1/2" tempered glass? Contact CRL or add to cart now.
