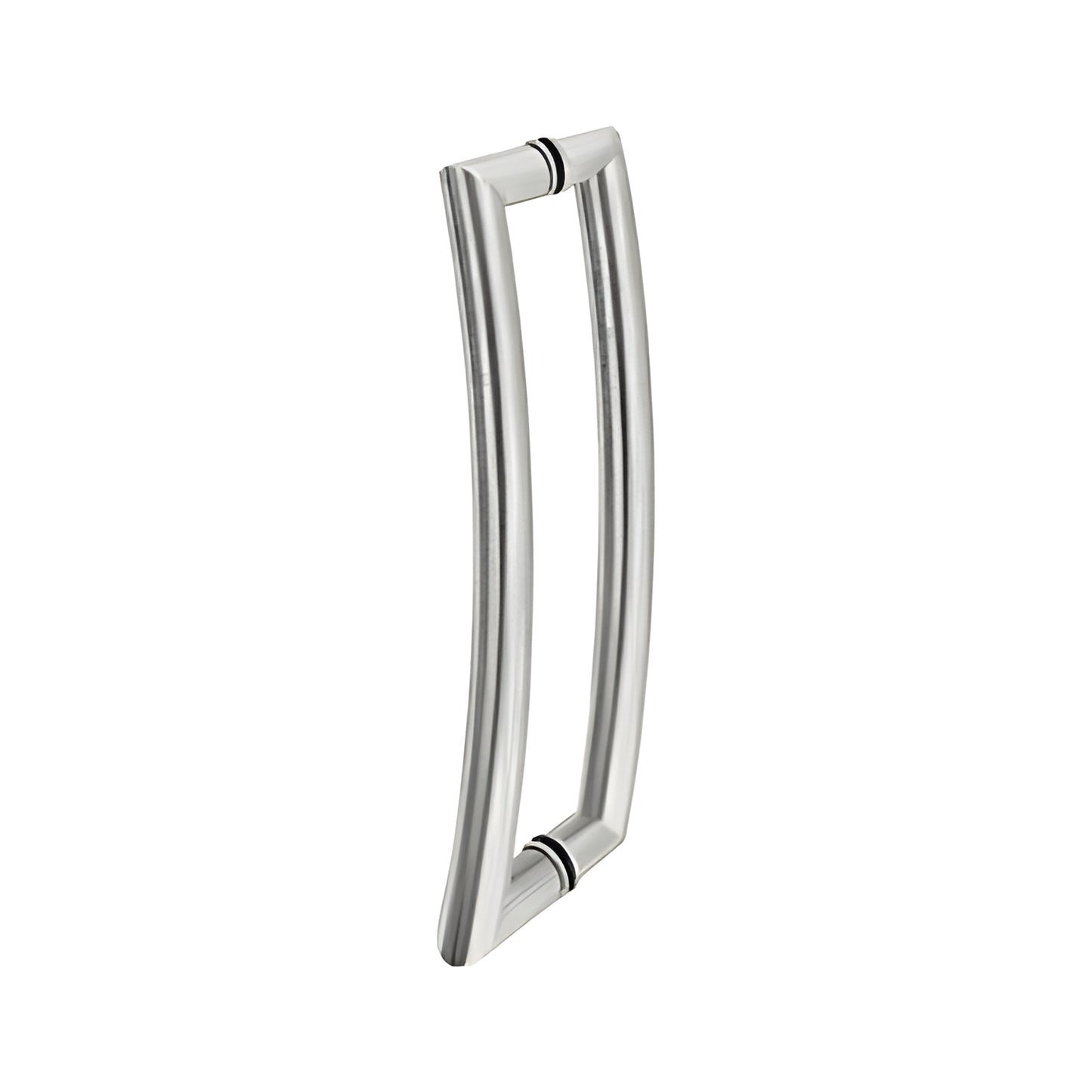

CRL 12 in Brushed Stainless Tubular Glass Door Pull, Curved Back-to-Back
Item# RC12X12BS
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Diameter
1 in. (25 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Extra Bolts Available, Sold Separately
CRL Curved Tubular Pull Handle — durable 1" stainless-steel tubular pull designed for back-to-back mounting on tempered glass doors. Ideal as a curved tubular pull handle for glass doors and commercial glass entryways, these glass door handles fit 3/8" to 3/4" (10–19 mm) tempered glass. Stock lengths: 12", 18", 24". Standard finishes: polished stainless and brushed stainless. Constructed from 1" (25 mm) diameter stainless-steel tubing for a strong, modern glass door pull solution. SKU: RC12X12BS.
SPECIFICATIONS:
For Use with: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Buy the RC12X12BS curved tubular pull handle for glass doors — reliable, polished or brushed finishes, ready for commercial and residential glass door installations. Order now to secure matching bolts and accessories.
CAD Drawings - dwg
