Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are the actual product or a close representation; colors may vary by monitor.
CRL

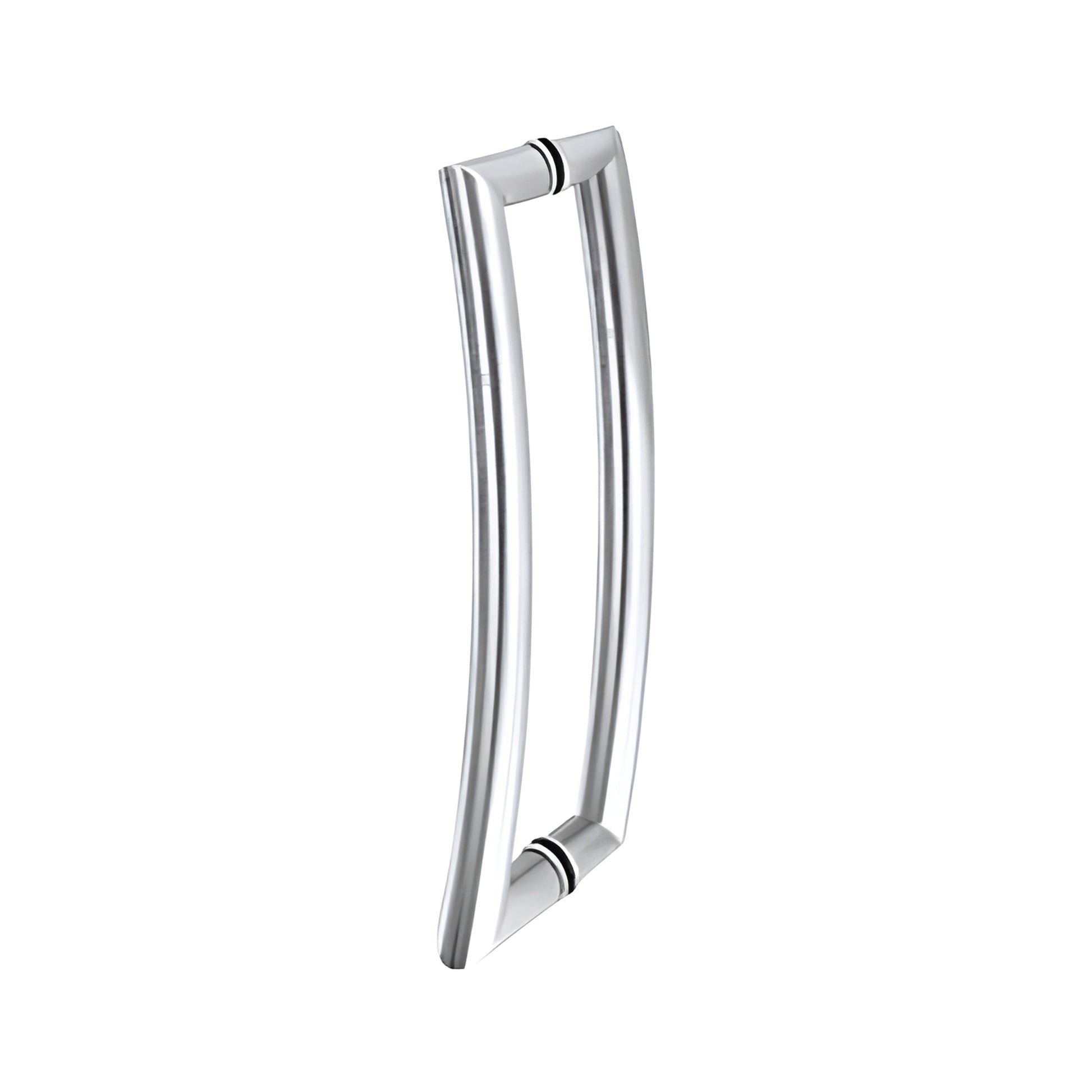

CRL 12" Polished Stainless Curved Glass Door Pull (Back-to-Back)
CRL 12" Polished Stainless Curved Glass Door Pull (Back-to-Back)
Regular price
$160.94 CAD
Regular price
Sale price
$160.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RC12X12PS
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Extra bolts available, sold separately
CRL Curved Tubular Pull Handle (SKU: RC12X12PS) are back-to-back mounted with supplied through-bolts and designed for tempered glass doors. Ideal as a curved tubular pull handle for glass doors, these stainless steel pulls fit 3/8" to 3/4" (10–19 mm) glass and are available in stock lengths of 12", 18" and 24". Constructed from 1" diameter stainless-steel tubing, finishes include polished stainless and brushed stainless — durable choices for commercial and residential glass door hardware.
SPECIFICATIONS:
For Use with: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel tubing
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: Through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Choose this curved tubular pull handle for glass doors when you need a sturdy, attractive back-to-back mounted stainless steel pull — order RC12X12PS today.
Specifications
CAD Drawings - dwg
