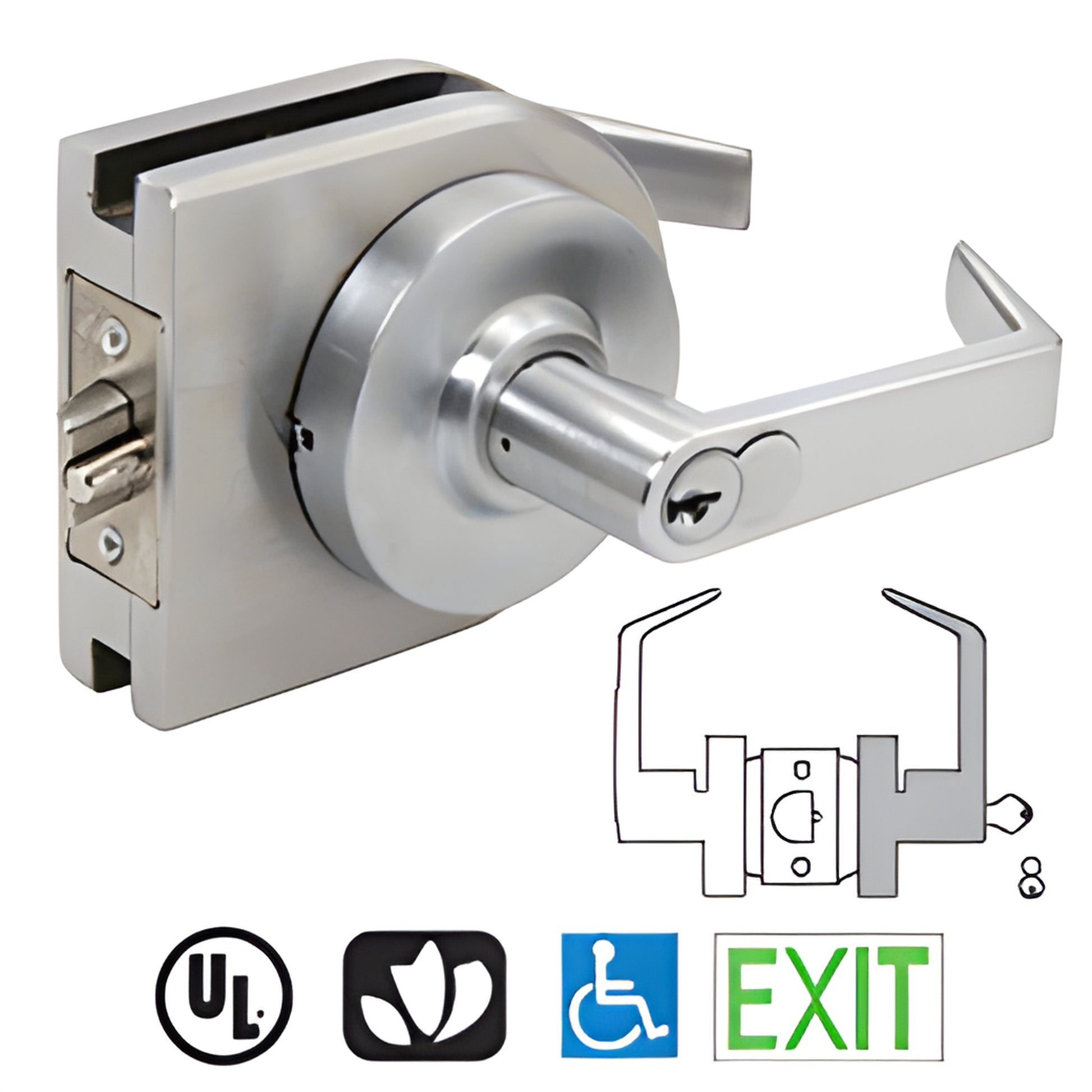

CRL Brushed Stainless Grade 1 Lever Lock Housing 7-Pin SFIC Storeroom
CRL Brushed Stainless Grade 1 Lever Lock Housing 7-Pin SFIC Storeroom
Regular price
$413.40 CAD
Regular price
Sale price
$413.40 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH72BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left- or right-hand doors
- Five architectural finishes available
- Four function options (Entrance, Storeroom, etc.)
CRL's Lever Lock Housings (SKU: LH72BS) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and Storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included. Ideal for frameless glass doors requiring a low-profile glass door lever lock housing and ANSI Grade 1 security.
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
• ANSI A117.1 and A.D.A. compliant for barrier-free accessibility
• C-UBC California Amended Uniform Building Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA 101 National Fire Protection — Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Looking for a low-profile lever lock housing for glass doors with ANSI Grade 1 security and ADA compliance? Order LH72BS or contact CRL for custom finishes and core options.
