CRL Grade 1 Matte Black 7-Pin SFIC Lever Lock Housing - Storeroom
CRL Grade 1 Matte Black 7-Pin SFIC Lever Lock Housing - Storeroom
Regular price
$482.29 CAD
Regular price
Sale price
$482.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH72MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Matte Black
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Low profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass — ideal for frameless glass door applications
- Supplied complete with ANSI A156.2 Grade 1 or Grade 2 lever lockset
- Non-handed and reversible for left- or right-hand glass doors
- Five architectural finishes available
- Four function options

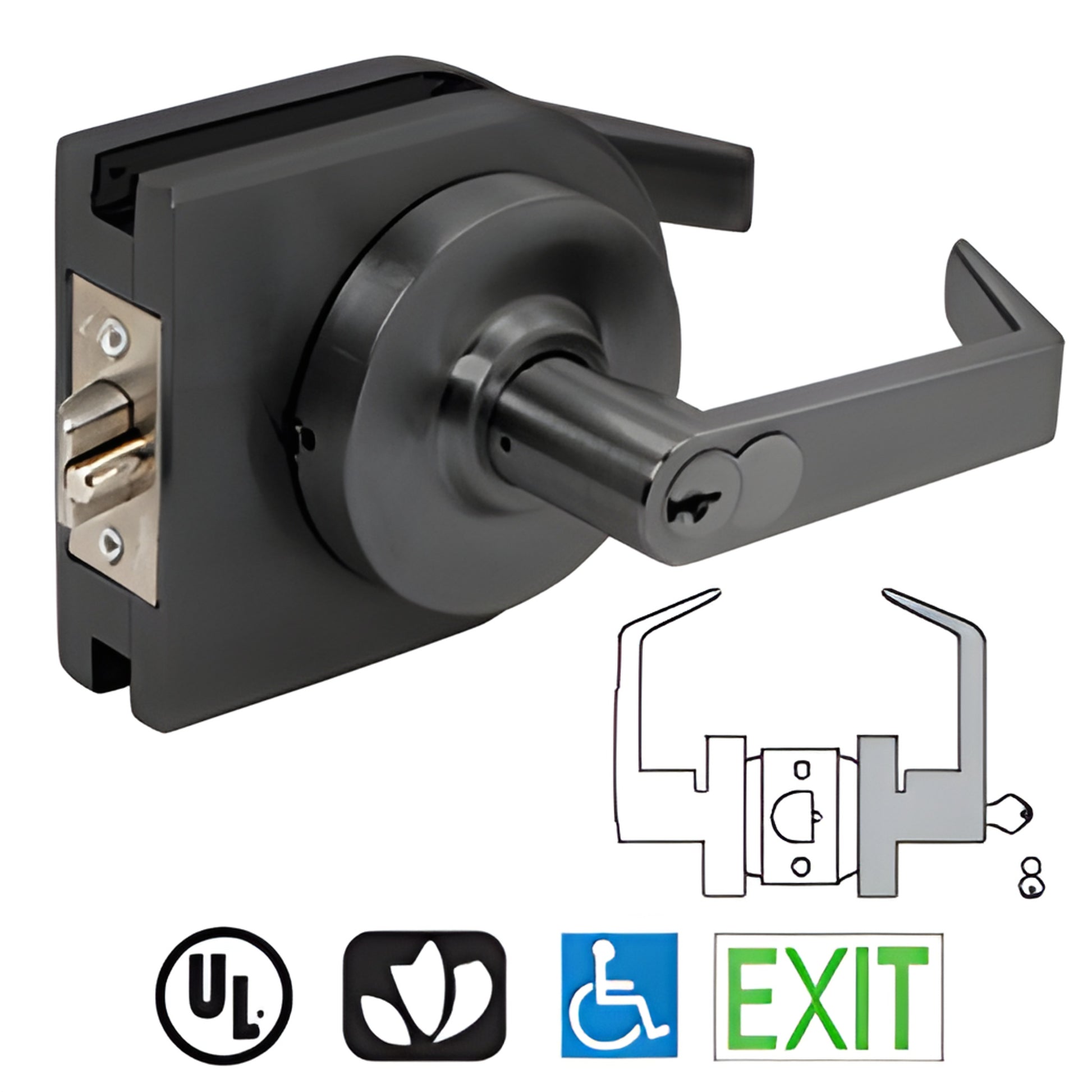

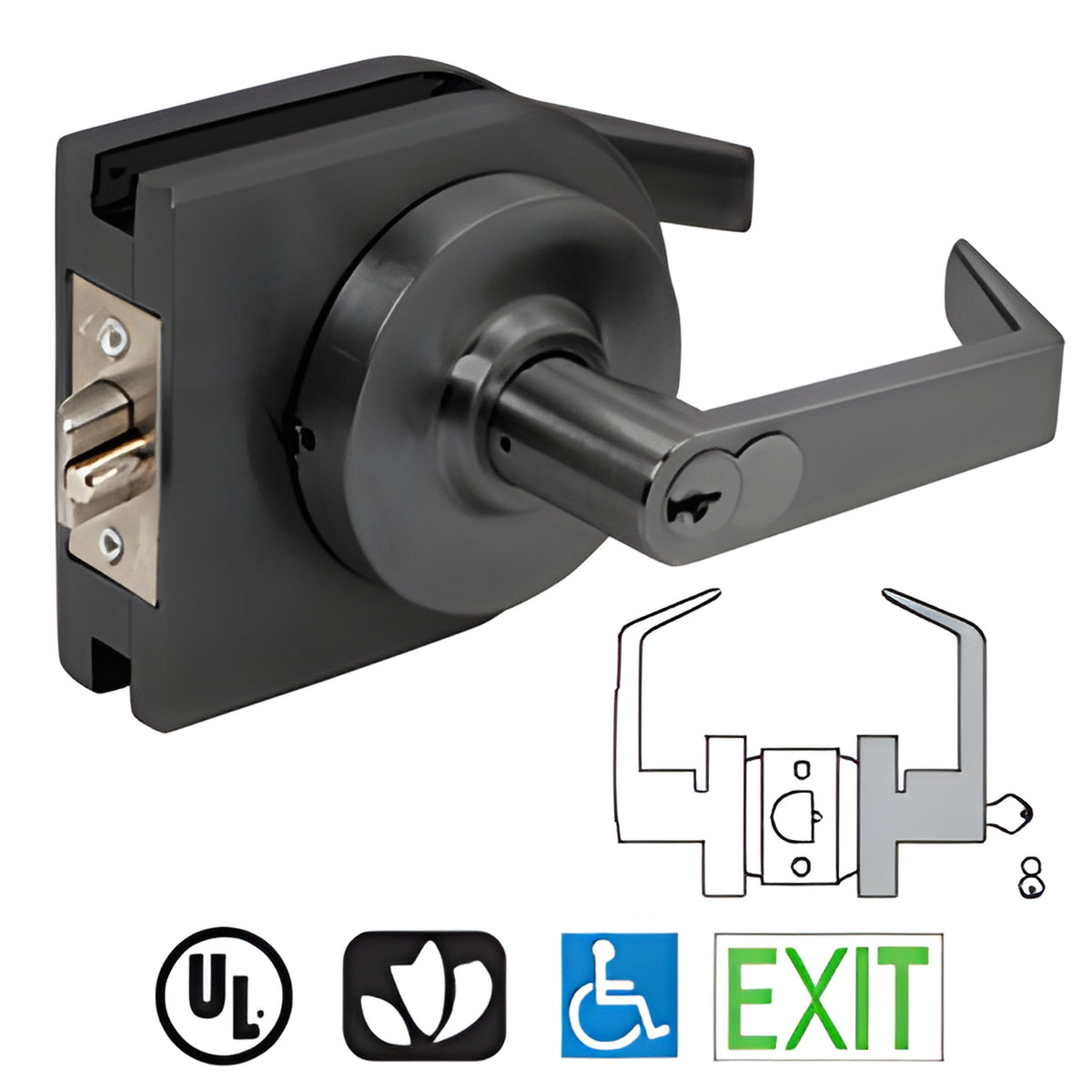

CRL Lever Lock Housings (SKU: LH72MBL) are easy-to-install and include the housing plus lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included. These lever lock housings for glass doors provide a low-profile, high-security solution for commercial and architectural glass entryways.
- ANSI A156.2 Grade 1. UL10C and UBC 7.2 for positive pressure
- ANSI A117.1 and A.D.A. compliant for barrier-free accessibility
- C-UBC California Amended Uniform Building Code – 2001
- NFPA-80 National Fire Protection – 1999
- NFPA-101 National Fire Protection – Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template are included.
For secure, low-profile lever lock housings for 3/8" or 1/2" glass doors (LH72MBL), contact CRL or add to cart to order today.
