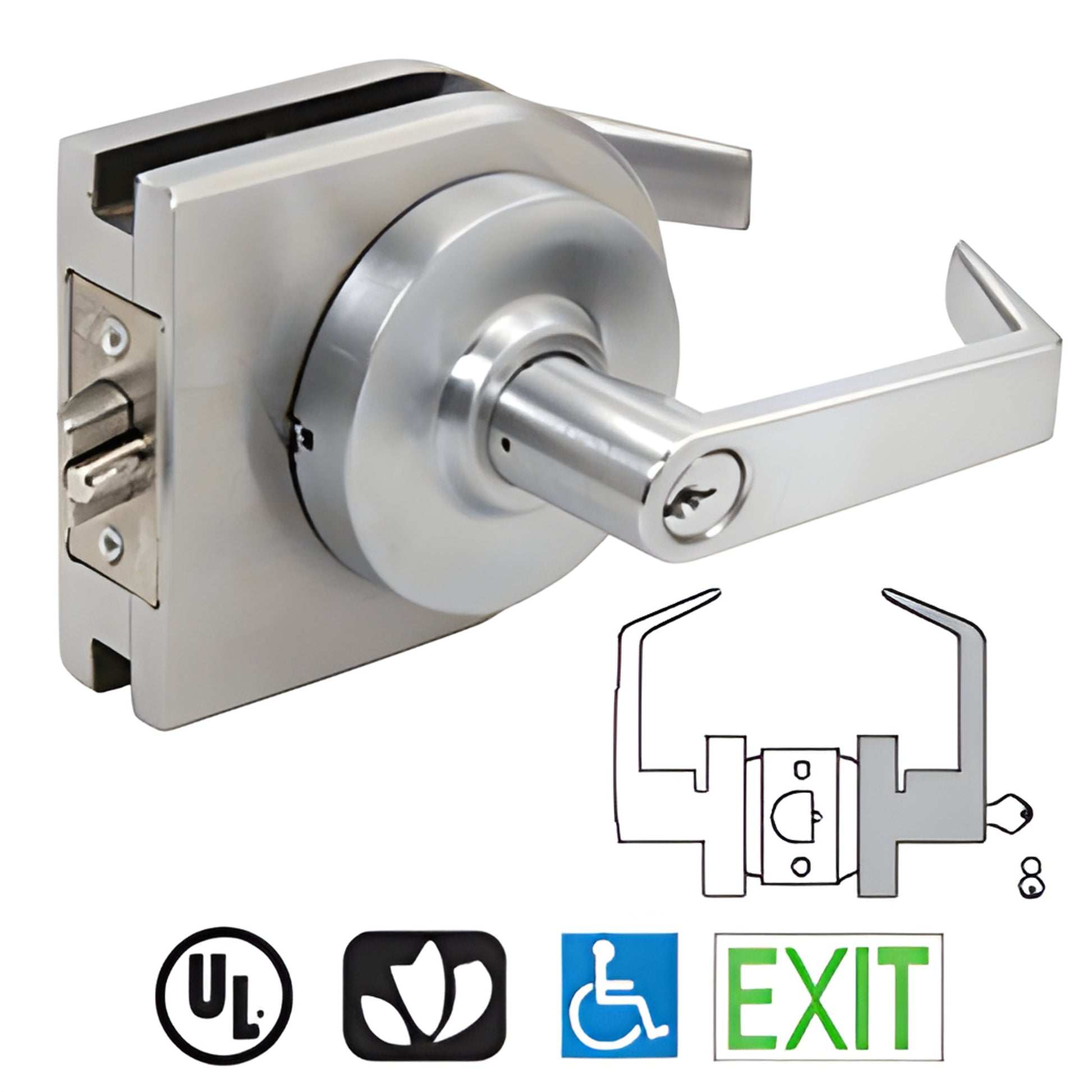

CRL Brushed Stainless Steel Grade 1 Storeroom Lever Lock Housing
Item# LH70BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Cover Style
Round
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
- Low profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left or right glass doors
- Five architectural finishes available
- Four function options
CRL's Lever Lock Housings (SKU: LH70BS) are easy to install and include the housing, lever lockset, and an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and storeroom models accept either a Schlage® 'C' 6-pin keyway or 7-pin Small Format Interchangeable Cores (SFIC). Ideal for commercial glass doors where a low-profile, reversible glass door lever lock housing is needed.
Key compliance and standards:
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
• ANSI A117.1 and ADA for barrier-free accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Find the LH70BS Lever Lock Housing for low-profile glass door applications—order now or contact CRL for specifications and lead times.
