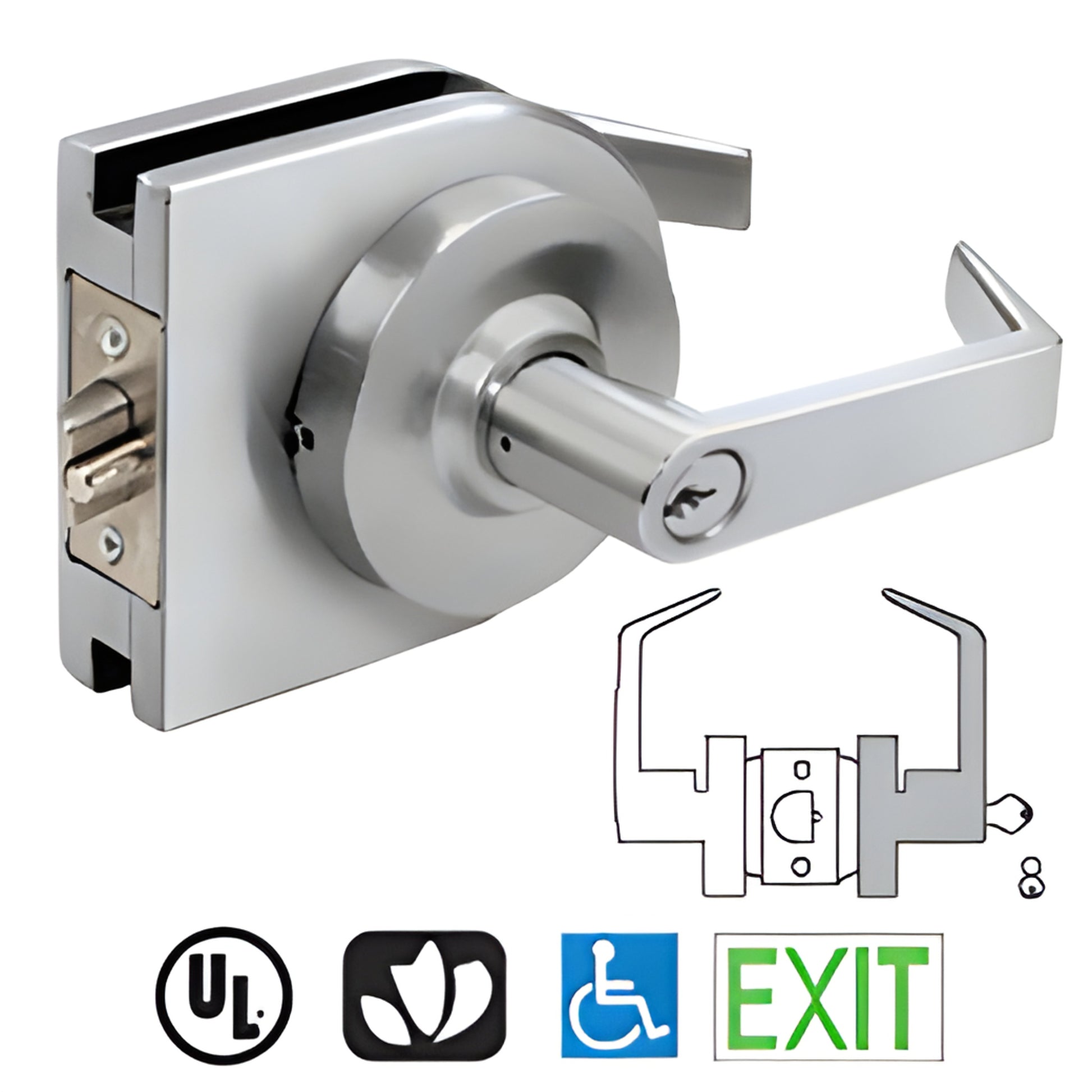

CRL Satin Anodized ANSI Grade 1 Storeroom Lever Lock Housing
CRL Satin Anodized ANSI Grade 1 Storeroom Lever Lock Housing
Regular price
$282.92 CAD
Regular price
Sale price
$282.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH70SA
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Low profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible
- Five architectural finishes available
- Four function options
- Compatible with monolithic tempered glass
CRL's Lever Lock Housings (SKU: LH70SA) are easy-to-install and include the housing plus lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass—ideal for glass storefronts and interior glass doors. Entrance and Storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included, making this a complete lever lock housing solution for commercial glass doors.
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Order the LH70SA lever lock housing for glass doors today to get a durable, code-compliant solution for commercial glass installations.
