CRL
CRL Brushed Stainless 90° Heavy-Duty 2V Column Spider Glass Fitting
Item# PMH2V90BS
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |

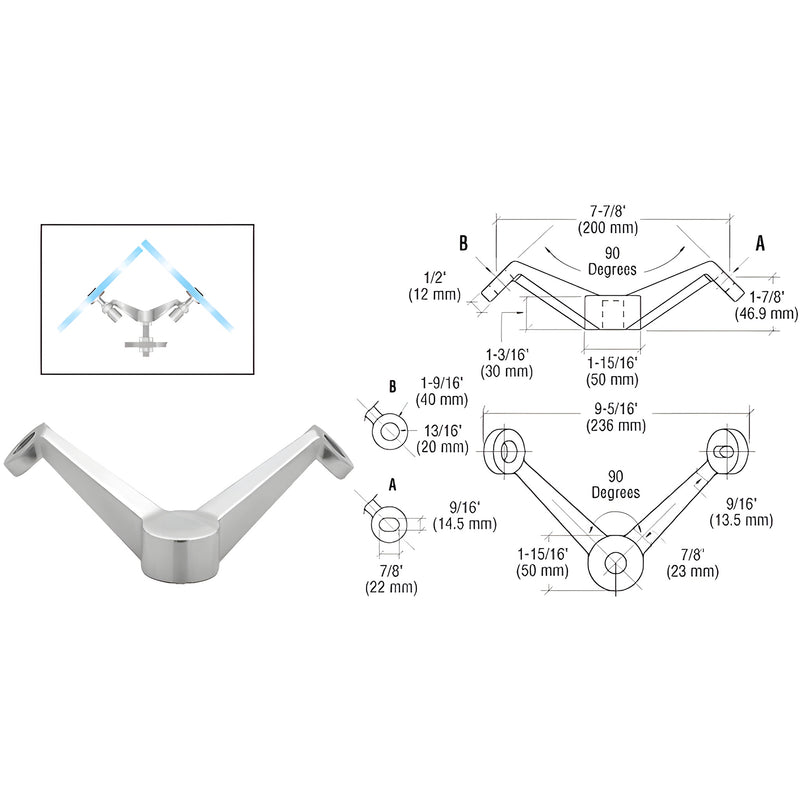

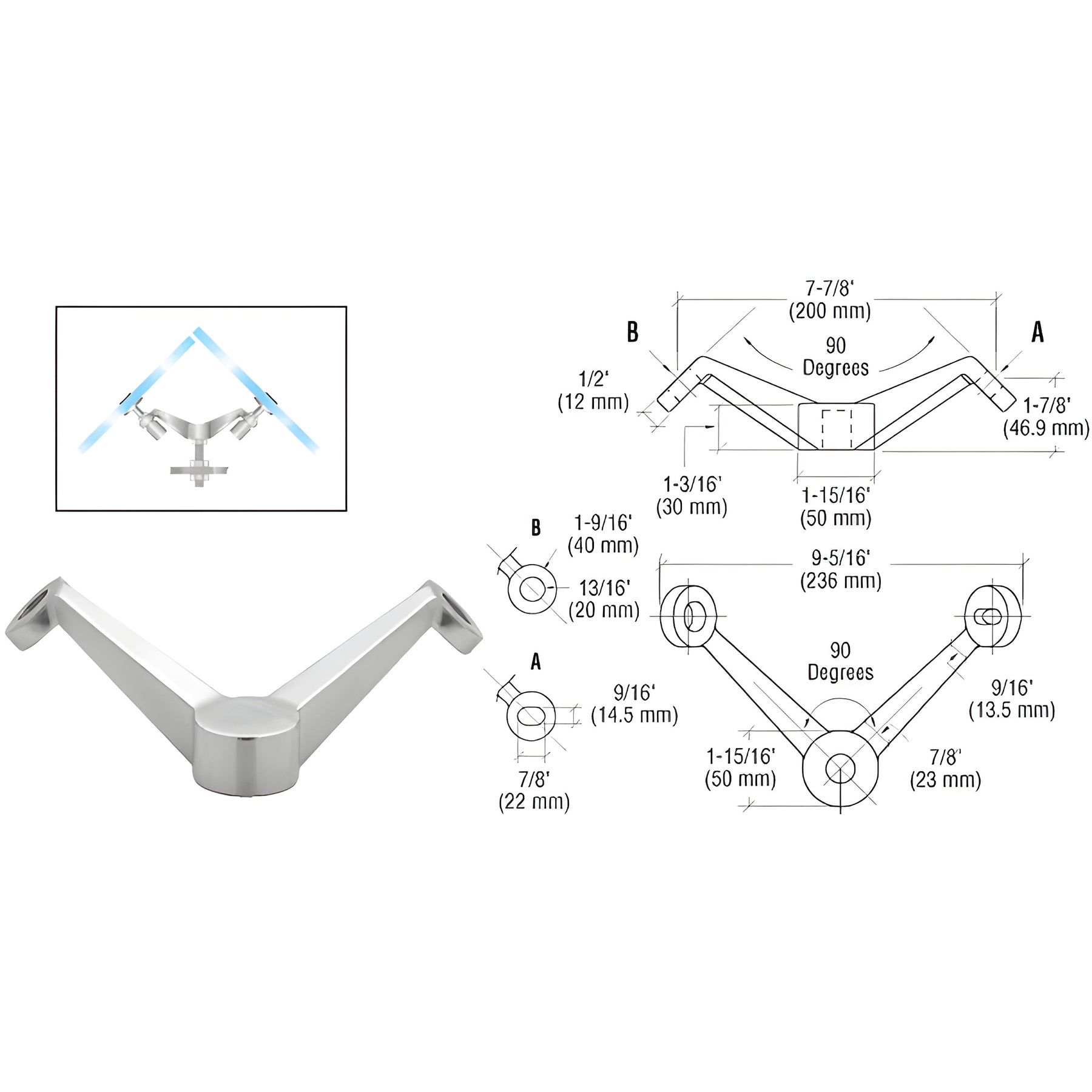

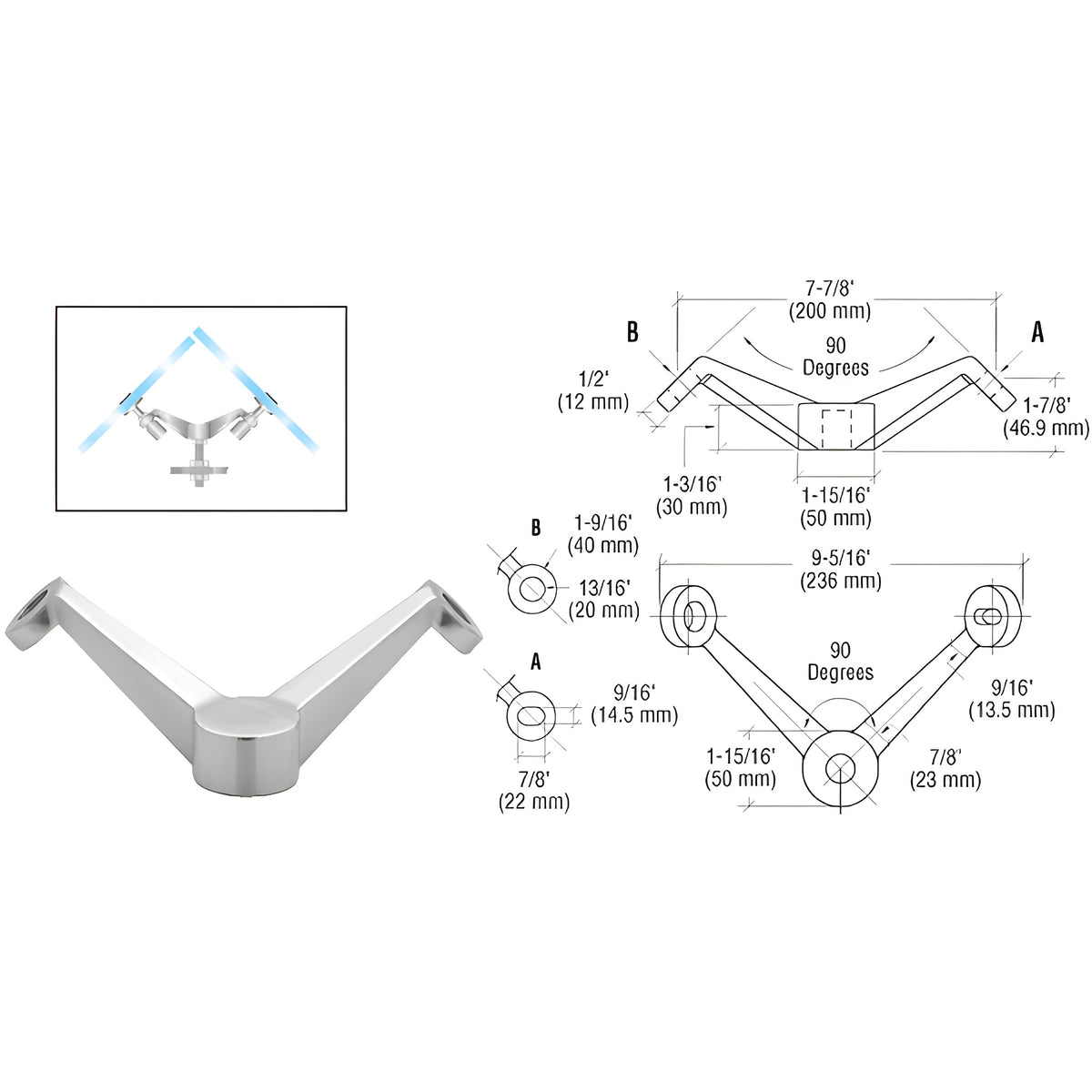

- For use with glass up to 1-1/16" (27 mm)
- Glass attachments are sold separately
- Complete with hardware to mount to post or column
- Use monolithic tempered glass
This CRL Double Arm Fitting (SKU: PMH2V90BS) secures two 90° glass panels at the top or bottom of a structural corner post. Includes a 16 x 99.5 mm (3-7/8") stainless steel threaded stud plus three matching nuts and washers. Replacement stud set is available.
For companion fittings use Cat. No. PMH490BS or PMH490PS.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation. Colors can vary depending on your monitor's settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Key differentiator: Durable stainless steel double-arm design for secure 90° corner glass installations — ideal for frameless glass railing and glass corner post applications. Buy or inquire about PMH2V90BS today.
