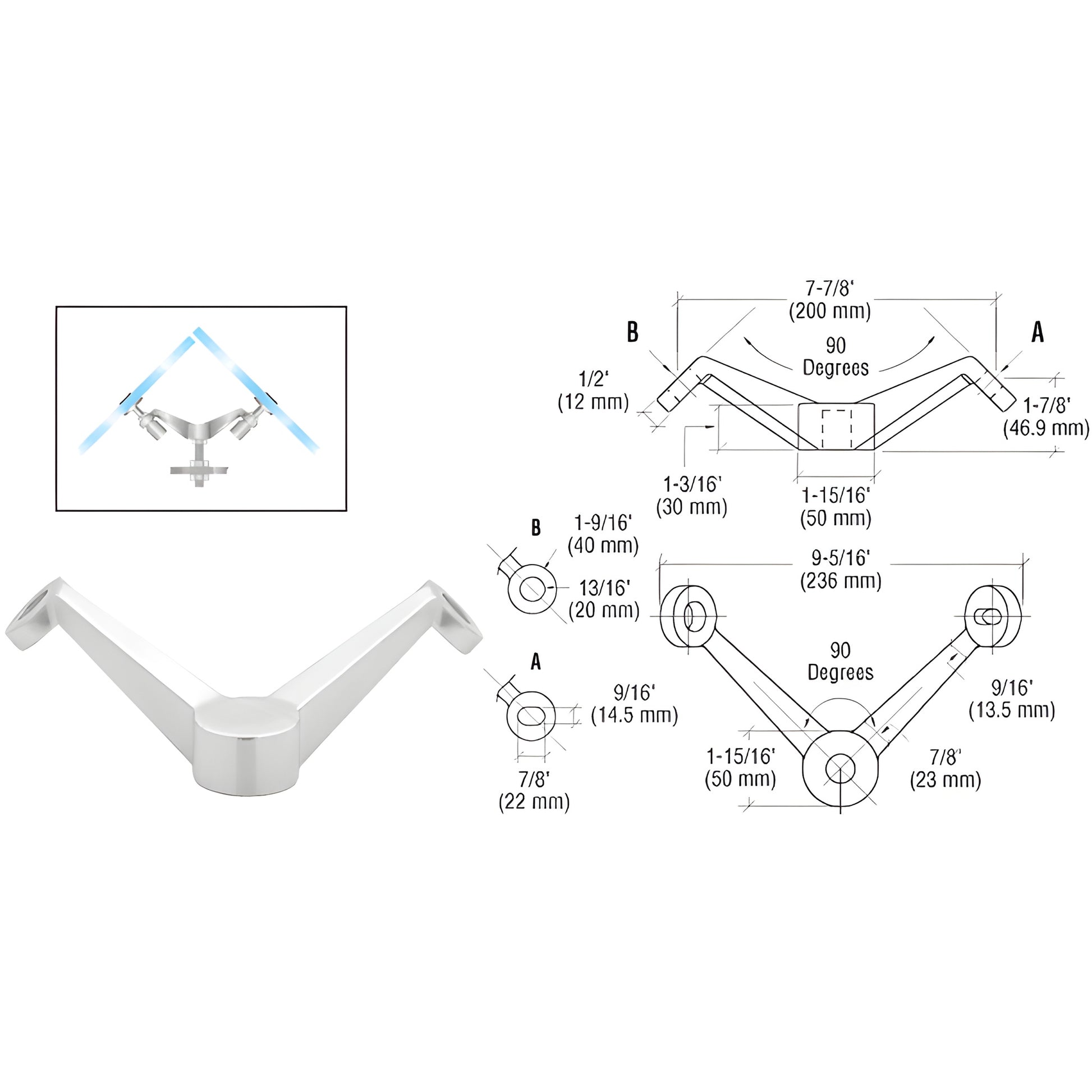

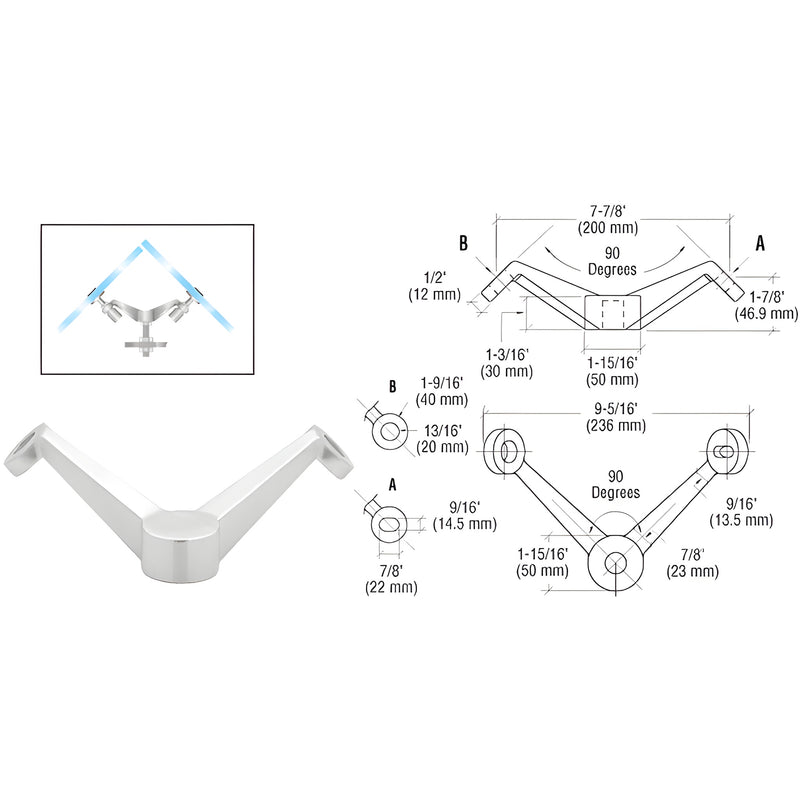

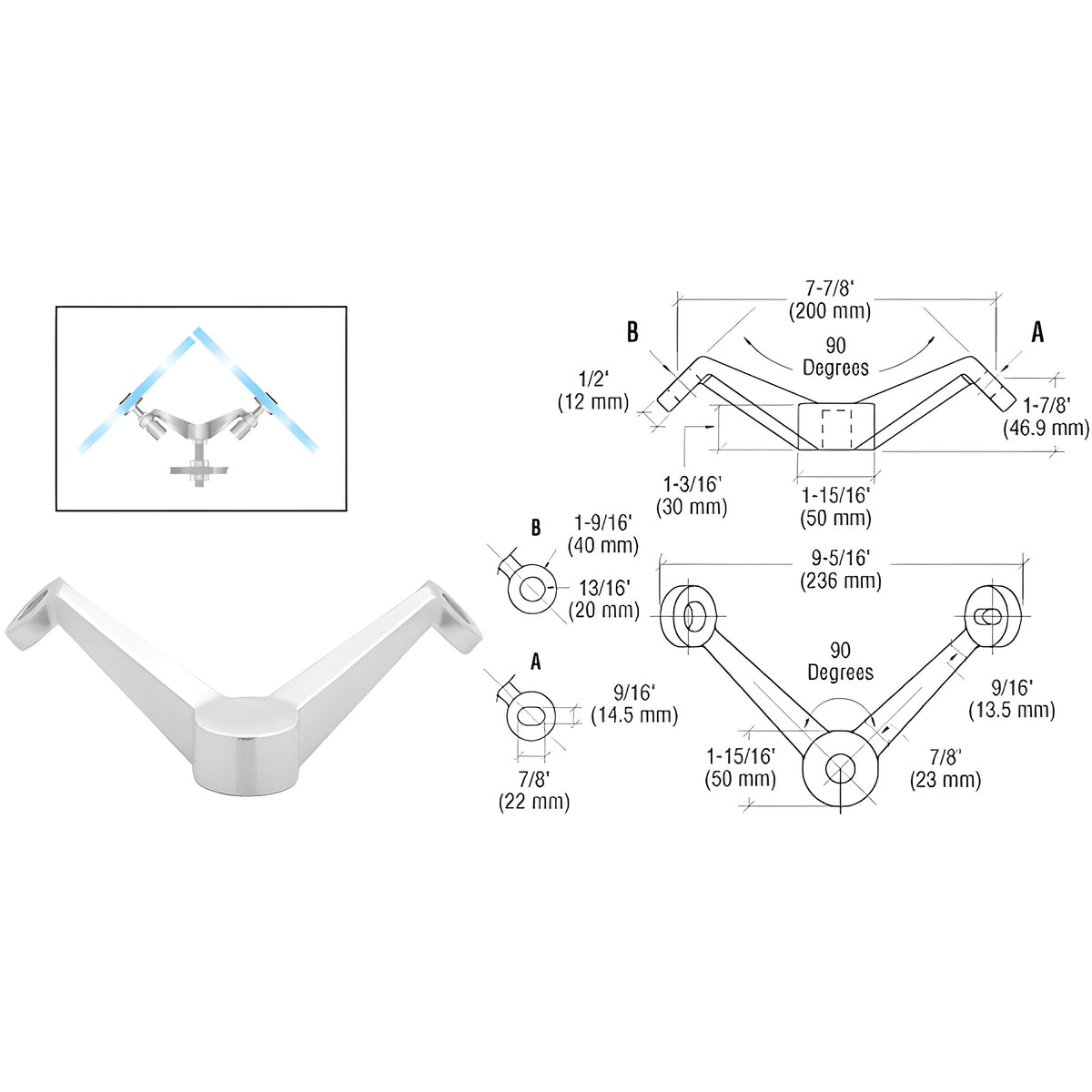

CRL Polished Stainless Heavy Duty 90 Degree 2V Arm Column Mount Spider Fitting

The CRL Double Arm Fitting is designed for use with glass panels up to 1-1/16" (27 mm) and is ideal for attaching two 90-degree glass panels at the top or bottom of a structural corner post.
This fitting includes a 16 x 99.5 mm (3-7/8") stainless steel threaded stud, along with three matching nuts and washers, with a replacement stud set available.
For optimal performance, use monolithic tempered glass and note that glass attachments are sold separately.
Enhance your installation with companion fittings, such as Cat.
No.
PMH490BS or PMH490PS, and ensure long-lasting quality with periodic maintenance of the stainless steel.
For more details, consult the Stainless Steel Disclaimer in the Technical References section.
