CRL Brushed Stainless Keyed Door Cylinder for Center Lock/Deadlatch
CRL Brushed Stainless Keyed Door Cylinder for Center Lock/Deadlatch
Regular price
$39.97 CAD
Regular price
Sale price
$39.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DRA50BS
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cylinder Diameter
1-5/32
Cylinder Length
1
Finish/Color
Brushed Stainless Steel
Keyed
Alike
Material
Brass
Ring Thickness
.117
Type
Mortise
Overview
- Solid Brass housing
- 1" length, 5-pin mortise cylinder — 1-5/32" (29.4 mm) diameter
- Compatible with AR MS or DRA cams

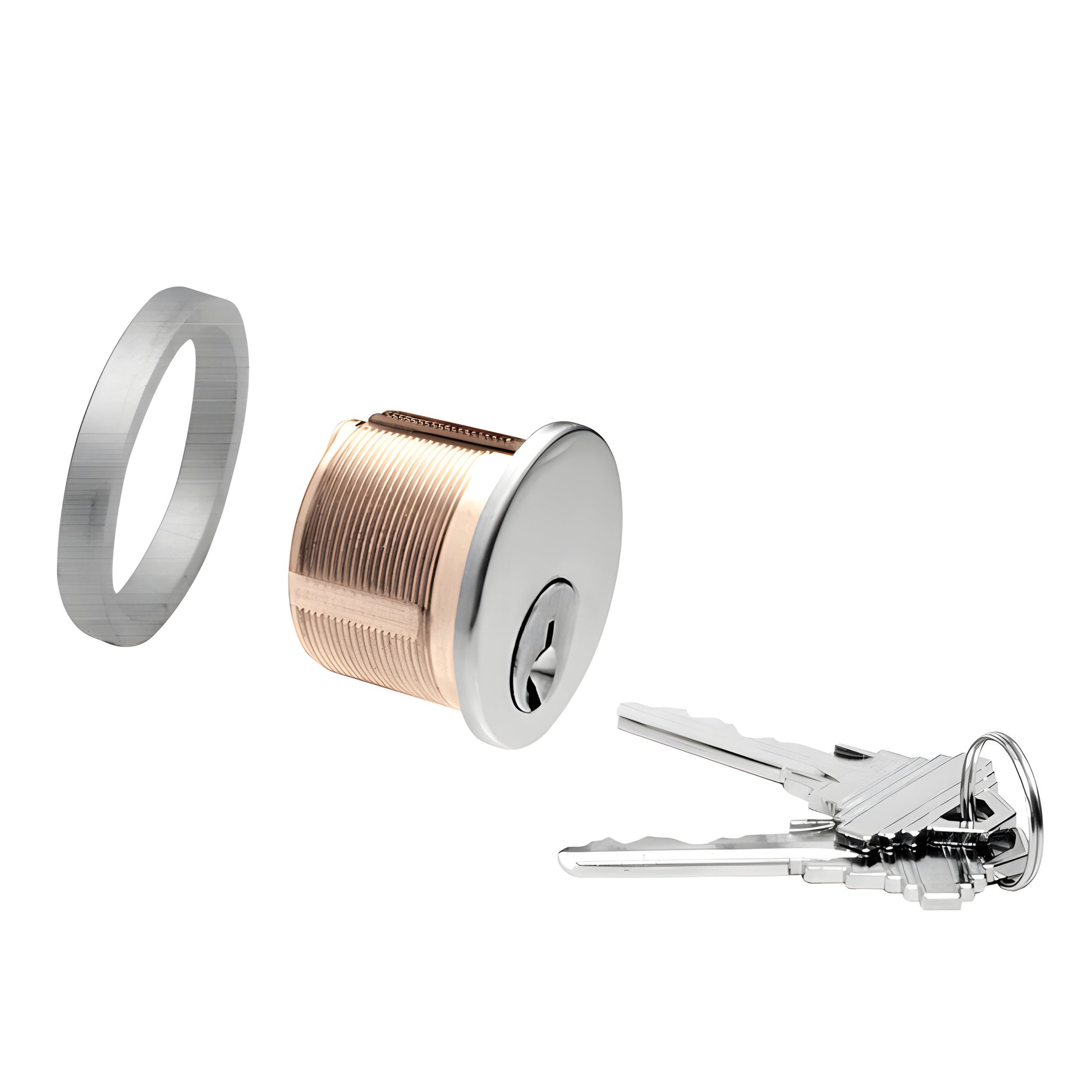

This CRL Single Mortise Key Cylinder (SKU: DRA50BS) features a solid brass housing and a 5-pin core with Schlage® "C" keyway configuration, supplied keyed alike. Cylinder dimensions are 1" (25.4 mm) length and 1-5/32" (29.4 mm) diameter. Includes a .117" (3 mm) cylinder ring and supports AR MS or DRA cams. Ideal for locksmiths and commercial mortise lock retrofit applications seeking a durable, keyed-alike replacement cylinder.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Key features: solid brass 5-pin cylinder, Schlage C keyway keyed alike, 1" length, 1-5/32" diameter, includes 3 mm cylinder ring, compatible with AR MS / DRA cams.
