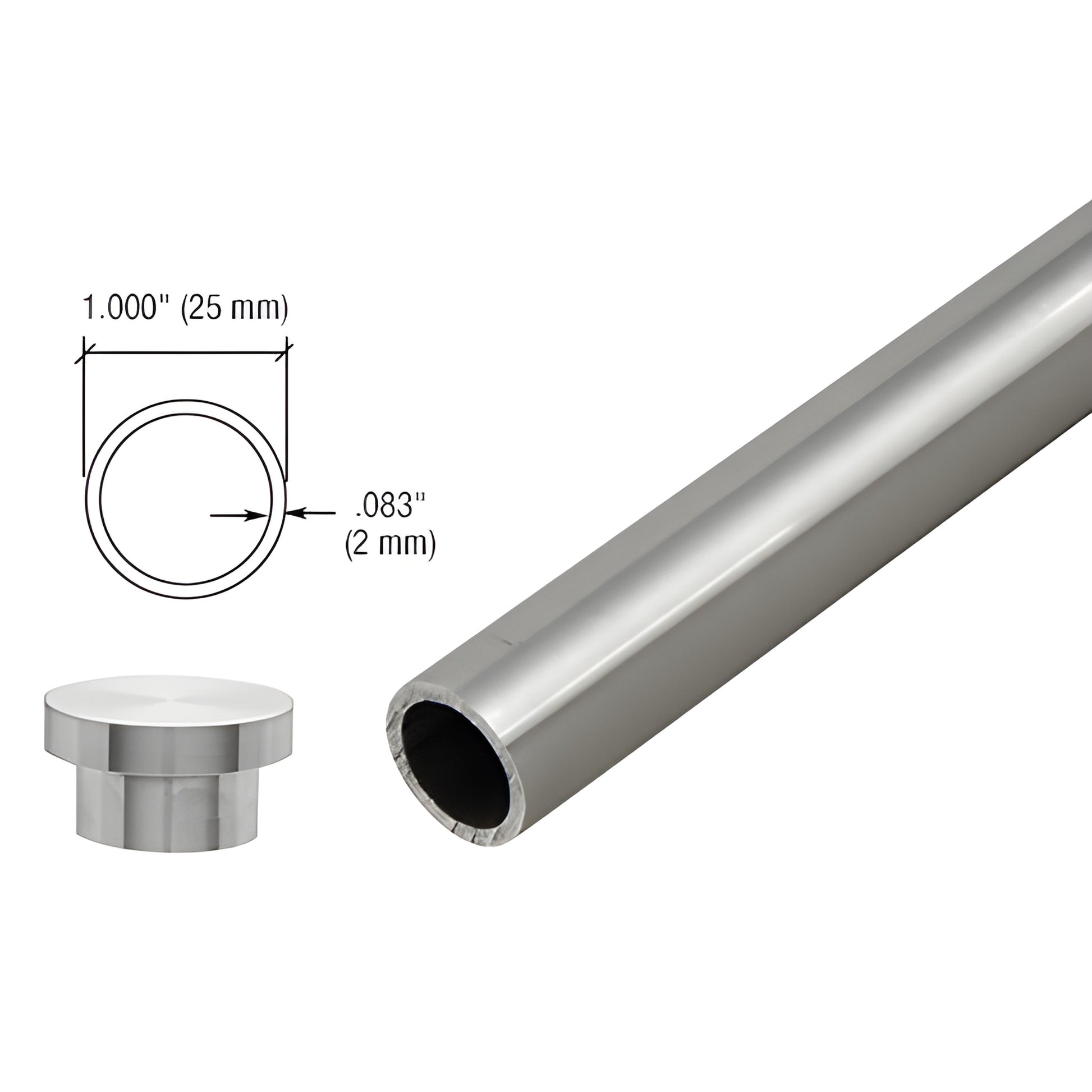

CRL Laguna Brushed Stainless Sliding Shower Track with End Caps

• Supports sliding doors and sliding glass door systems
• Includes two LS104CAP end caps

This CRL Top Sliding Tube (SKU: LS104BS) supports sliding doors when attached to walls using Cat. No. LS302BS Top Sliding Tube Wall Mount Clamps, or to glass panels using Cat. No. LS303BS Top Sliding Tube Glass Mount Clamp Fittings. It is ideal for frameless sliding glass door installations and other top-track sliding door applications.

SYSTEM LIMITATIONS:
The following recommended system limits help ensure safe, reliable performance:

• Minimum panel width: 37-13/16" (960 mm)
• Maximum panel width: 53-9/16" (1.36 m)
• Maximum panel weight: 220 lbs (100 kg)
• Panel height should not exceed 2.5 times the panel width
• Maximum available top track length: 104" (2.64 m)

Please contact our Technical Sales Department if any of these limitations cannot be met.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and follow local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.

NOTE: These fittings are not to be used with laminated glass.

Stainless Steel Advisory:

For pricing, availability, or technical support for LS104BS top sliding tube systems, contact CRL or your local distributor today.
