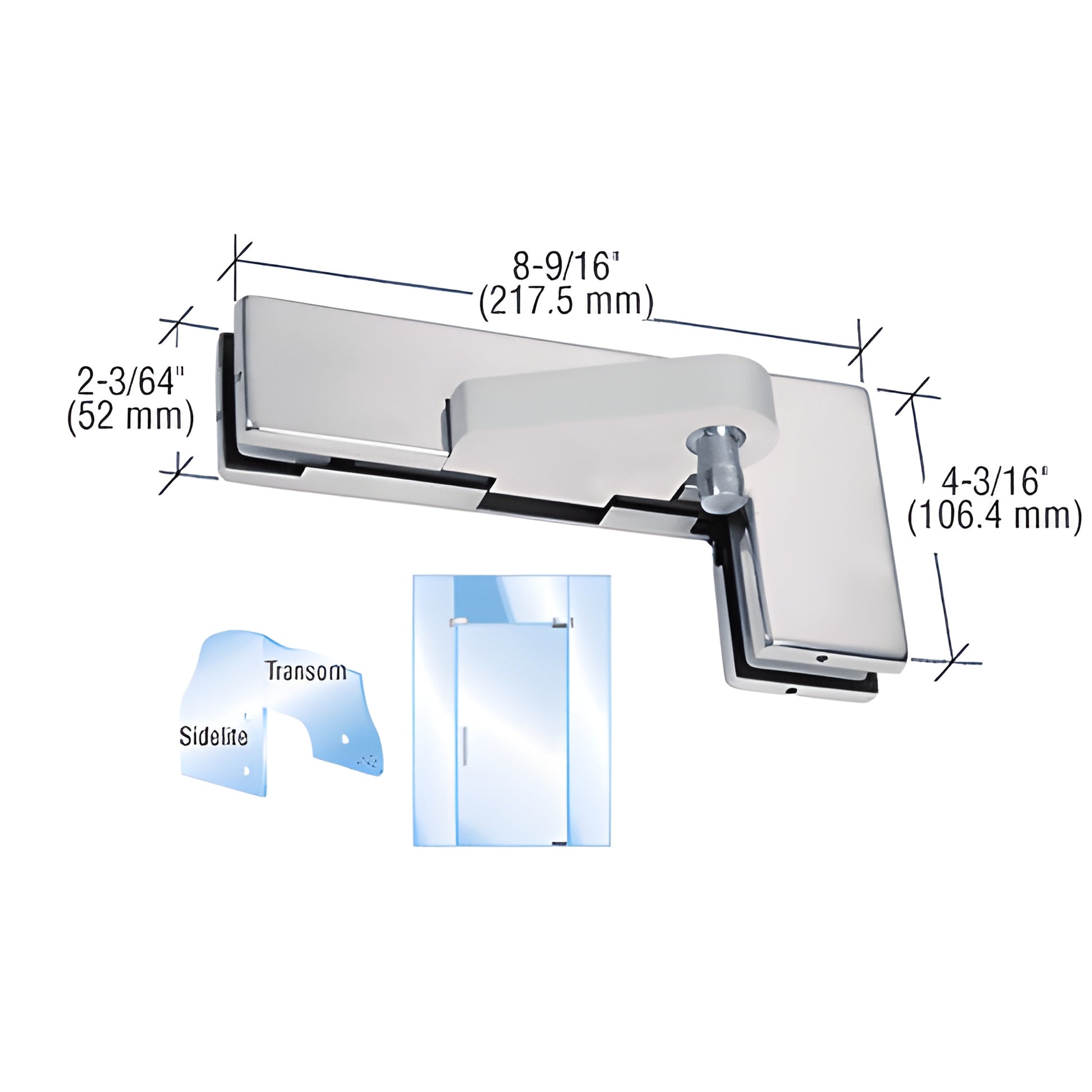

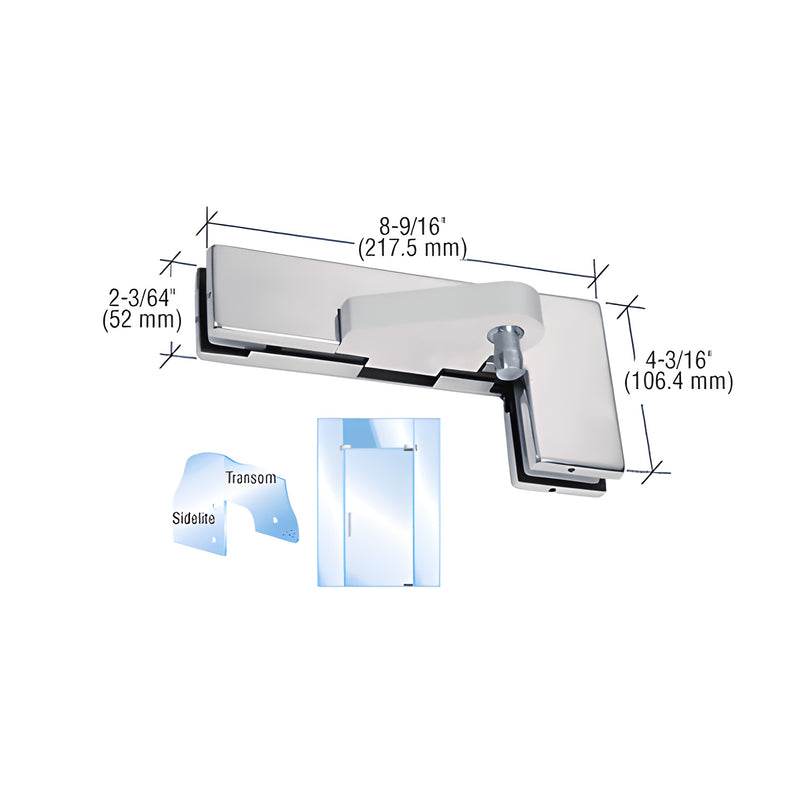

CRL Brushed Stainless Left Offset Transom Patch Fitting for Sidelite
CRL Brushed Stainless Left Offset Transom Patch Fitting for Sidelite
Regular price
$187.02 CAD
Regular price
Sale price
$187.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0PF40LBS
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Mounting Type
Sidelite
Series
Offset
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Allows for 180° door swing
- Left- and right-handed configurations
- Compatible with CRL 3/4" (19 mm) offset arm bottom door rails with no alterations
The CRL Sidelite Mounted Transom Offset Patch Fitting (SKU: 0PF40LBS) is a heavy-duty glass door hardware solution engineered for sidelite-mounted transom installations and offset arm bottom door rails. Designed for 3/8" or 1/2" glass, this offset patch fitting enables a full 180° door swing and is available in brushed or polished stainless steel for a durable, architectural finish.
INCLUDES:
- High-density cast body
- Cover plates in your chosen finish (brushed or polished stainless steel)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and installation instructions
SPECIFICATIONS:
For Use With:
- 0PF20R and 0PF20L top door patches
- Top door patch systems and other offset patch fittings
Glass Fabrication Required:
- Three 3/4" (19 mm) diameter holes and a corner notch
Comes With: Template and instructions
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for maintenance guidance.
Ideal for commercial and architectural glass door applications requiring offset arm compatibility and full 180° swing. Order the CRL Sidelite Mounted Transom Offset Patch Fitting (SKU: 0PF40LBS) today.
